Woodworking cabinet assembly machine
Product Introduction

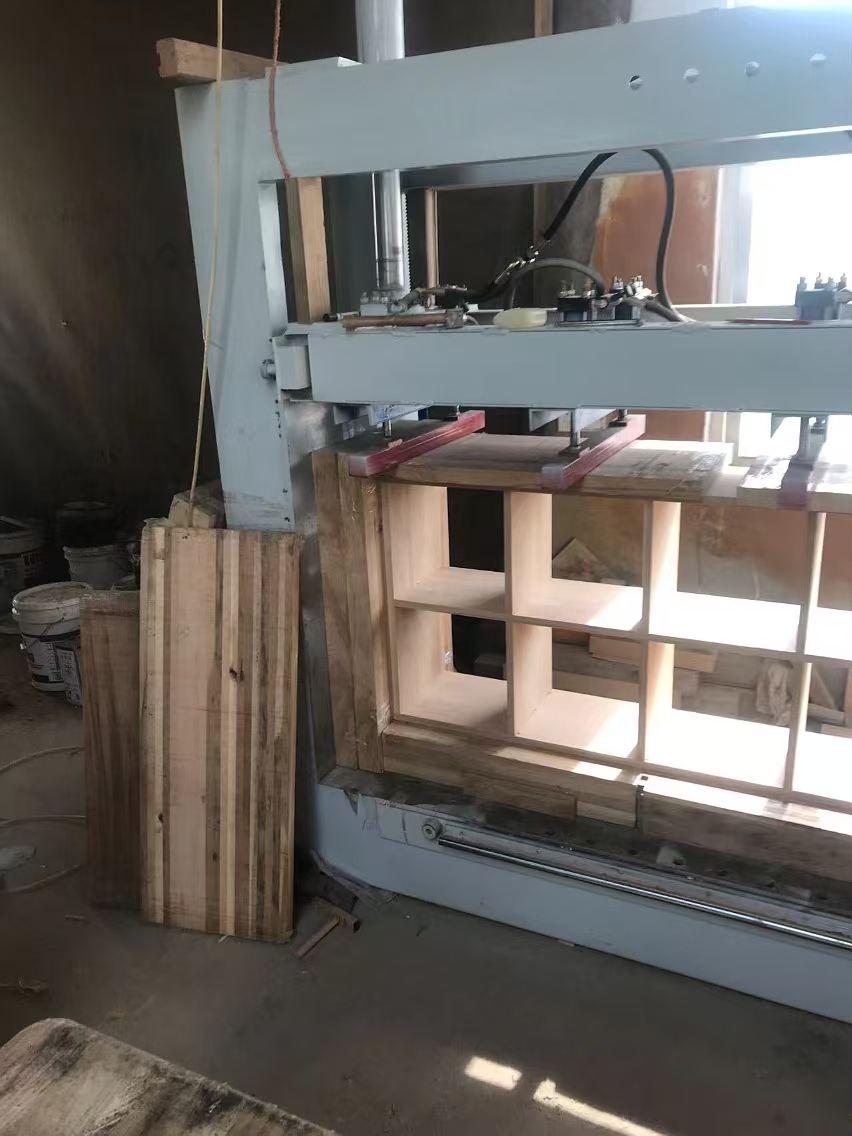

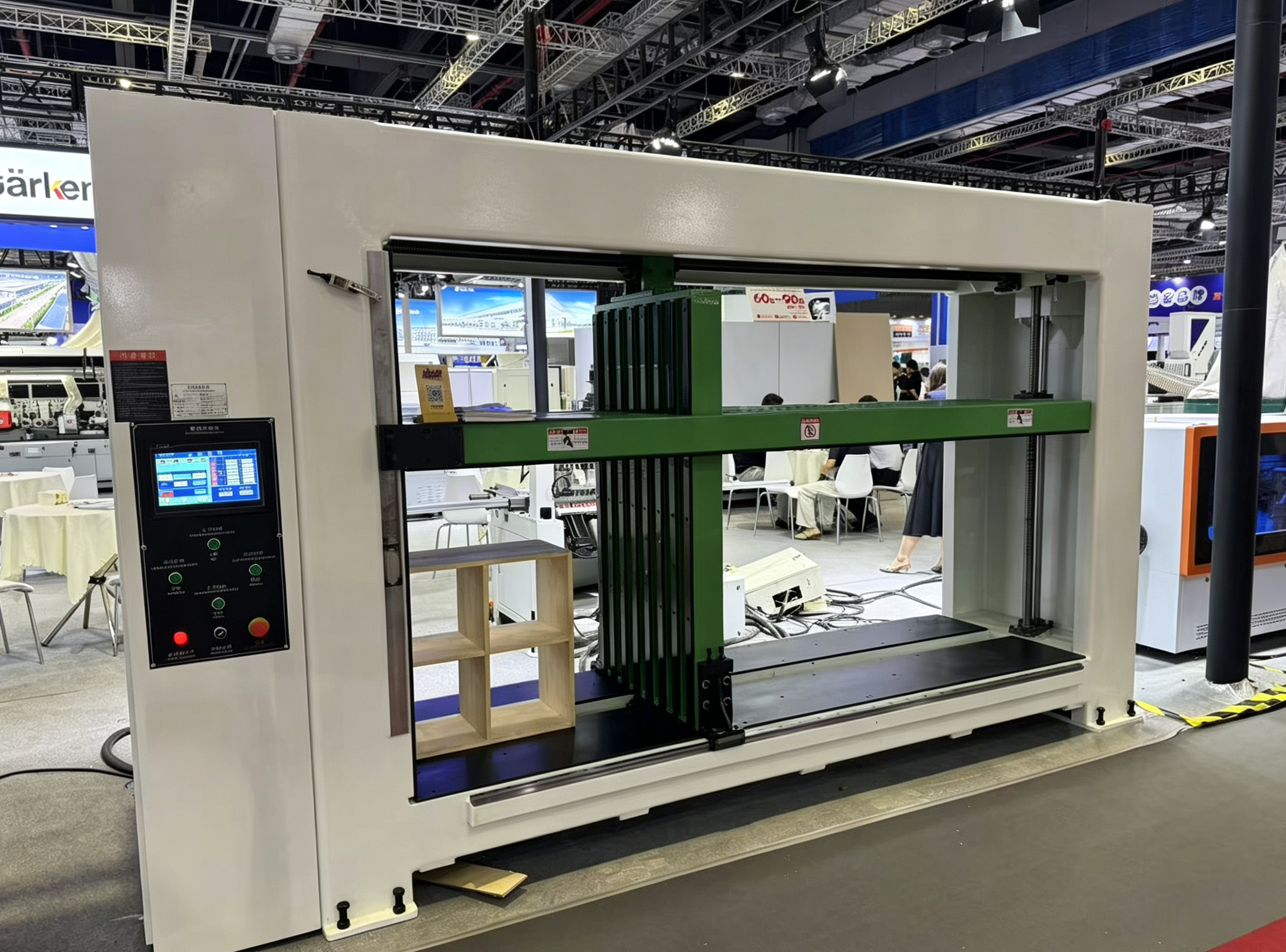

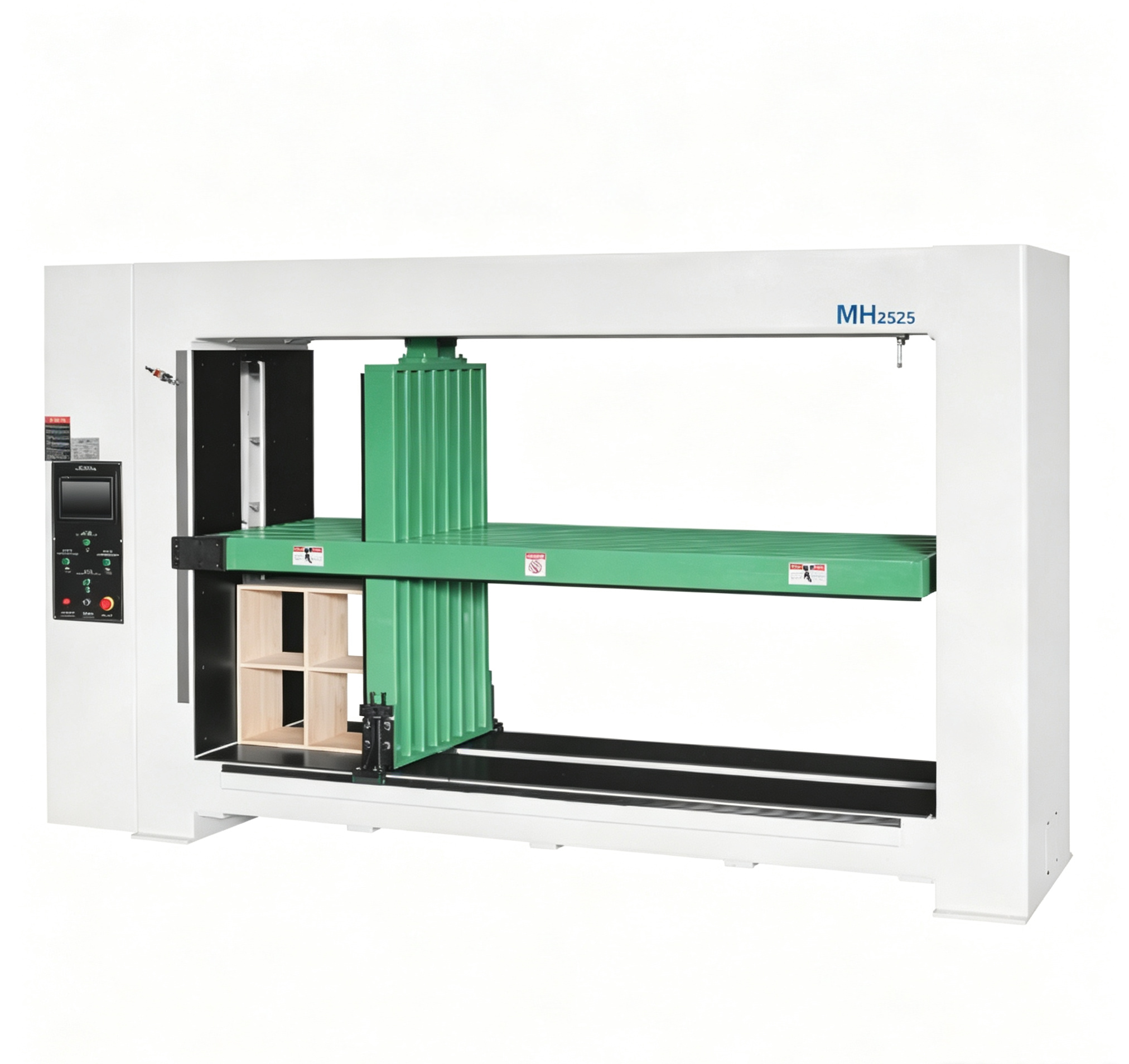

Our Cabinet Assembly Machine is specifically designed for the rapid and accurate assembly of panel furniture cabinets, including wardrobes, kitchen cabinets, and bookcases. It streamlines the entire joining process, eliminating the inconsistencies of manual assembly.

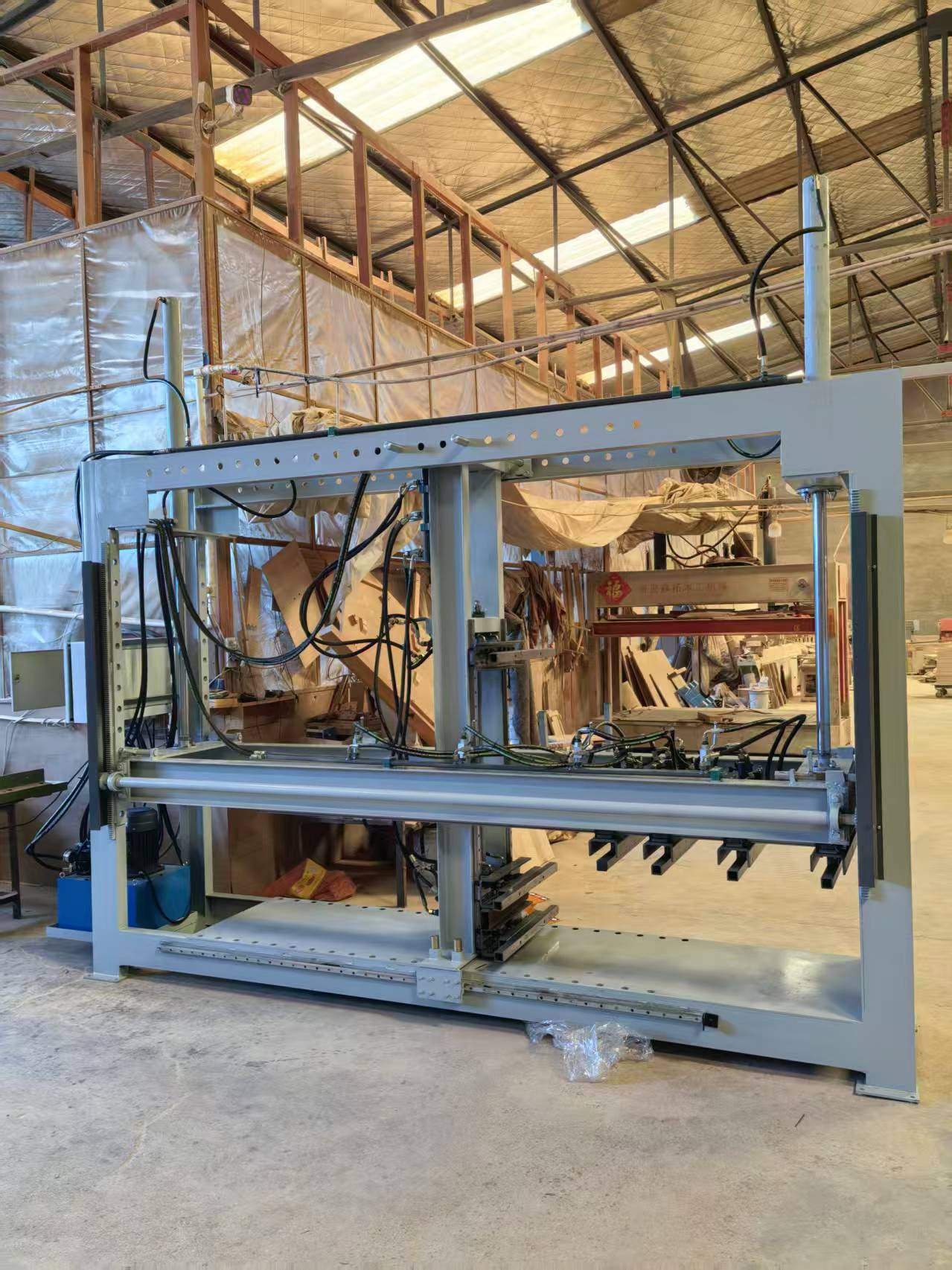

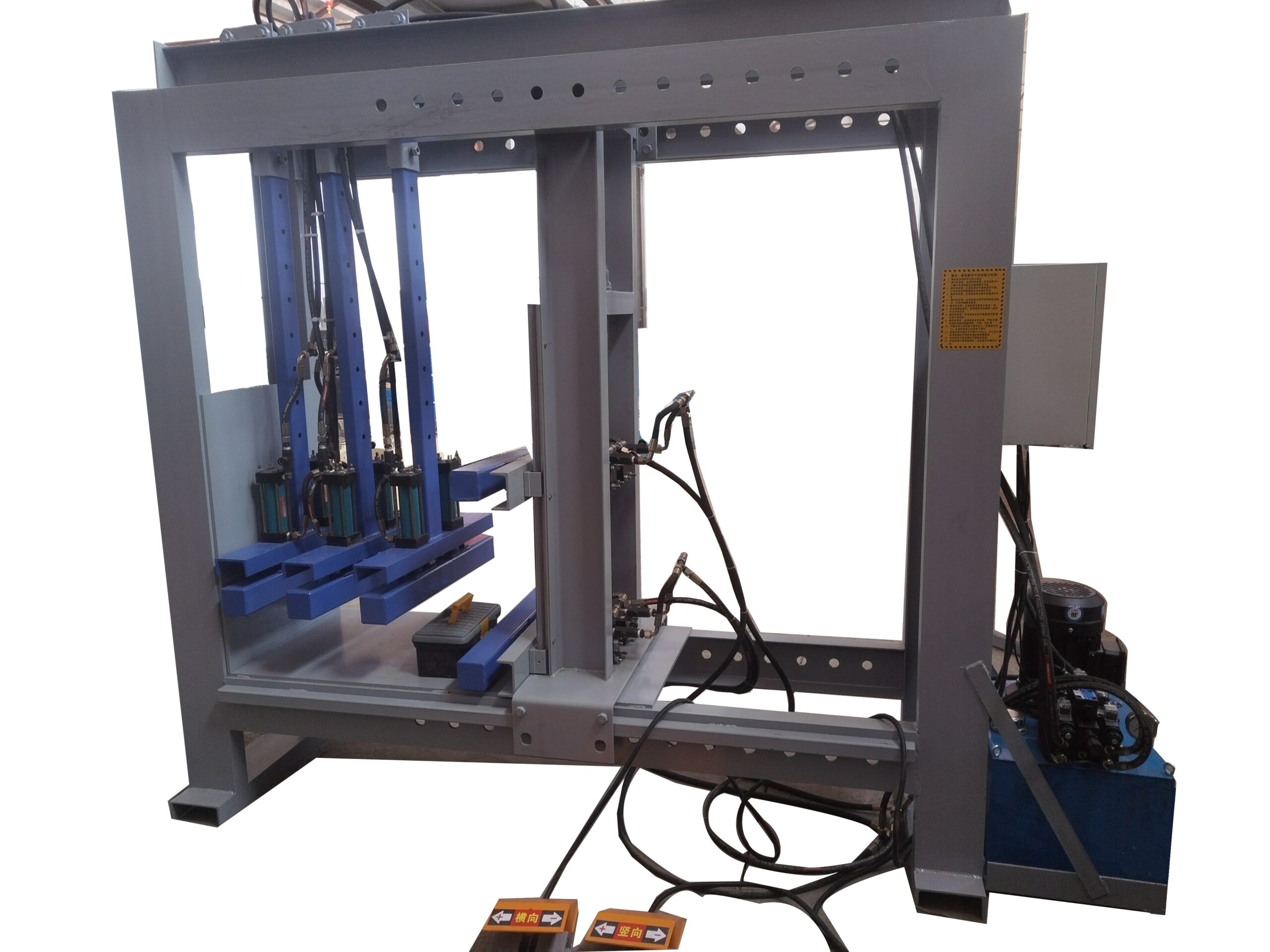

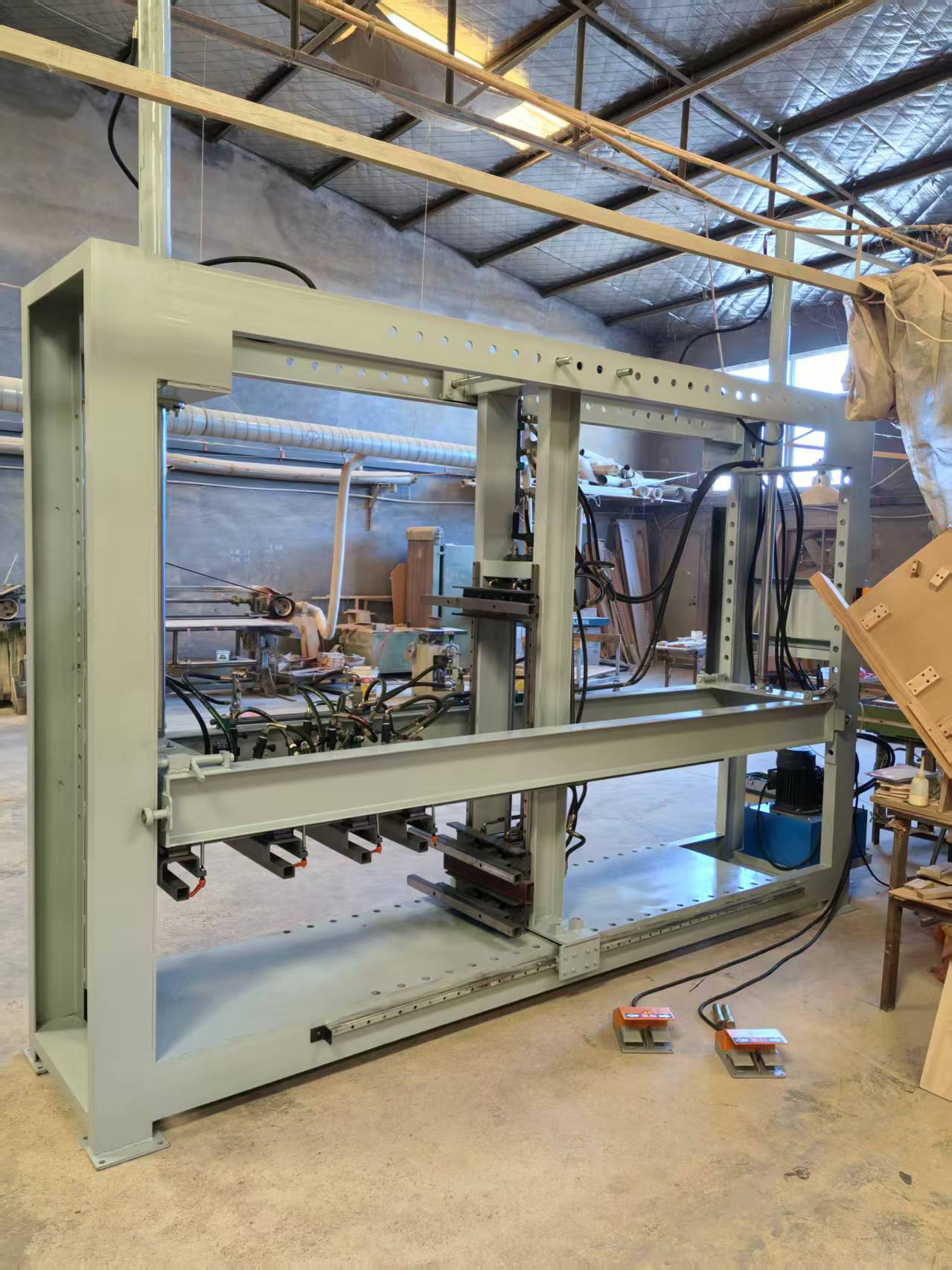

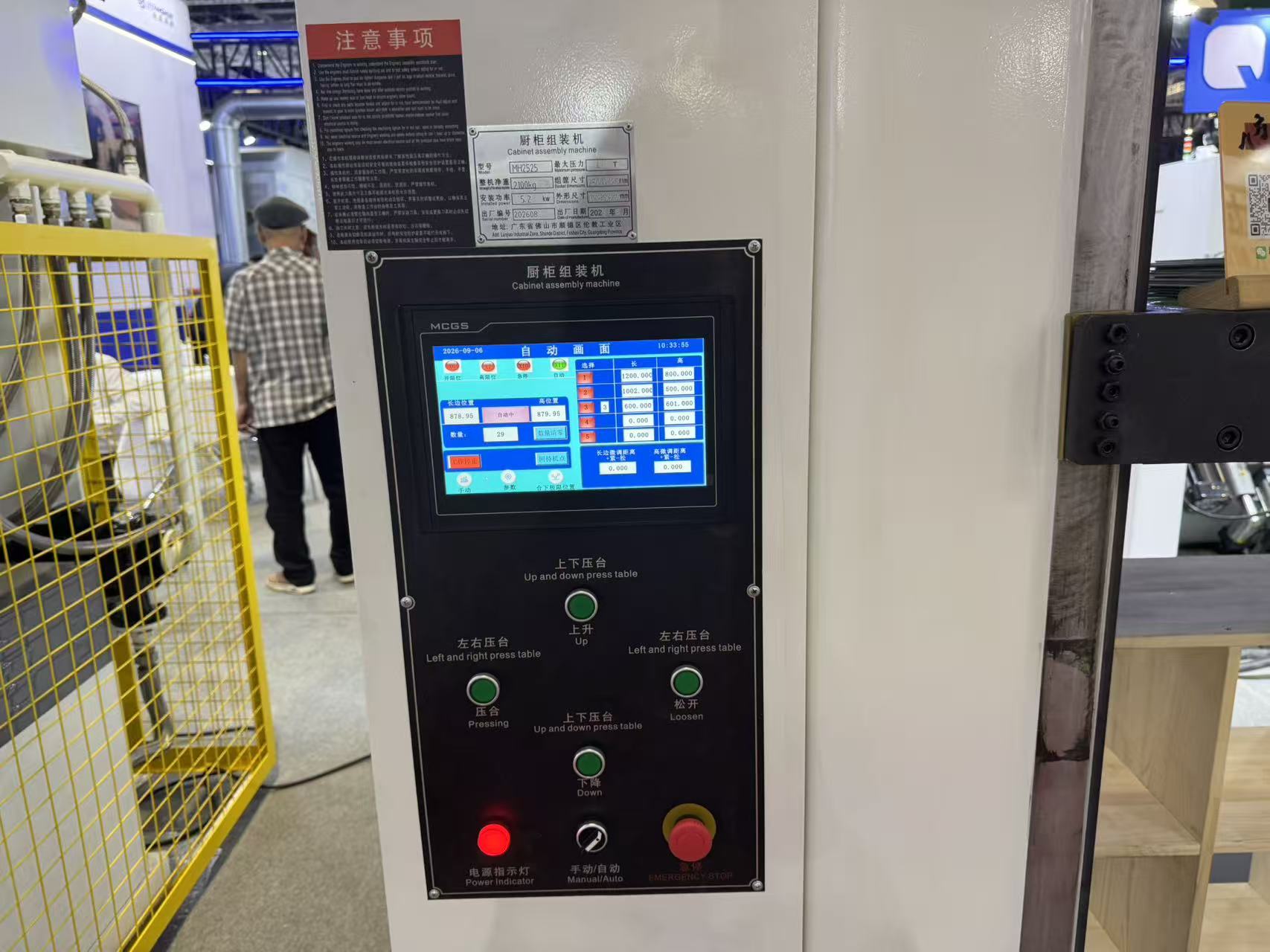

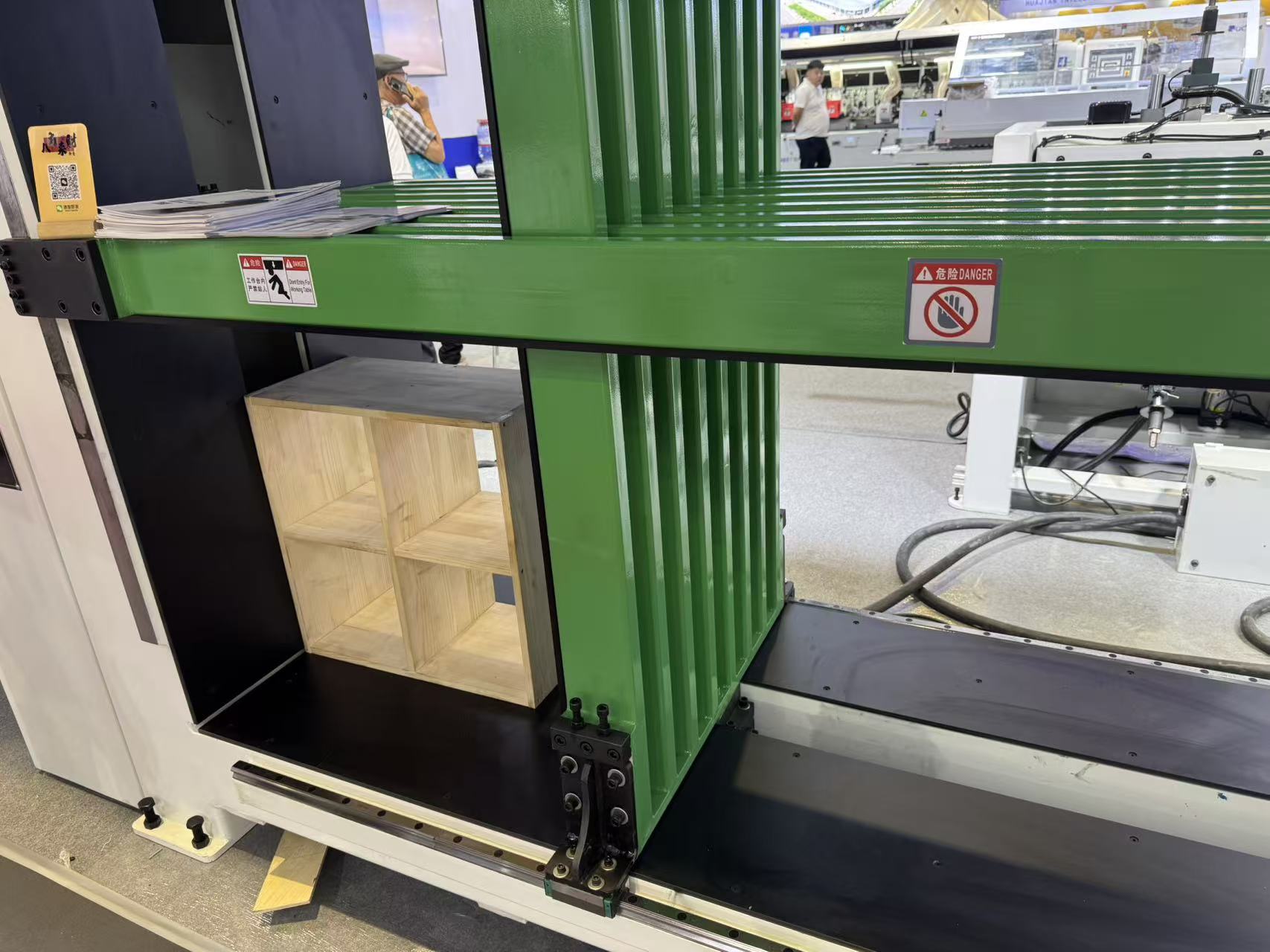

The machine features a heavy-duty steel frame with precision alignment guides, ensuring that side panels, back panels, and shelves are perfectly squared every time. Pneumatic clamping units apply uniform pressure across all joints, preventing warping or gaps. An intuitive control panel allows operators to adjust clamping force and assembly size for different cabinet dimensions in seconds.
Description
Cabinet Assembly Machine – Pneumatic clamping, perfect squaring, adjustable sizes. Speeds up production with consistent quality.
| Model | HS2407 |
| Max. combinad length | 350-2400mm |
| Max.combinad width | 700mm |
| Max.combinad height | 350-1300mm |
| Base thickness | 10mm |
| The number of transverse groups | 4组 |
| The number of vertical groups | 3组 |
| The number of hydrocylinder in one group | 2 |
| The diameter of hydrocylinder | 50 |
| Working height of hydrocylinder | 100 |
| Max. Working Air Pressure | 0.8Mpa |
| Motor Power | 4kw |
| Elevation Height | 800mm |
| Dimensions | 3800×1000×2200mm |
| Weight | 1200kg |
Key benefits include:
Increased Efficiency – Assemble up to 3–4 cabinets per hour with just one operator.
Consistent Quality – Eliminate human error, ensuring 90° corners and flush edges on every unit.
Versatility– Accommodates cabinet widths from 300mm to 1800mm and depths up to 600mm.
Easy Operation – Minimal training required; foot pedal or push-button controls.
Ideal for small to medium-sized furniture workshops and large-scale production lines, this machine reduces labor costs and boosts output. For technical specifications or a custom quote, please contact our sales team
