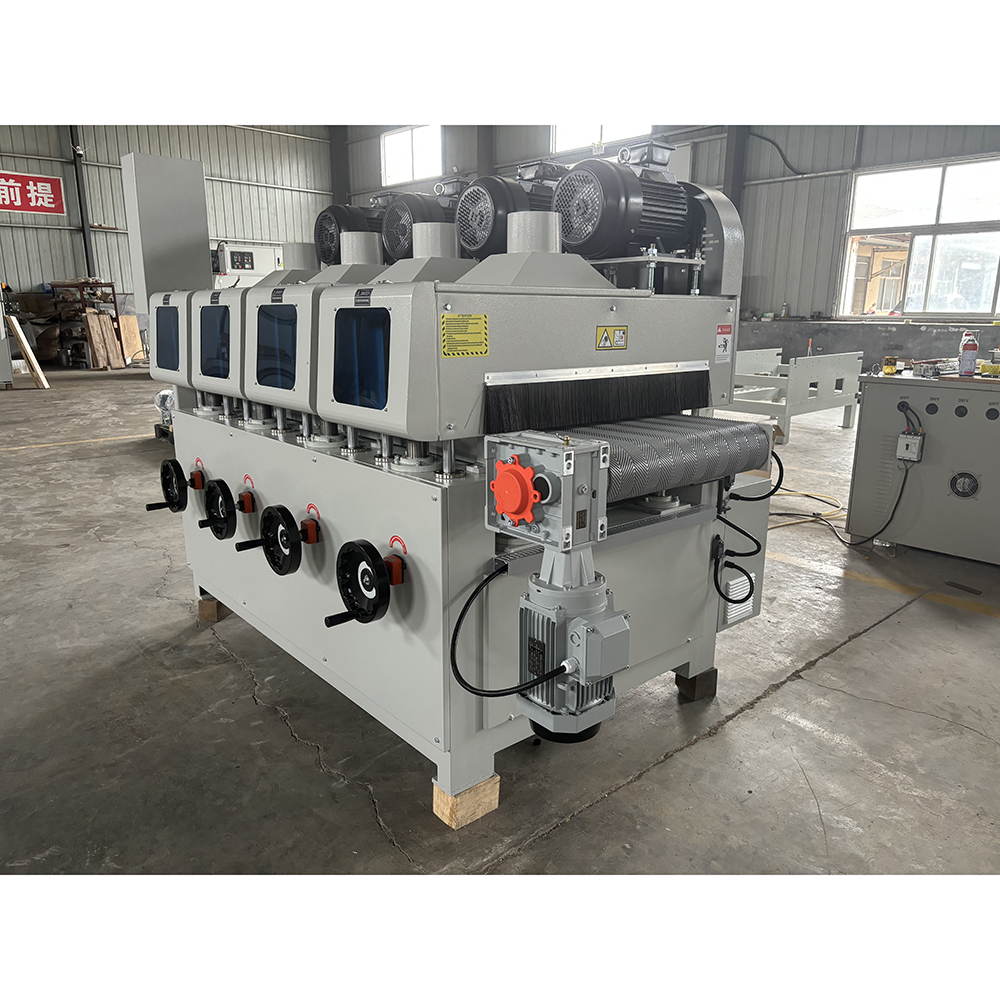

Wire Brush Sanding Machine LZLS600/LZLS1300
This machine is special designed for the flat products which need surface relief drawing result like archaize floor, furniture, table-board, handicraft etc and it’s a new generation products processed by this machine, the flat surface is skid free, stereoscopic and beautiful.
Description
| Model | LZLS600 | LZLS1300 |
| Max. working width | 600mm | 1300mm |
| Max working thickness | 5-90mm | 5-90mm |
| Feeding speed | 5-30m/min | 5-30m/min |
| First unit power | 7.5kw | 11kw |
| Second unit power | 1.1kw*3 | 1.5kw*4 |
| Third unit power | 5.5kw | 7.5kw |
| Fourth unit power | 4kw | 7.5kw |
| Fifth unit power | 4kw | 5.5kw |
| Feeding power | 2.2kw | 4kw |
| Lifting power | 0.37kw | 0.75kw |
| Oscillating power | 60w*5 | 60w*5 |
| Total power | 27.17kw | 42.55kw |
| Overall dimension(LXWXH) | 3500*1650x*1750mm | 4100*2700*1750mm |

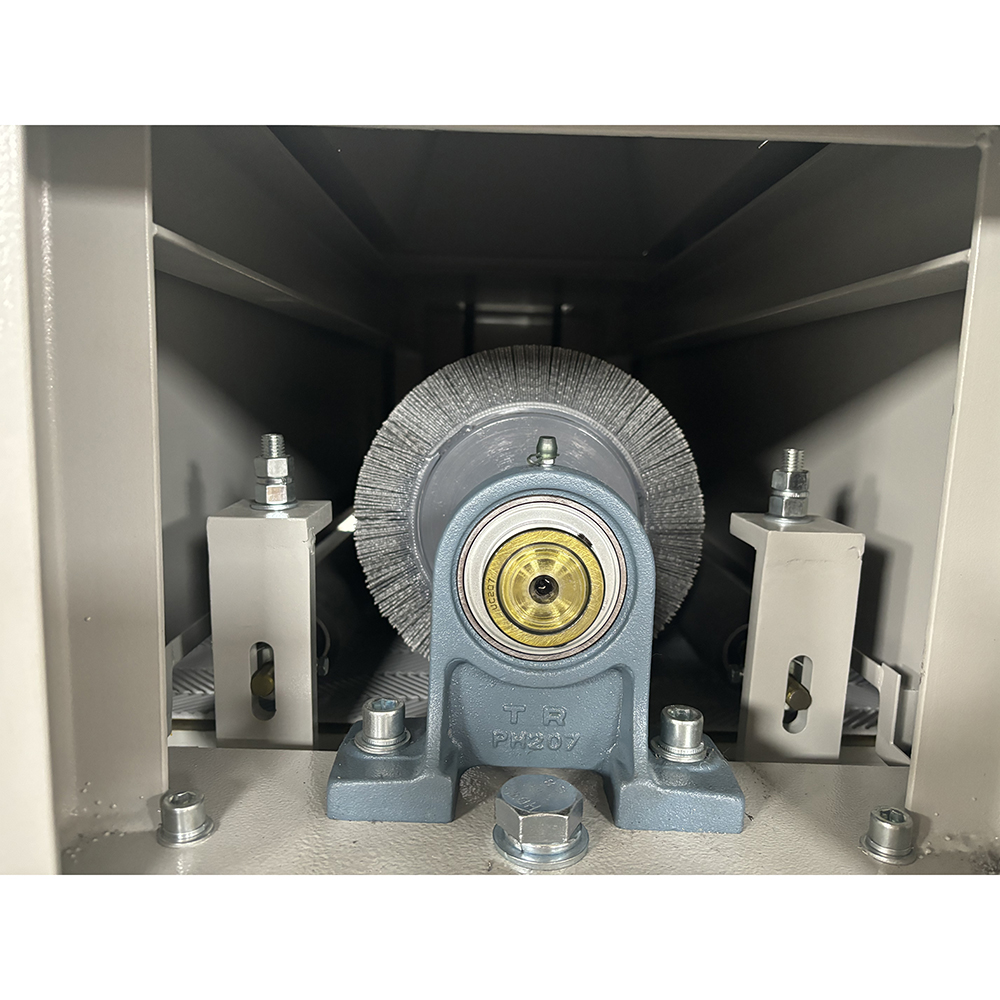

Conveyor belt, drawing rollers and polishing rollers all use independent controlled imported motors and the feeding use frequency conversion, which make the surface effect better and more precision controlled.
