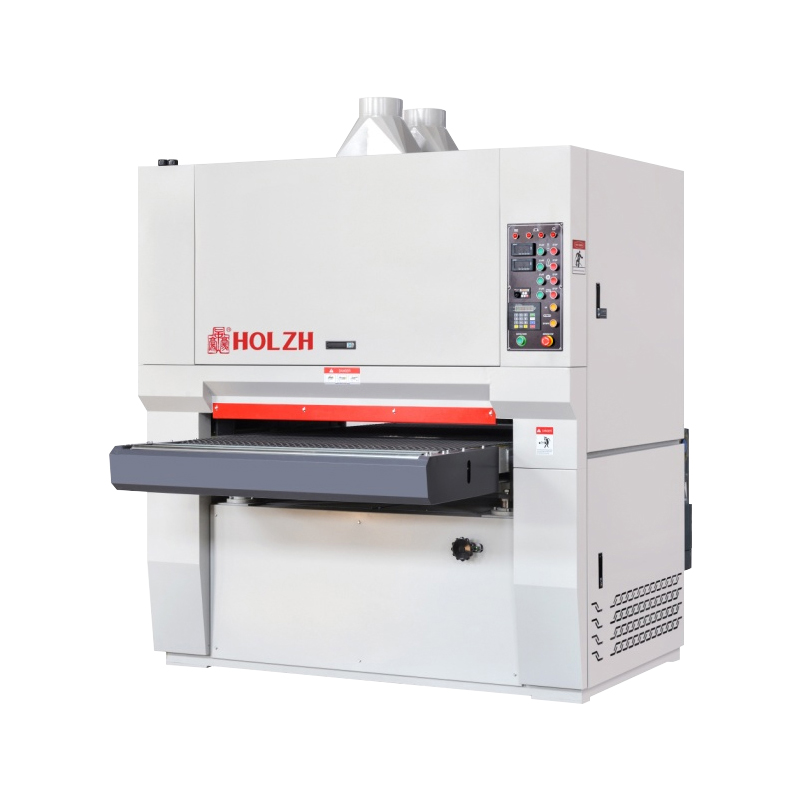

Wide Belt Sanding Machine BSG130R-RP China Woodworking Machine Manufacturer
Wide belt sanding machine suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
Description
| Model | BSG130R-RP |
| Max working width | 40-1300mm |
| Working thickness | 2.5-120mm |
| Min working length | 550mm |
| Speed of abrasive belt on 1st unit | 24m/s |
| Speed of abrasive belt on 2nd unit | 18m/s |
| Feed speed | 6-30m/min |
| Size of abrasive belt | 1330*2500mm |
| Diameter of 1st roller | Φ240mm |
| Diameter of 2nd roller | Φ210mm |
| Total power | 63.62Kw |
| Power of abrasive belt on 1st unit | 37Kw |
| Power of abrasive belt on 2nd unit | 22Kw |
| Conveyer motor power | 4Kw |
| Lifting motor power | 0.25Kw |
| Brush motor power | 0.37Kw |
| Working air pressure | 0.5-0.8Mpa |
| Volume of dust collection device | 9000m³/h |
| Exhaust tube diameter(sanding roller) | Φ200mm*2 |
| Exhaust tube diameter(brush roller) | Φ150mm |
| Weight | 3800Kg |
| Overall dimension | 2750*2100*2200mm |
| Voltage | 380V 50Hz |
Characteristics:
1.It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.

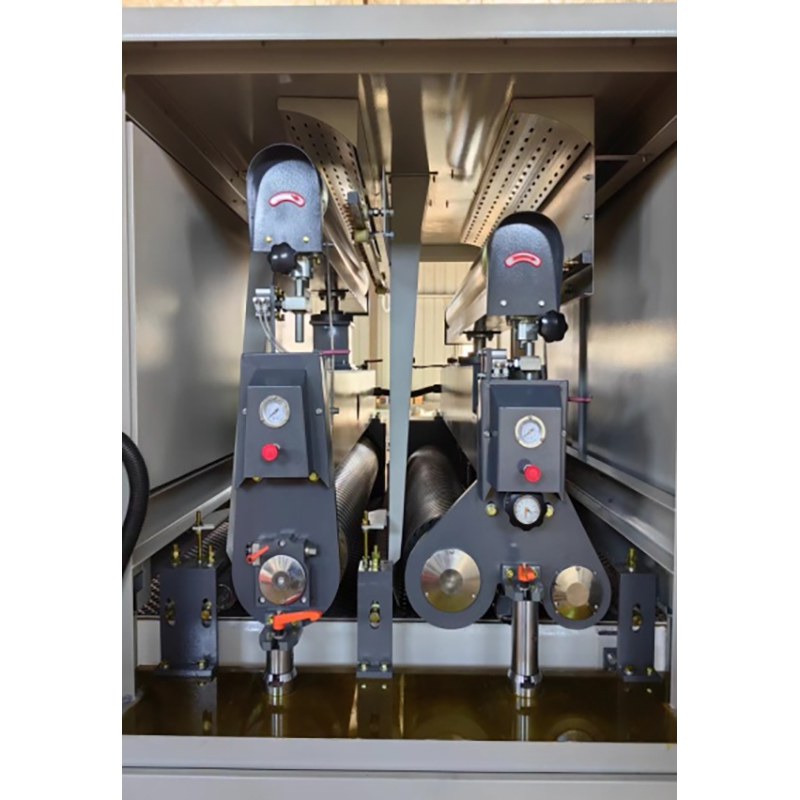

2.The front roller is adjustable steel roller; the second one is rubber roller with sanding pad. Steel roller keep sanding and rubber roller is for fine polishing.
3.The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
