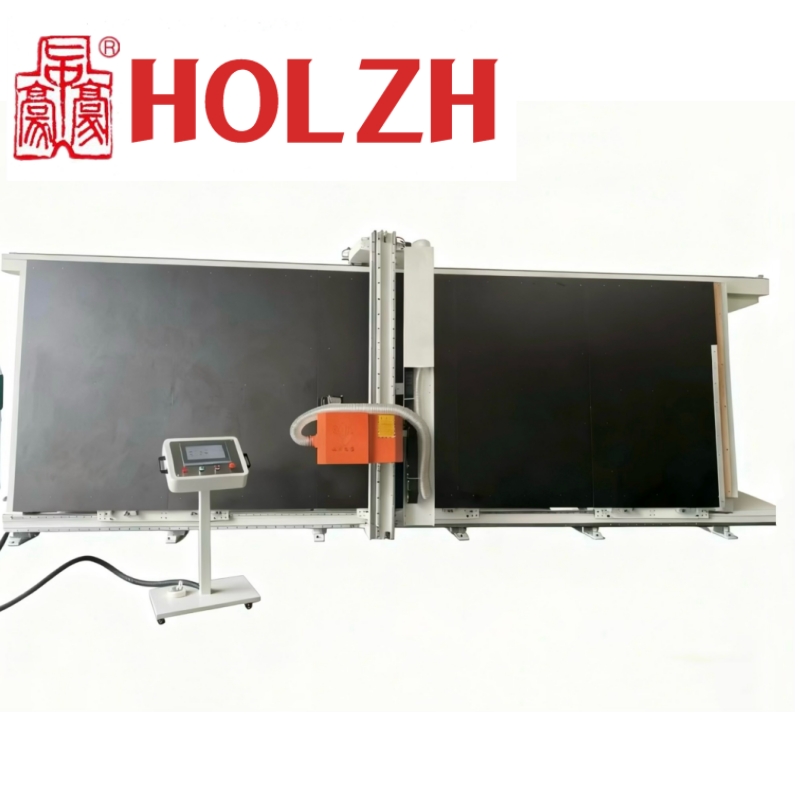

Vertical Panel Saw
Vertical Panel Saw is developed by adopting Italian classic structure technology and idea of profile processing in combination with the professional outcome of our company.
Vertical Panel Saw is mainly used for the grooving and cutting of solid wood, MDF, plywood, pure aluminum plate.
Description
1. Vertical Panel Saw adopts imported hard alloy saw blades ensures high stability in high-speed running, efficiency and long life.
2. Grooving depth is controlled by special eccentric bearing structure, and adjustment can be done at random between 0 to 50mm; the adjustment is easy and the precision is high.
3. The cutting head can realize the horizontal and vertical cutting or grooving. It’s of easy adjusting, accurate positioning, flexible operating and stability.
| Model | MJ-6325B |
| Length of grooving/cutting | 2500mm |
| Height of grooving/cutting | 2150mm |
| Grooving/cutting thickness | 0-50mm |
| Specification of cut saw | Φ250XΦ30X3.2X120T |
| Specification of line saw | Φ80XΦ22X2.8X20T |
| Working voltage | 380V AC 50HZ |
| Motor power | 3kw |
| Spindle speed of cut saw | 6000RPM |
| Spindle speed of line saw | 6000RPM |
| Overall Dimension (L*W*H) | 4150*1900*2950mm |
| Weight of machine | 1200Kg |
