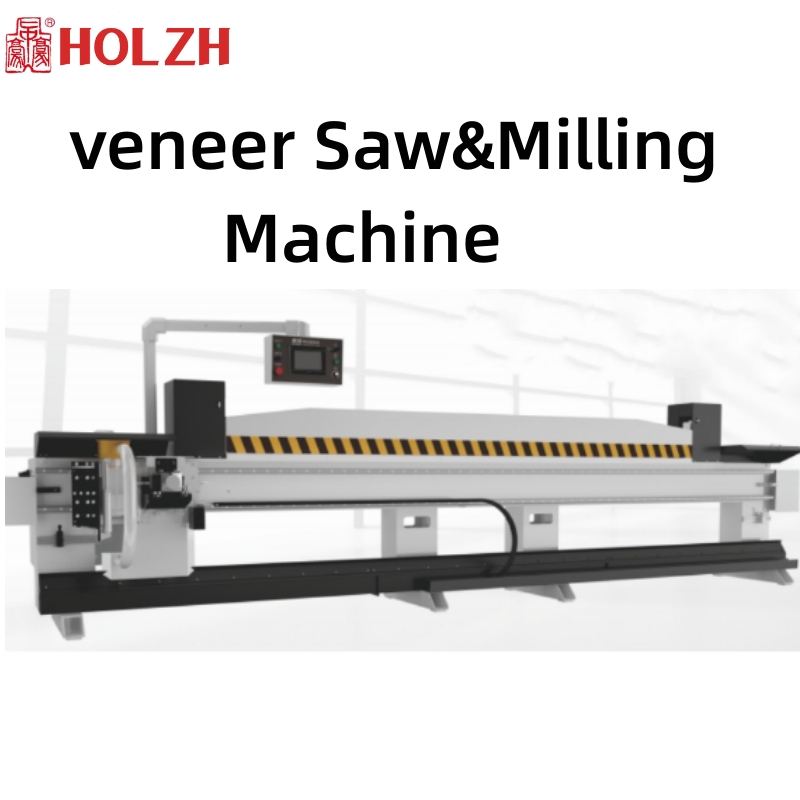

Veneer Saw & Milling machine JX3200 China Woodworking Machine Manufacturer
The Veneer Saw & Milling Machine is the preferred choice for accurate parallel veneer cutting of all veneer thicknesses, and the saw frame is guided by an accurate linear guide.
Description
| Model | JX3200 |
| Max. working length | 3200mm |
| Max working width | 57-650mm |
| Working Thickness | 0.8-50mm |
| Cutting speed | 8-20m/min |
| Saw power | 3.7Kw |
| Milling cutter power | 3.7kw |
| Total power | 10kw |
| Saw size | 255MM*3MM厚*25.4MM内孔 |
| Milling cutter size | D125*L60*d35*6T |
| Dimensions (L * W * H) | 5612*1800*1700mm |
| Weight | 2000kg |
Characteristic:
- TheVeneer Saw & Milling Machine is the preferred choice for accurate parallel veneer cutting of all veneer thicknesses, and the saw frame is guided by an accurate linear guide.
- The gear adopts high precision screw and slide rail movement to ensure milling accuracy and straightness.
- The two sides of the bracket are moved with a straight slide rail to ensure that the sawn mill will not produce a problem of size.
- The pressure beam is pressed pneumatically on both sides, so even the wavy veneer can be positioned precisely.
- Milling motor adopts high speed spindle motor direct drive to ensure milling accuracy.
