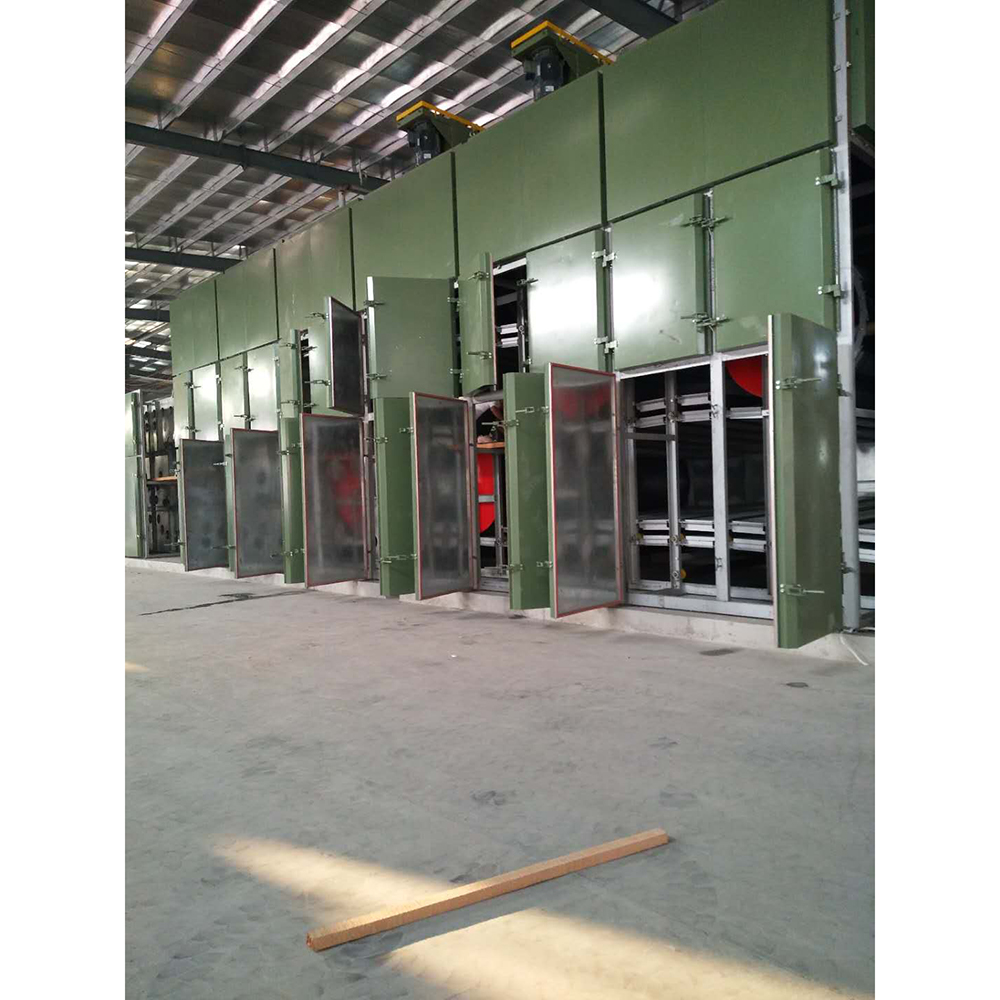

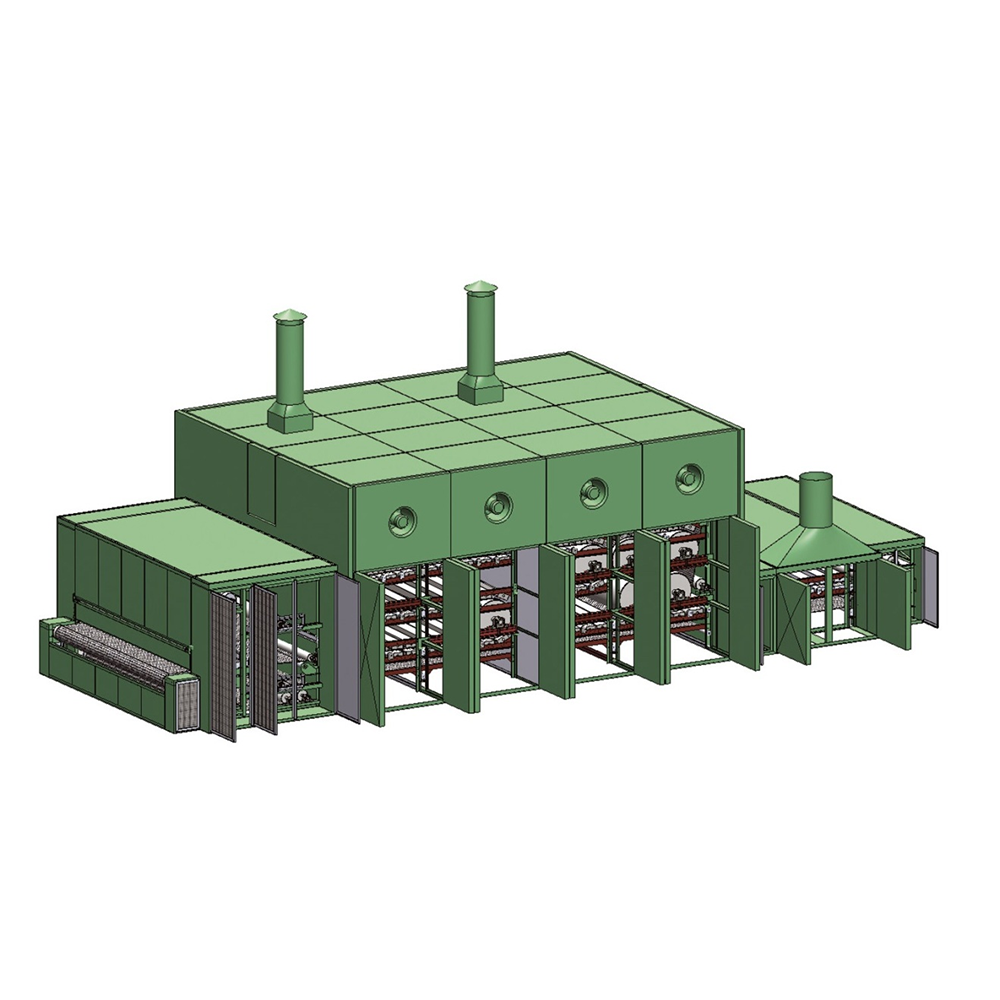

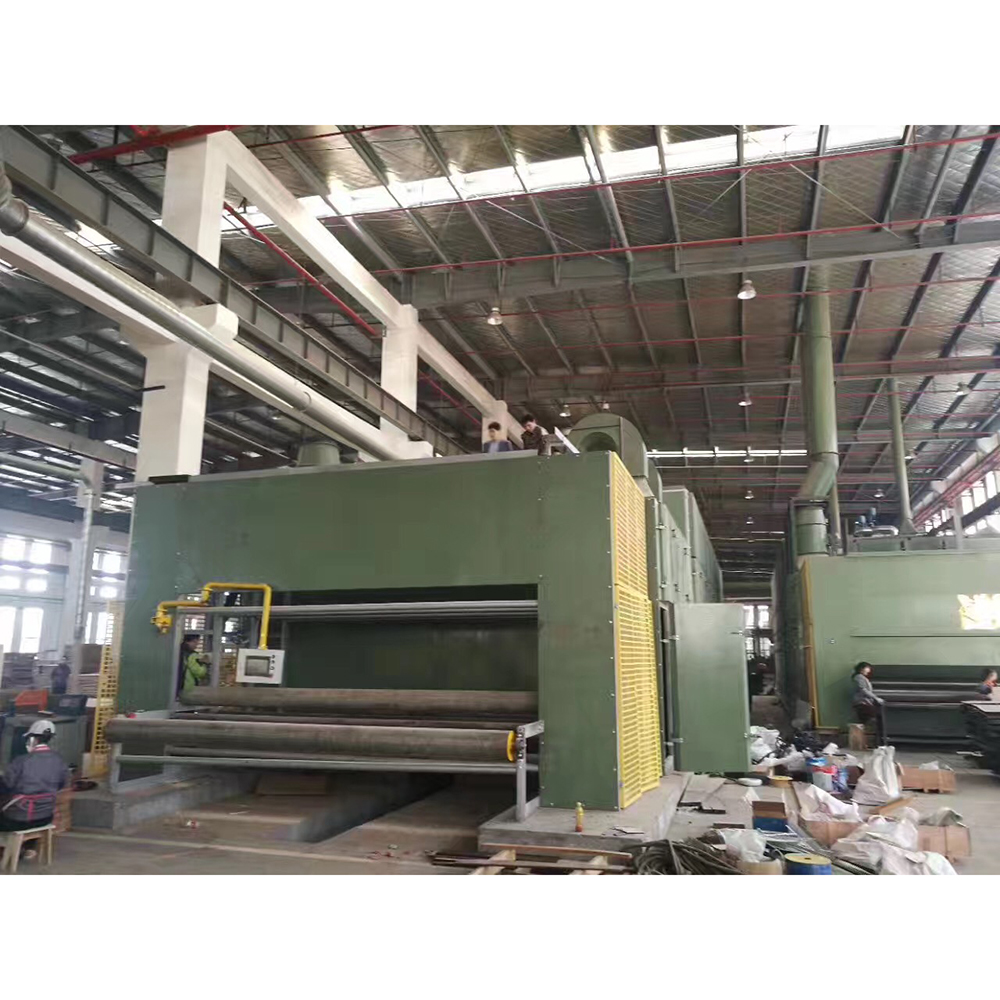

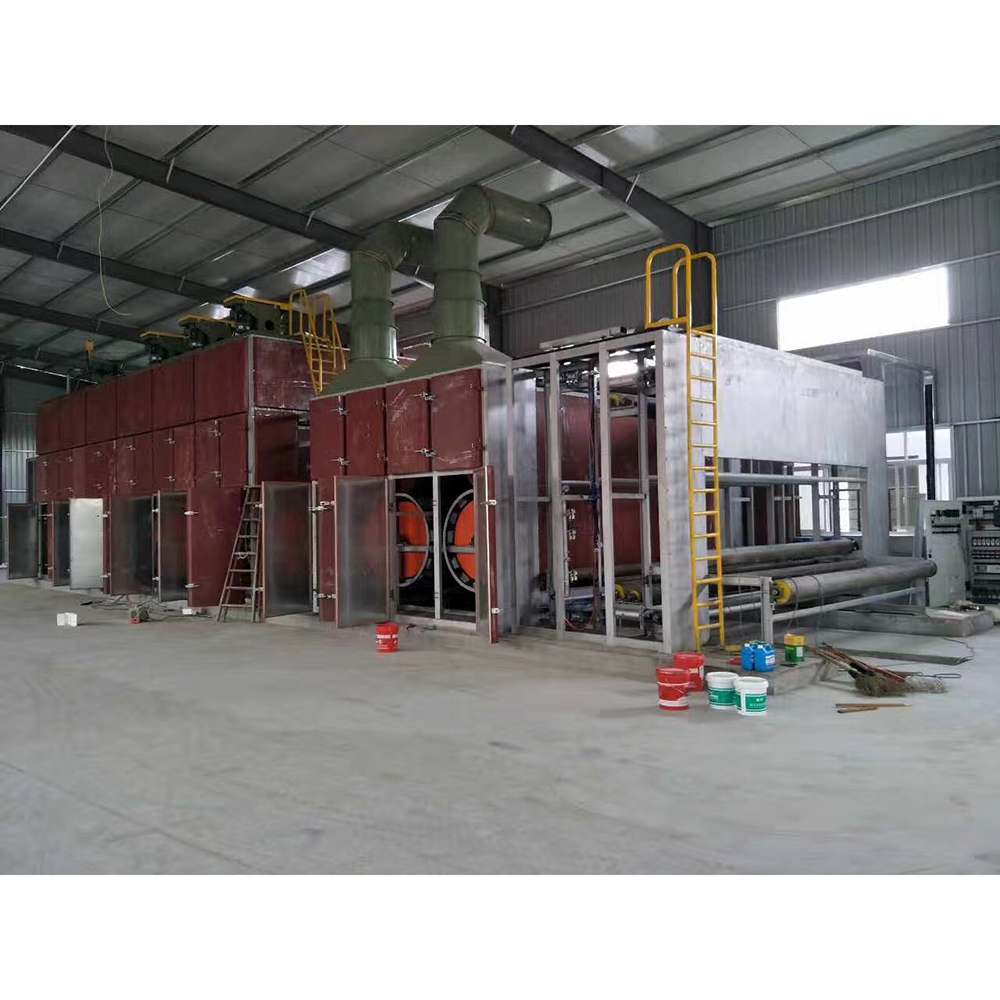

Veneer Dryer BG39/BG32
Veneer Dryer is a roller pressing continuous slice veneer dryer. Transverse circulation design is applied to its thermal system.
Description
Veneer Dryer is a roller pressing continuous slice veneer dryer. Transverse circulation design is applied to its thermal system. Besides, the heating fan introduces efficient and high static pressure volute centrifugal fan with little noise and the heat exchanger adopts the new exchanger which has high thermal conductivity and small wind resistance. Rectangular variable cross section spraying box is applied to ensure the veneer surface receive uniform spraying air flow.
Steam (or thermal oil) heating system with temperature control can set the appropriate drying temperature according to different varieties of trees. The heating fan is enantiomorphic arrangement to ensure dried veneers at various points get the consistent final moisture content.
| Model | BG39 | BG39 |
| Mesh width | 3900mm | 3900mm |
| Working thickness | 0.2-5mm | 0.2-5mm |
| Layers | 1 | 1 |
| Heating section | 2000*8=16000mm | 2000*6=12000mm |
| Cooling section | 2000*2=4000mm | 2000*2=4000mm |
| Natural cooling section | 1500mm | |
| Middle open section | 3600mm | |
| Feeding speed | 2.5-25m/min | 2.5-25m/min |
| Total power | 125kw | 95kw |
| Feeding power | 7.5*2=15kw | 7.5*2=15kw |
| Heating power | 11*8=88kw | 11*6=66kw |
| Cooling power | 5.5*4=22kw | 7*2=14kw |
| Dry capability | 3m3/hour | 2.2m3/hour |
| Heating resource | Steam or Thermal oil | Steam or Thermal oil |
| Working temperature | 90-160℃ | 90-160℃ |
| Veneer density | 600kg/m3 | 600kg/m3 |
| Initial moisture | 75% | 75% |
| Final moisture | 10±2% | 10±2% |
| Working loading rate | 75% | 75% |
| Working air pressure | 0.3-0.5mpa | 0.3-0.5mpa |
| Steam consumption | 2.5t/h | 2t/h |
| Dimension L*W*H | 26*6.1*5.7m | 24*6.1*5.7m |
| Weight | 98T | 90T |
