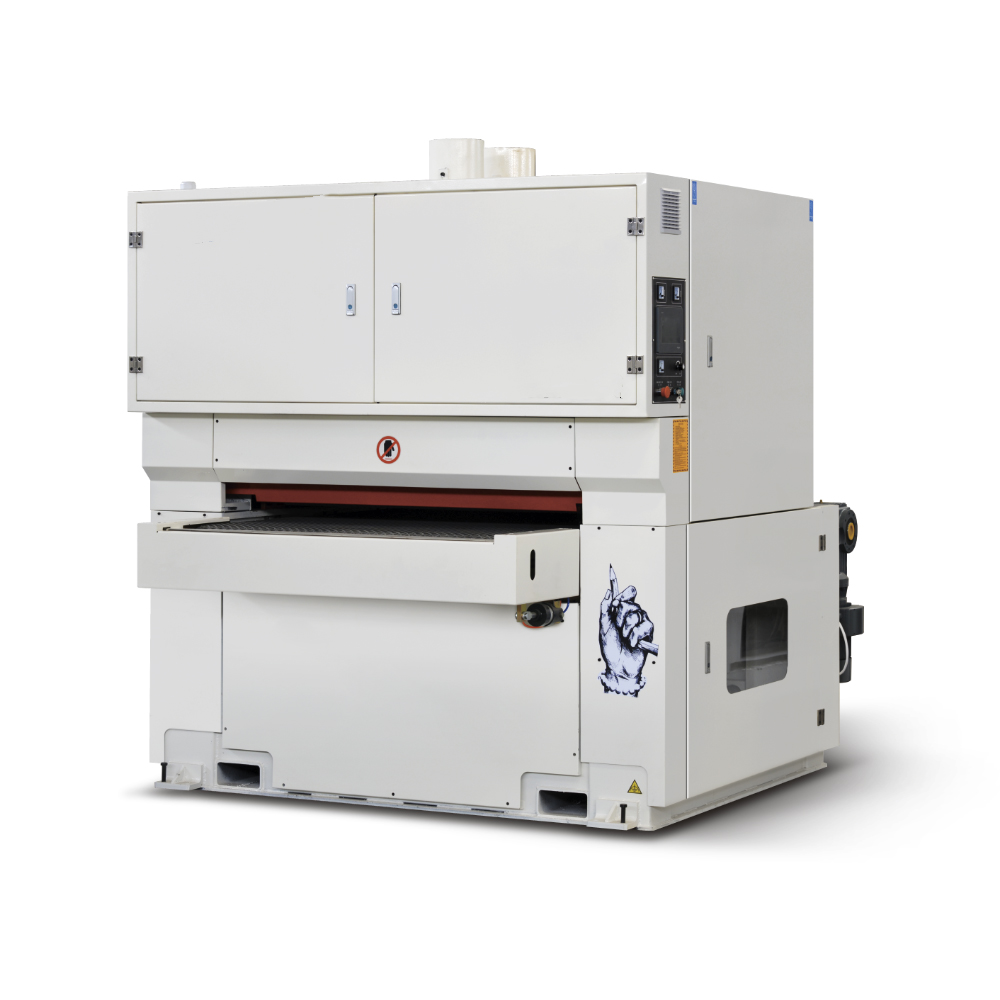

Top Floating Sanding Machine SU130FR-R China Woodworking Machine Manufacturer
It is suitable for calibration sanding and polishing plywood, veneer surface plywood, veneer surface MDF, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
Description
| Model | SU130FR-R |
| Working width | 40-1300mm |
| Working thickness | 3-120mm |
| Working length | ＞580 mm |
| Speed of sandpaper | 18m/s |
| Feed speed | 3-18m/min |
| Size of abrasive belt | 1310×2200mm |
| Height of working table | 1100mm |
| Diameter of 1ST sanding roller | Φ240mm |
| Diameter of 2ND sanding roller | Φ210mm |
| Power of abrasive belt on 1st unit | 30kw |
| Power of abrasive belt on 2nd unit | 22kw |
| Conveyer motor power | 4kw |
| Lifting motor power | 1.5kw |
| Brush motor power | 0.37kw |
| Air pressure | >0.55Mpa |
| Compressed air consumption | 0.2m³/min |
| Volume of dust collector | >18000m³/h |
| Voltage | 380V 50Hz, 3Phase |
| Overall dimension | 2200*2300*2400mm |
| Weight | 4000Kg |

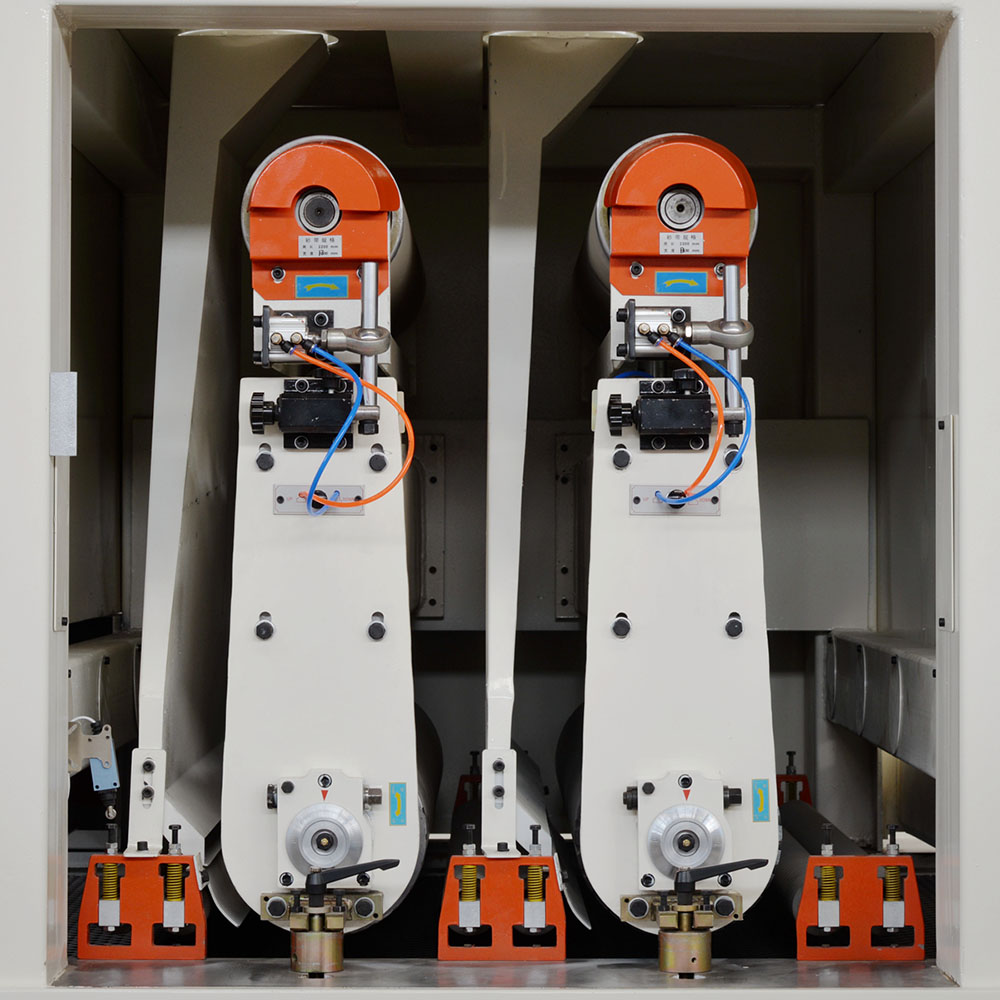

The front roller is adjustable steel roller; the second one is rubber roller with sanding pad. Steel roller keep sanding and rubber roller is for fine polishing.
The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
