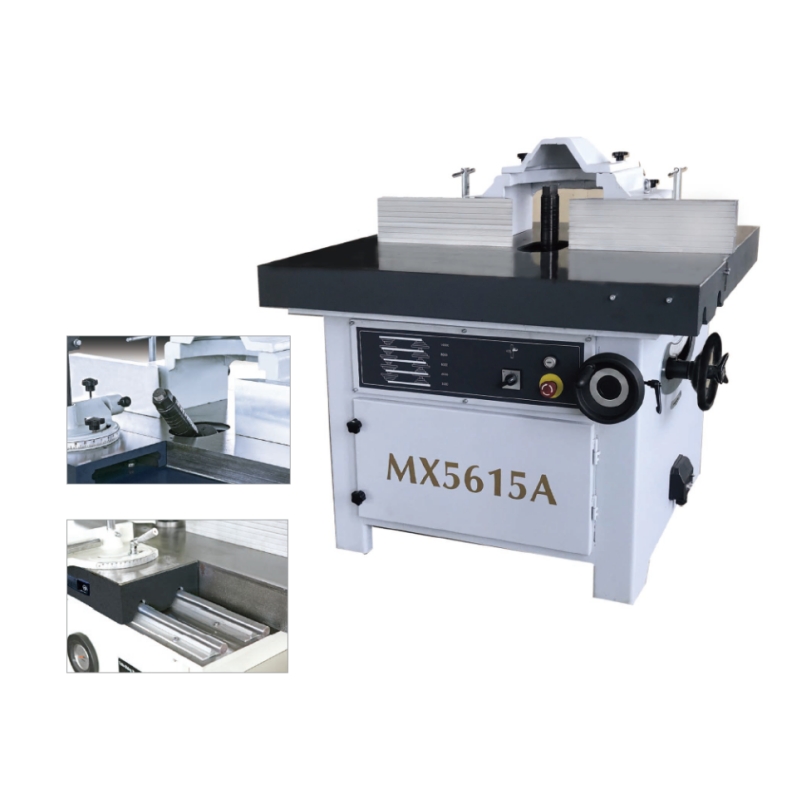

Spindle Moulder Machine MX5615A
Spindle Moulder Machine for milling vertical edge of work piece, this model with sliding table, spindle tool can tilt 0-45 degrees
Description
| Model | MX5615A |
| Fixed Table size | 1100×550mm |
| Movable Table size | 1150×260mm |
| Main spindle speed | 10000/8000/6000/4000/3000r/min |
| Max working thickness | 150mm |
| Spindle lifting height | 0-190mm |
| Spindle diameter | Φ35mm |
| Spindle angle | 0-45degree |
| Working table sliding stroke | 800mm |
| Total power | 4kw |
| Weight | 480kg |
| Overall dimension | 1135×1565×1140mm |
| Voltage | 380V 50Hz |
The spindle title angle 0-45degree
