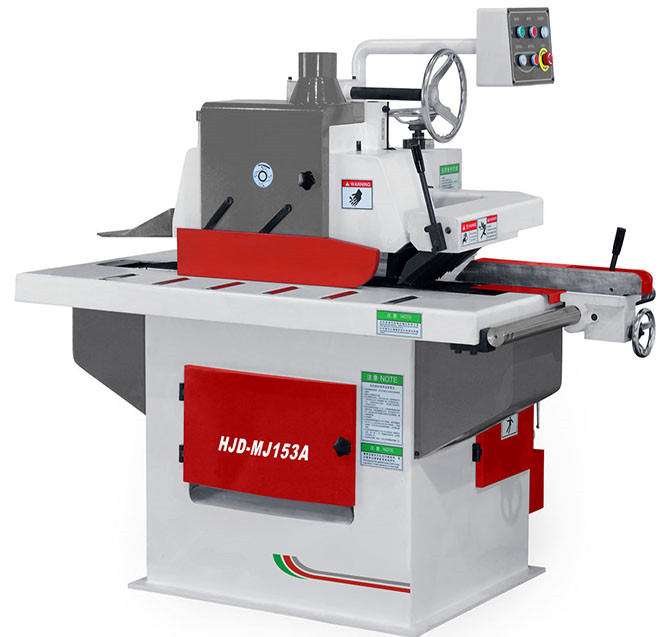

Single Rip Saw MJ153A China Woodworking Machine Manufacturer

Single rip saw has the function of cutting the logs or wood boards into wood chips or wood slat. It is a machine with full automatic feeding and high-precision cutting. The saw cutting size can be adjusted according to personal needs and can saw cutting into square timbers, bar wood or plates at a time according to the adjusted size.

Description

Model MJ153A
Max. saw blade diameter 305mm
Max. working width 360mm
Max. working thickness 85mm
Feeding speed 10-30m/min
Spindle rotation speed 3000r/min
Working table size 1380*890mm
Spindle diameter Φ25.4mm
Feeding motor power 0.75kw
Main motor power 7.5kw
Total power 8.25kw
Dimension 1610×1180×1500mm
Weight 1150kg
