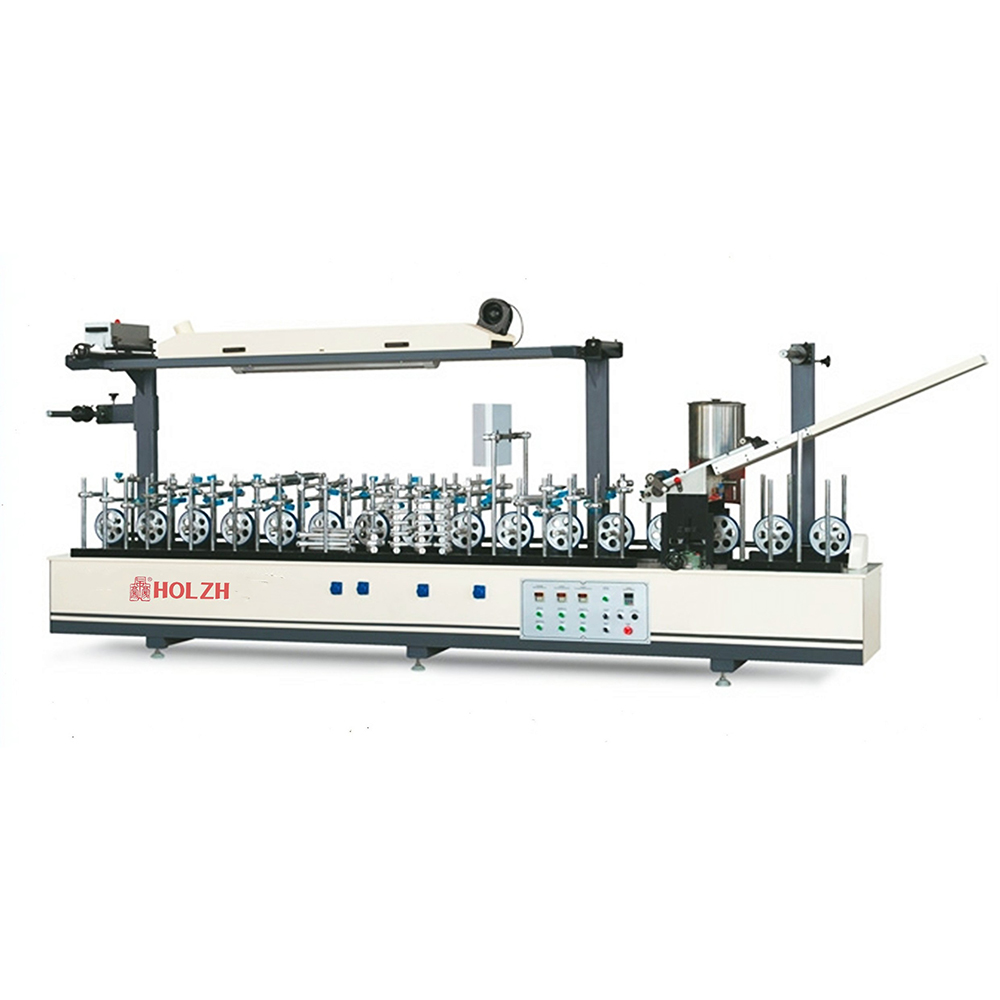

Profile Wrapping Machine BF300C China Woodworking Machine Manufacturer

It can be used to wrap PVC, decorative paint paper and veneer on the profile of wood material,aluminum plastic material and froth material, etc.

Description

By using various forming pressure wheels to simulate the manual veneering action, surface decorative materials are attached to the surface of the base material. Generally, the center line, the highest point or the lowest point of the profile is selected as the starting point. The pressure wheels are fixed in position point by point and in sequence along the surface contour of the profile to form the envelope line of the profile contour.

Model BF300C
Max. wrapping width 300mm
Wrapping speed 0-25m/min
Heating pipe power 9.6kw/13.05hp
Feeding power 1.5kw/2.05hp
Glue spreader power 0.37kw/0.5hp
Total Power 11.5Kw/15.6hp
Overall dimensions 5900*750*2100mm
Weight 1350kg
Voltage 380V 50Hz
