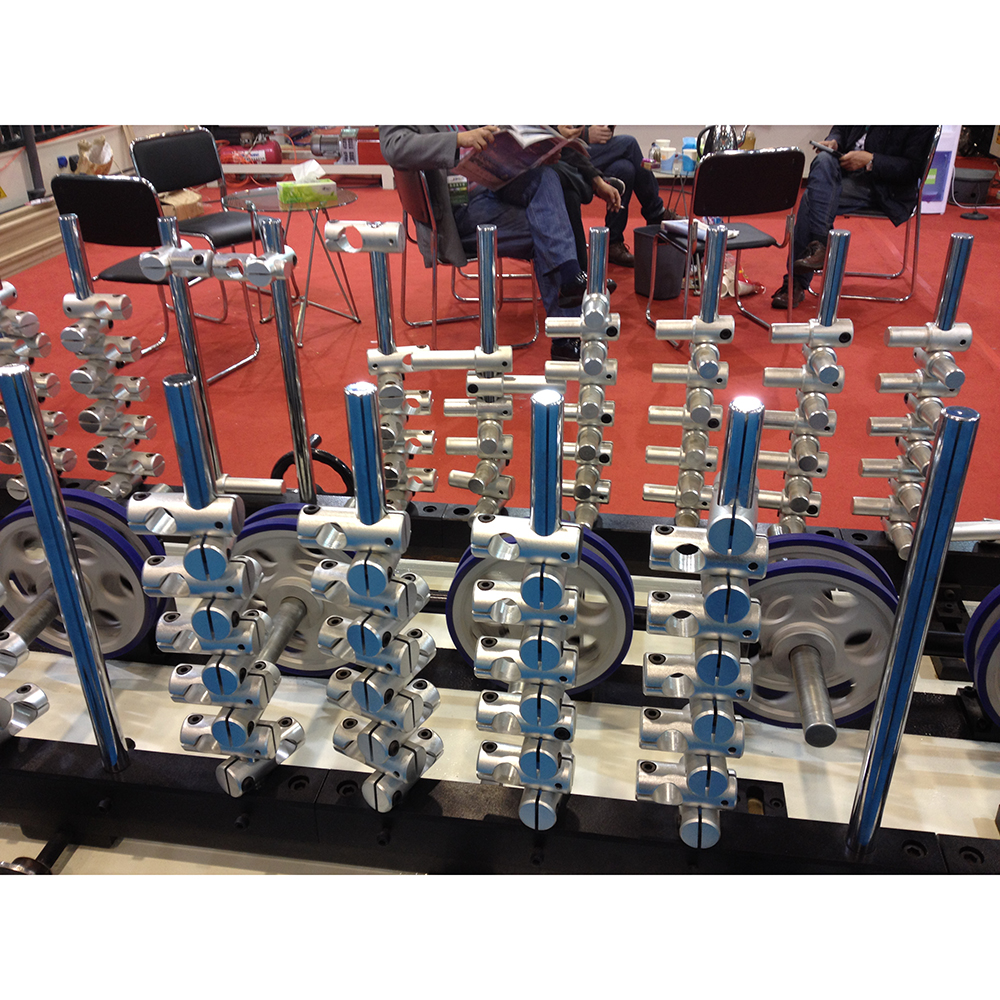

By using various forming pressure wheels to simulate the manual veneering action, surface decorative materials are attached to the surface of the base material. Generally, the center line, the highest point or the lowest point of the profile is selected as the starting point. The pressure wheels are fixed in position point by point and in sequence along the surface contour of the profile to form the envelope line of the profile contour.
| Model |
BF300B |
| Max. wrapping width |
300mm |
| Max processing thickness |
120mm |
| Wrapping speed |
0-25m/min |
| Total Power |
12Kw |
| Power of main motor |
2.2Kw |
| Power of dusting motor |
0.37Kw*3 |
| Electrical control manner |
PLC control, Touching screen |
| Overall dimension of main machine |
6000*750*1750mm |
| Weight |
1500kg |
| Voltage |
380V 50Hz |
