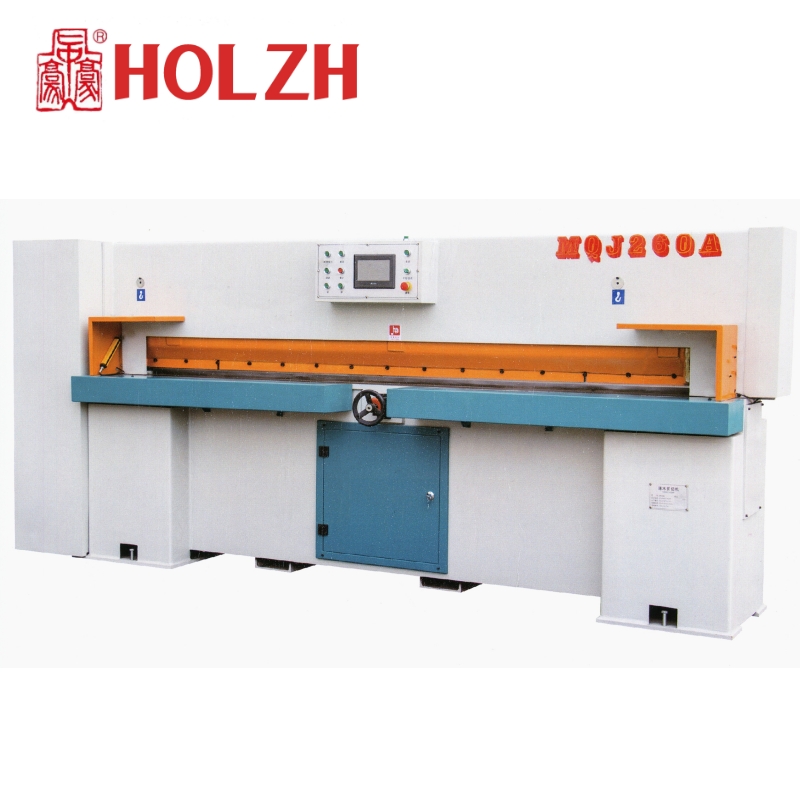

Precise Automatic Veneer Guillotine MQJ260B/MQJ320B Woodworking Machine
This Precise Automatic Veneer Guillotine is designed for cutting piled veneer, controlled by PLC,it is a necessary equipment of wood based panel in second processing and make up patterns on varies decorative tables.
Description
| Model | MQJ260B | MQJ320B |
| Max cutting length | 2600mm | 3200mm |
| Max cutting thickness | 40mm(wet veneer)
20mm(dry veneer) |
40mm(wet veneer)
20mm(dry veneer) |
| Scissors size | 2700x100x10 | 3200x100x10 |
| Feed motor power | 4.37kw | 5.86kw |
| Hydraulic pressure | 10mpa | 10mpa |
| Overall dimensions | 3680x1450x1540mm | 4180x1680x1540mm |
| Net weight | 2870kg | 3120kg |
| packing | stretch film | stretch film |
Veneer Guillotine Characteristic:
1.With round rod linear guide rail and servo motor for feeding, it is more stable and precise.

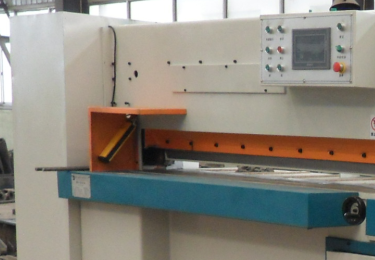

2.Touch control panel with PLC, automatically control cutting width
3.Alloy tool steel1. High hardness 2 good heat resistance 3. Good wear resistance
4.Infrared safety facilities it is safest protect the safety of workers
5.Powerful high-performance Hydraulic power system unit consistently delivers even pressure in any circuit system .
