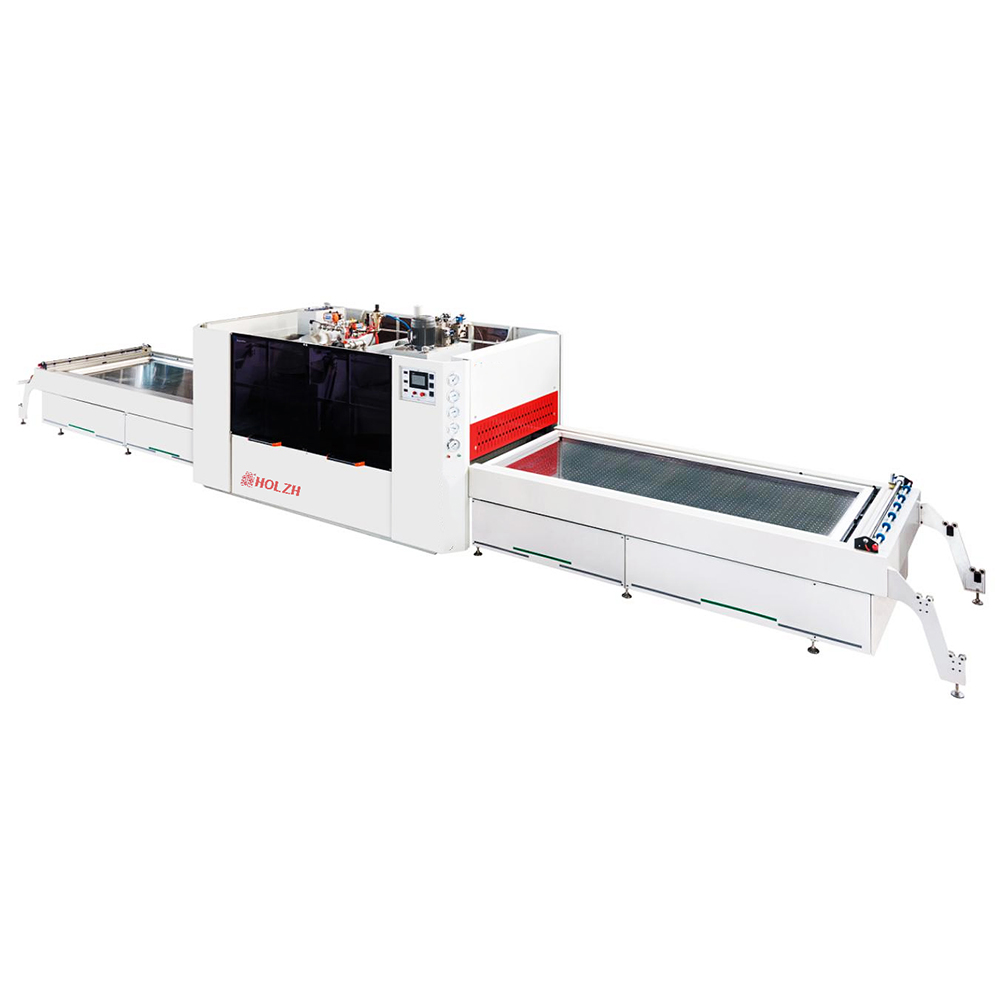

Negative & Positive Membrane Press
Advanced pneumatic hydraulic sealing system can make sure that this equipment can be operated in a safe, stable and efficient way.
Description
Imported famous-brand vacuum pump, advanced pressure preparation heating device and automatic cooling system can make sure of high quality of products.

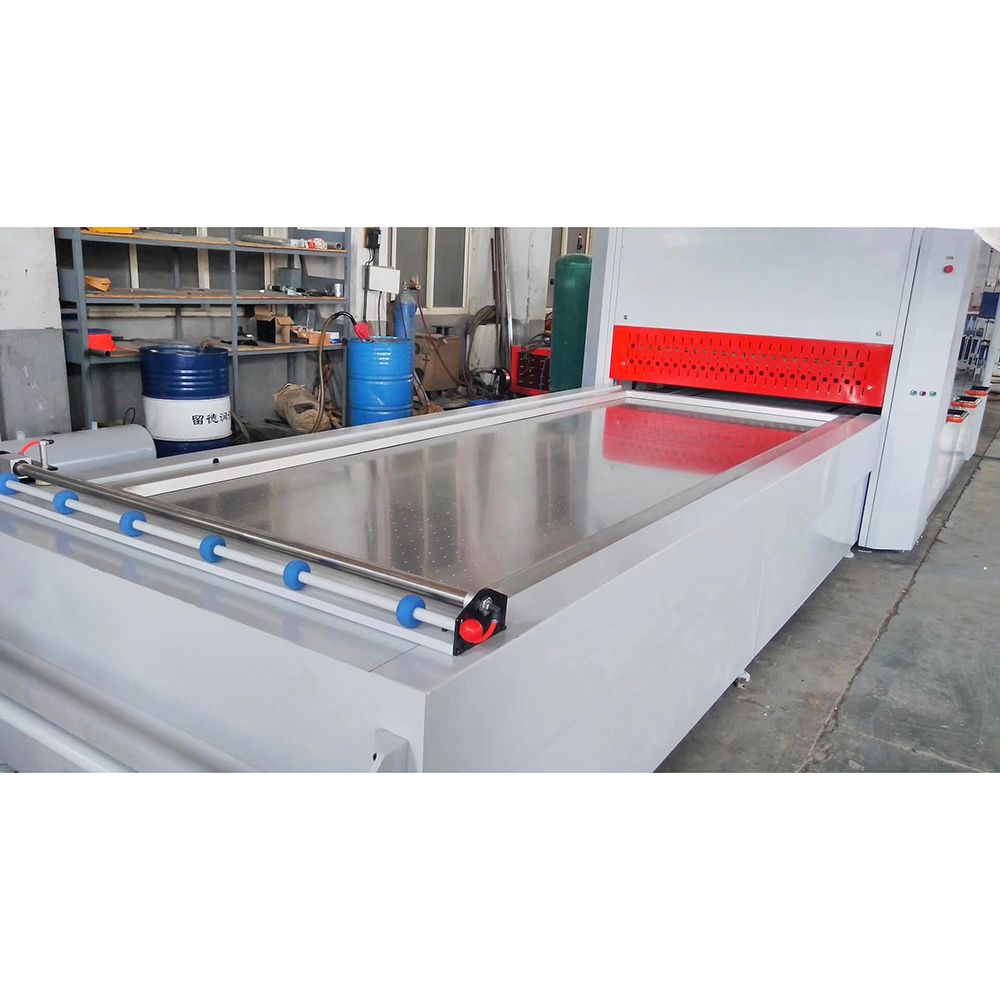

Automatic double aluminum alloy working table can double the working efficiency.

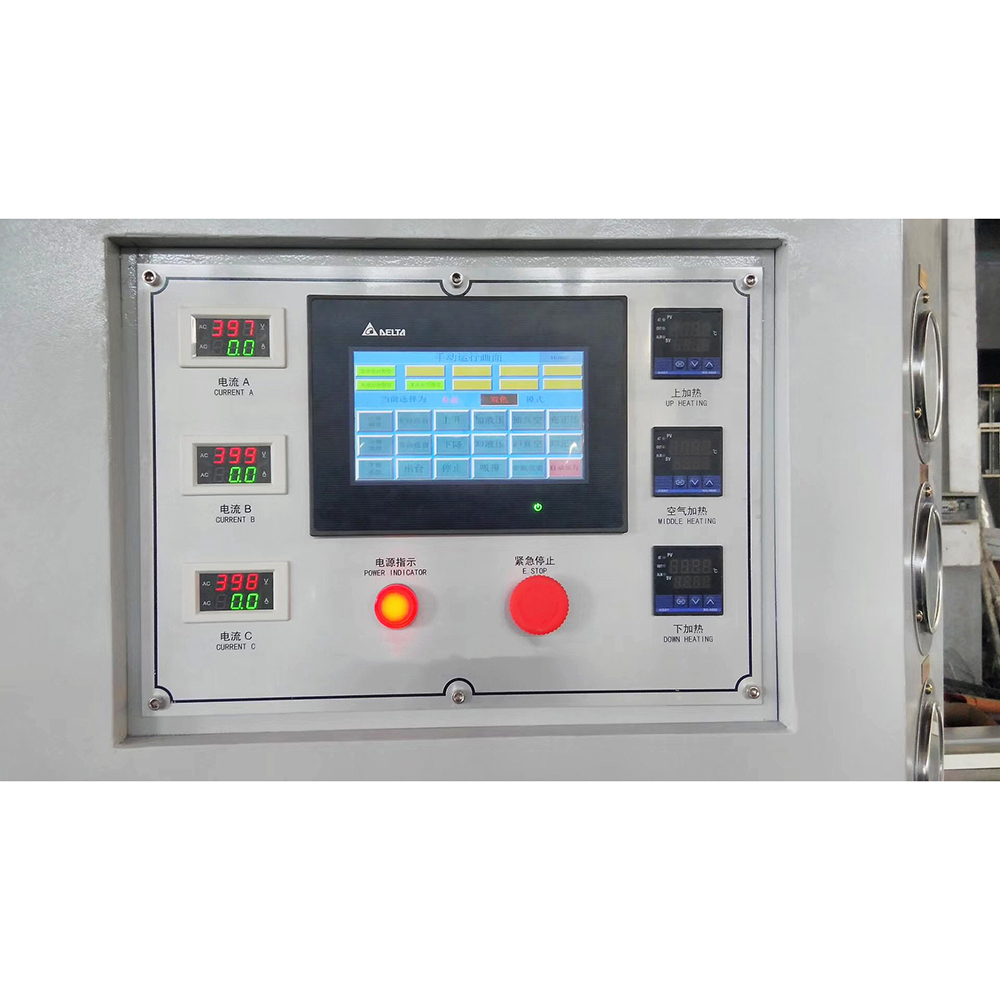

Advanced man-machine interface and large scale of PLC control can make sure of high level of automation and easy operation.
| Model | WVP2580A |
| Worktable size | 2580*1280mm*2 |
| Max work piece size | 2500*1220mm |
| Total power | 57.2Kw |
| Heating method | Oil heating(up); aluminum & electric(bottom); electric (Air heating) |
| Cylinder size | φ180mm*6pcs |
| Positive pressure | 0.4-0.5Mpa |
| Negative pressure | 0.08Mpa |
| PVC Cutting system | 2sets |
| Overall dimensions | 10600*2250*2050mm |
| Weight | 11000kg |
