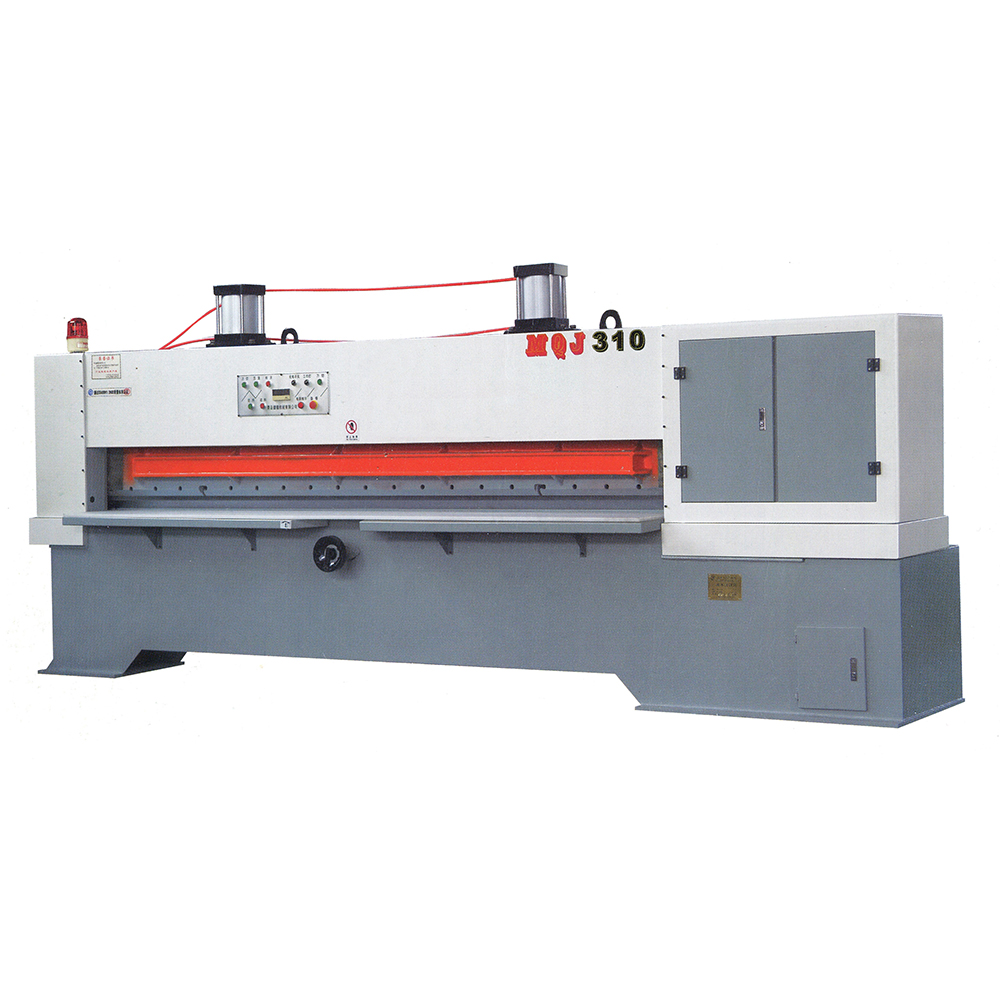

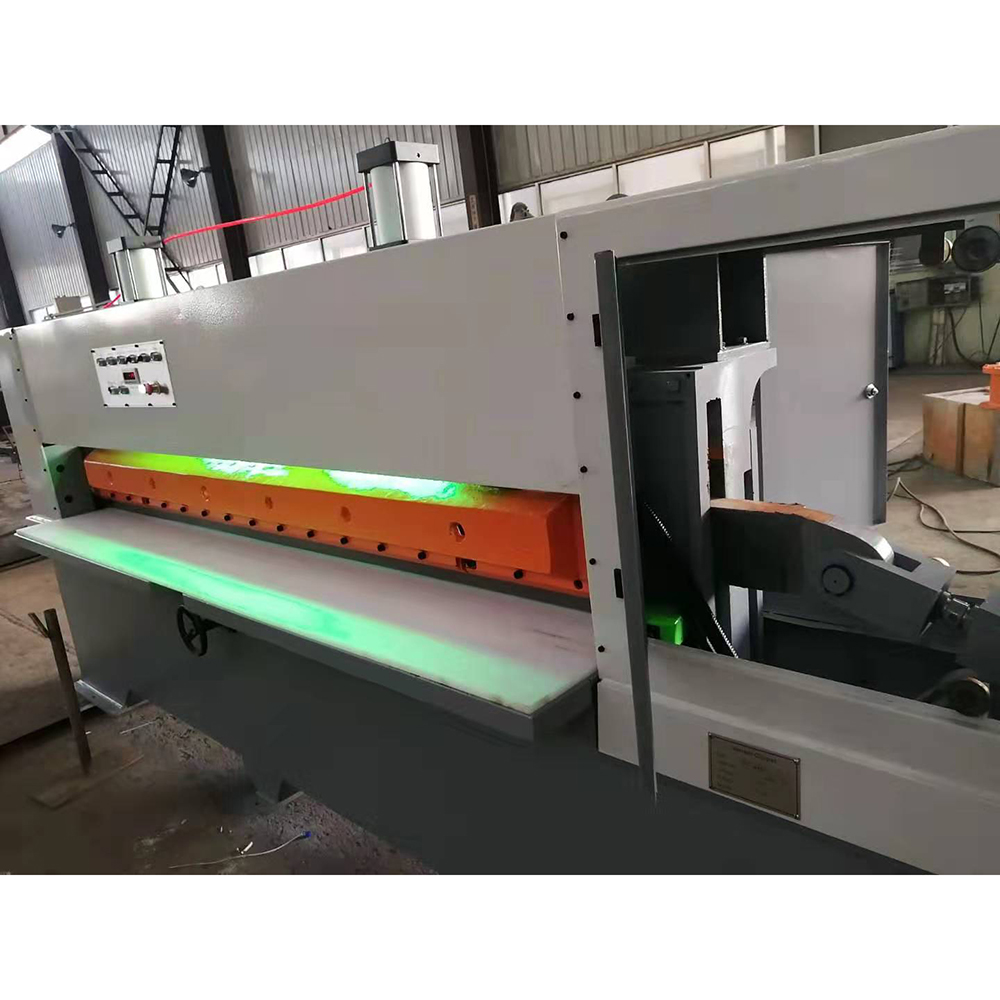

Pneumatic Veneer Clipper MQJ320/MQJ268 Woodworking Machine
This Pneumatic Veneer Clipper is designed for cutting piled veneer, it is a necessary equipment of wood based panel in second processing and make up patterns on varies decorative tables.
Description
| Model | MQJ268 | MQJ320 | |
| Max cutting length(mm) | 2680 | 3100 | |
| Max cutting Thickness(mm) | Wet cortices | 40 | 40 |
| Dry cortices | 20 | 20 | |
| Scissors size mm | 2750×125×14 | 3200×145×14 | |
| Cutting power | 3kw | 3kw | |
| Feed motor power | 0.75kw | 0.75kw | |
| Pressure of compressed air | 0.4-0.7 | 0.4-0.7 | |
| Overall dimensions (L*W*H)mm | 4100*1400*1900 | 4700*1400*2000 | |
| Net weight kg | 2500 | 3000 | |
