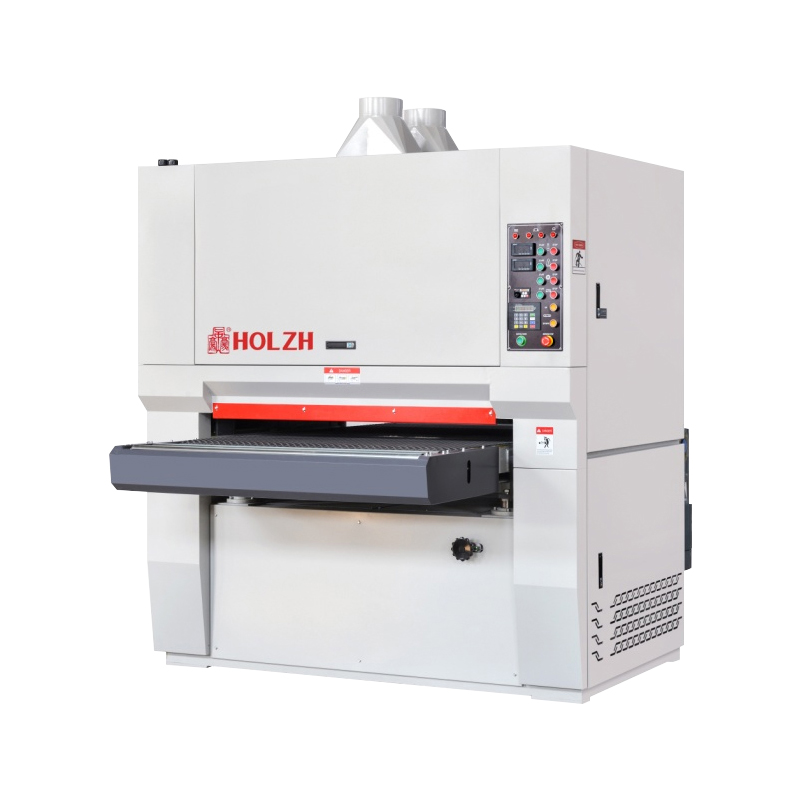

Planer Sander BSG130K-R-RP Woodworking Machine

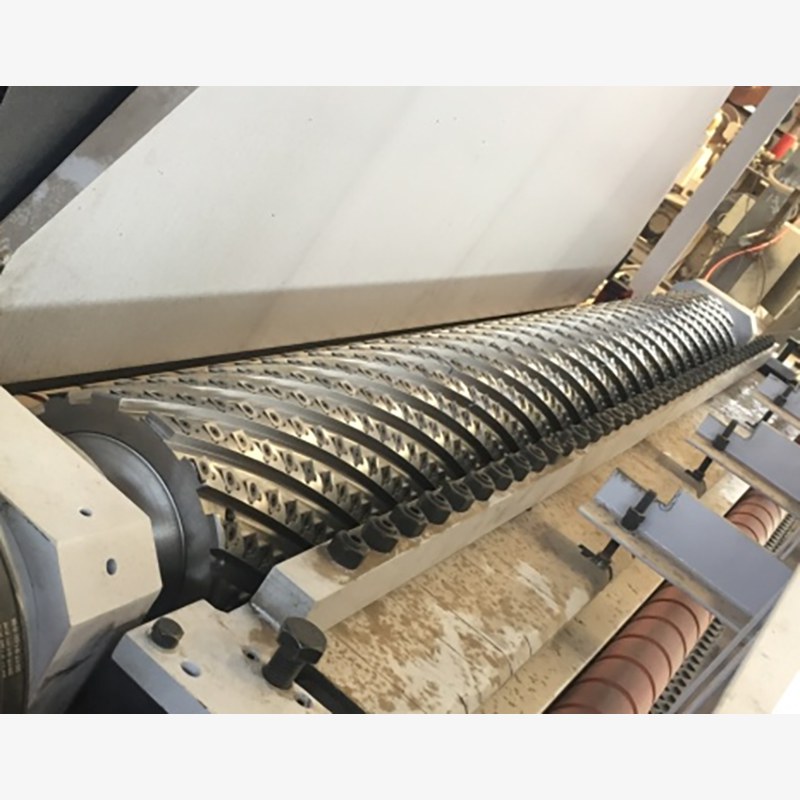

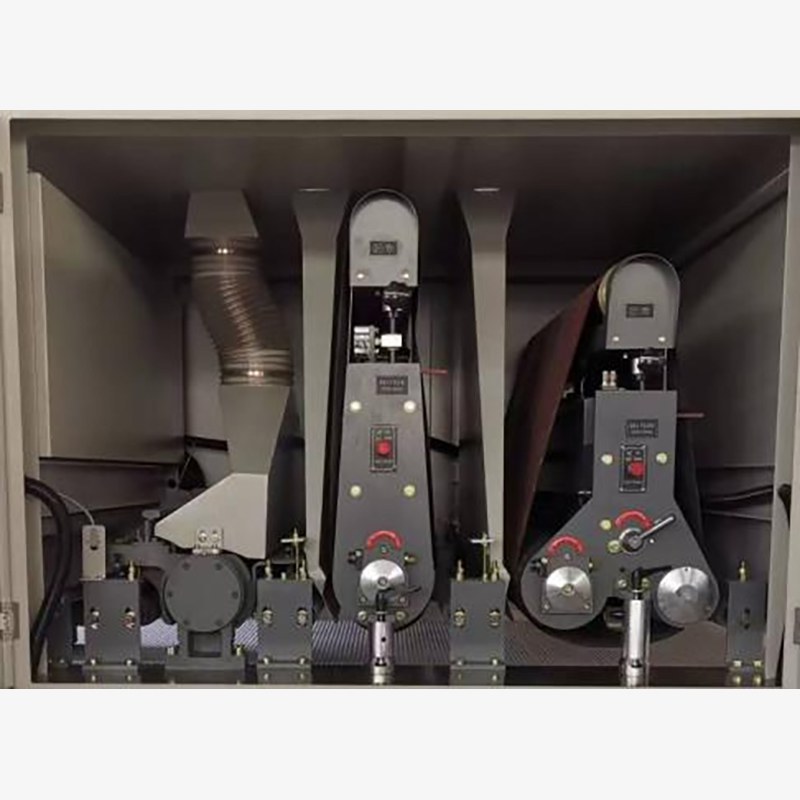

This machine is mainly used for solid wood board, panel, finger joined panel, door, flooring etc, with advanced technology, high precision, reasonable structure and easy operation. First unit is planer tool, second sanding unit is steel roller, third unit is sanding pad.
Description
| Model | BSG130K-R-RP |
| Width of sanded panel | 20-1300mm |
| Thickness of sanded panel | 3-100mm |
| Min working length | >580mm |
| Feeding speed | 3-17m/min |
| Size of abrasive belt | 1300*2200mm |
| Diameter of planer | Φ180mm |
| Power of planing roller | 22kw |
| Power of abrasive belt on 2ndunit | 30kw |
| Power of abrasive belt on 3rdunit | 22kw |
| Conveyor motor power | 5.5Kw |
| Lifting motor power | 0.37Kw |
| Brush motor power | 0.37Kw |
| Working pressure | 0.55MPa |
| Compressed air consumption | 0.2m3/h |
| Pressure relief device required | >13000m3/h |
| Speed required for cleaning equipment | 25-30m/s |
| Dimensions | 2500×2260×2180mm |
| N.W. | 4000kg |
| Voltage | 380V 60Hz 3Ph |
