Peeling Machine XQJQ2705 China Woodworking Machine Manufacturer

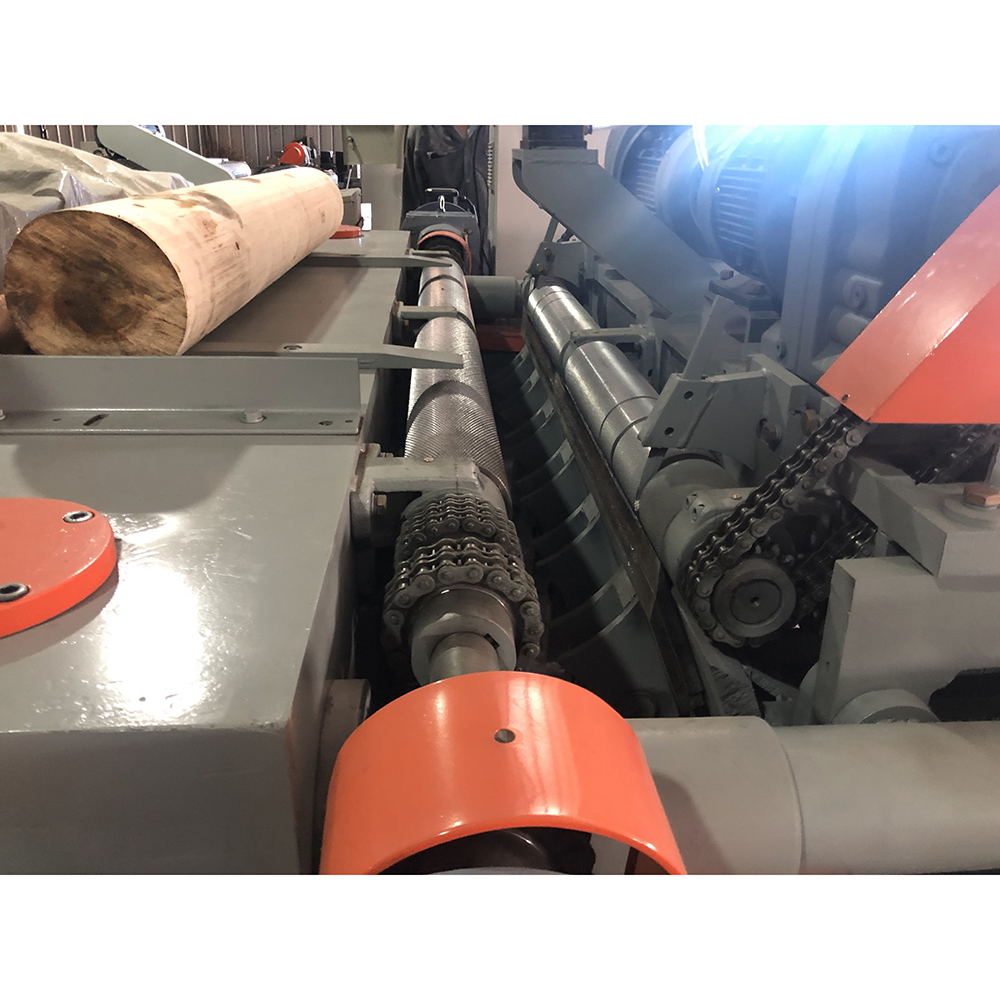

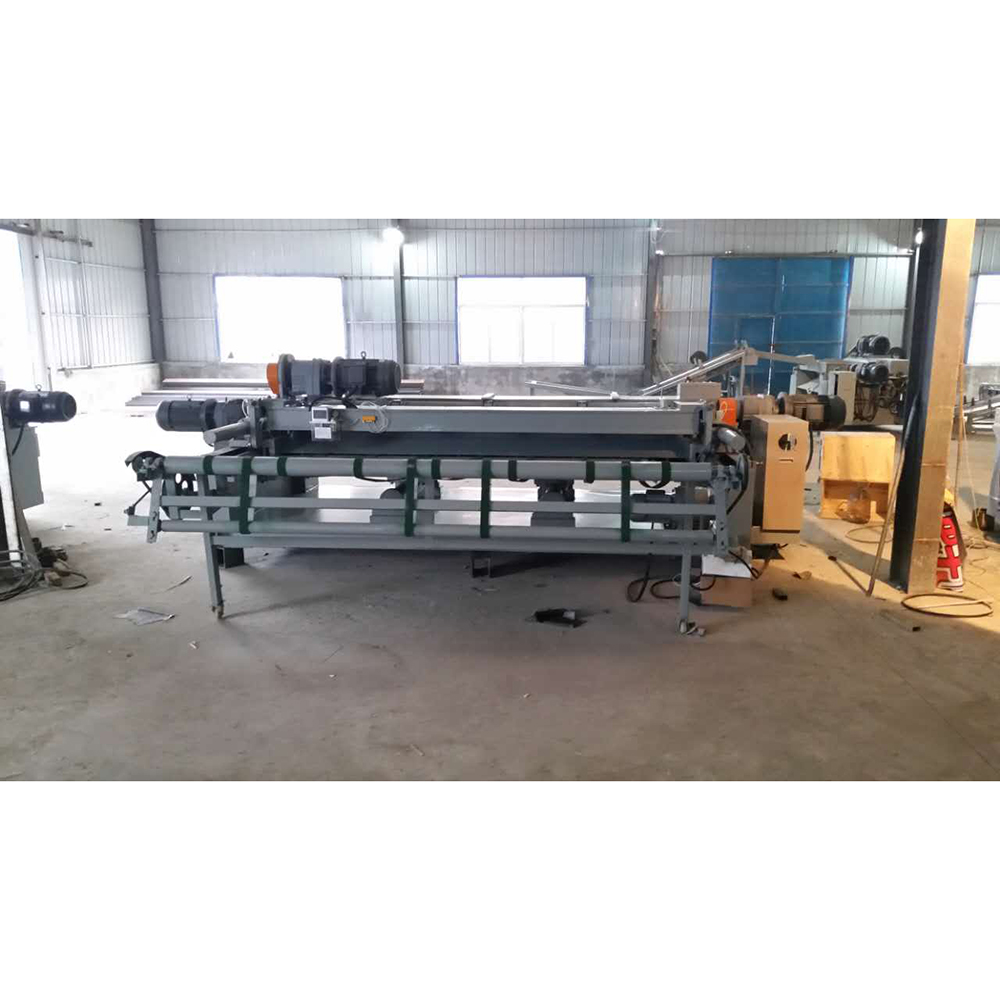

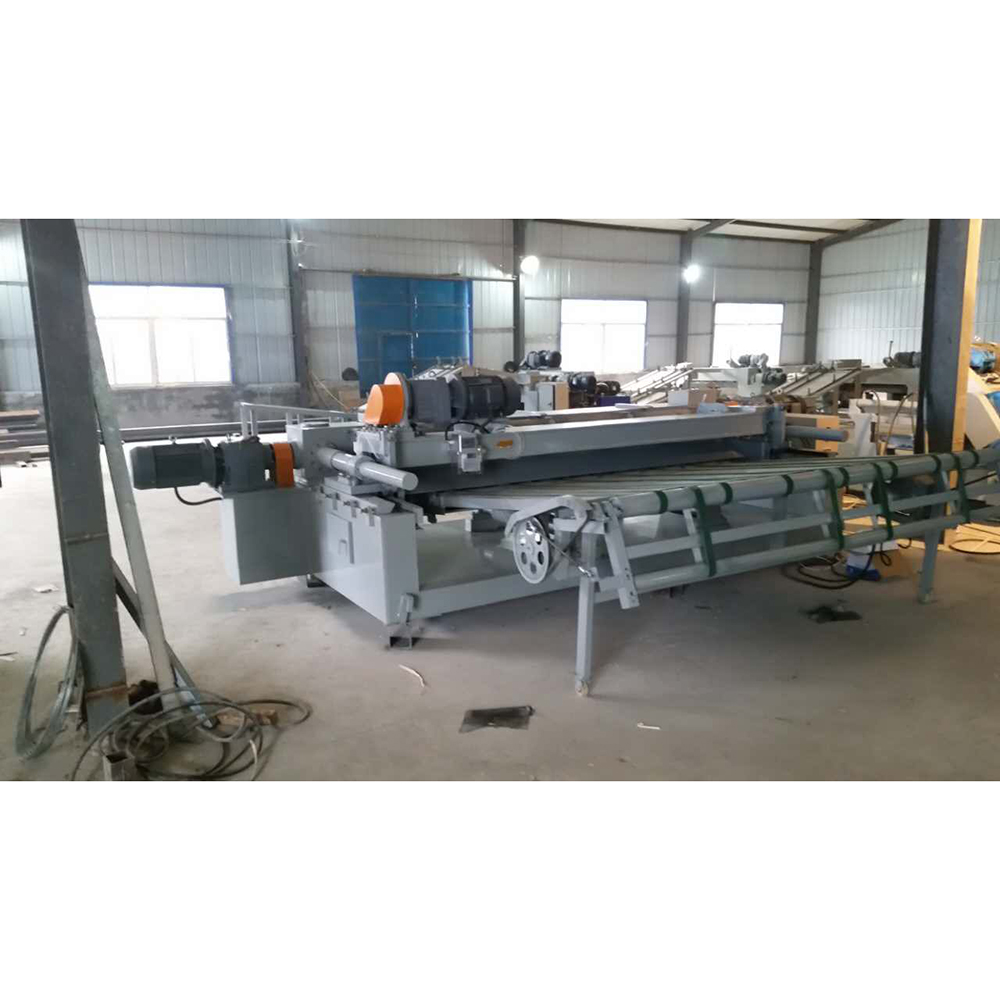

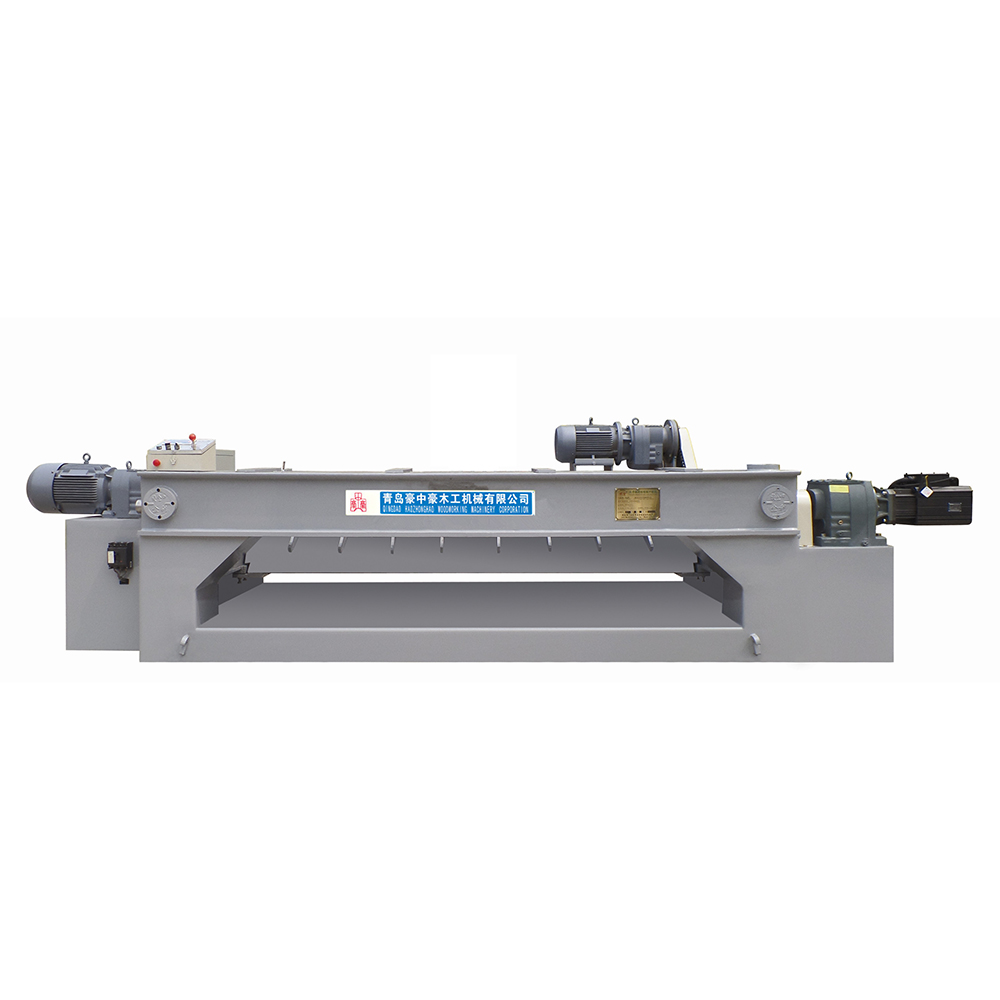

Veneer peeling lathe is one of the main machine for plywood production. It can rotate the remaining wooden core with a diameter of less than 500mm by single spindle peeling machine and continue to peel the veneer. The same wood core can change the blade gap through the computer numerical control system to peel the face and core veneer. It is high production efficiency and greatly improve the utilization rate of wood.
Description
| Model | XQJ2704 |
| Max cutting diameter | Φ500mm |
| Final wood core diameter | Φ36mm |
| Cutting length (mm) | 2000-2600mm |
| Length of knife | 2700mm |
| Thickness range of veneer | 0.3-3mm |
| Cutting speed | 35m/min |
| Diameter of driving roller | 118mm |
| Diameter of pressure bar roller | 118mm |
| Power of driving roller | 7.5kw*2 |
| Power of pressure bar roller | 7.5kw*2 |
| Power of feeding power | 15kw servo motor |
| Total power | 53kw |
| Daily output | 20-50m³ |
| Overall dimensions | 5500*1800*1400mm |
| Weight | 6500kg |
Characteristics:
1.High performance NC system control feeding, peeling the board smoothly.
2.The screw and nuts of feeding system adopt magnesium aluminum alloy, copper, it is durable.
3.The panel thickness is changeable during peeling process.
4.Slide block and screw adopt integrative guide rail, precise and save energy.
5.Have both peeling and clip function, improve working efficiency.
6.Feeding system adopts servo motor.
7.Without conveyor belt to feed out veneer.
