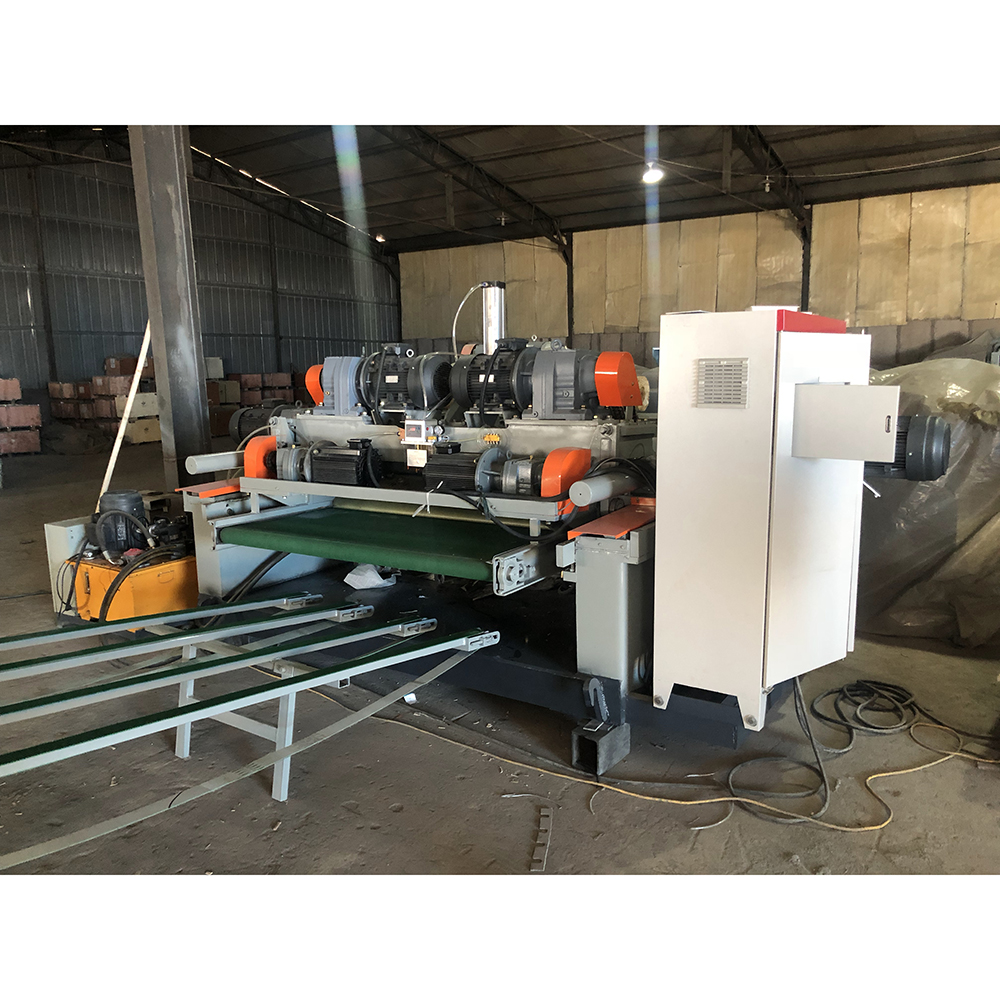

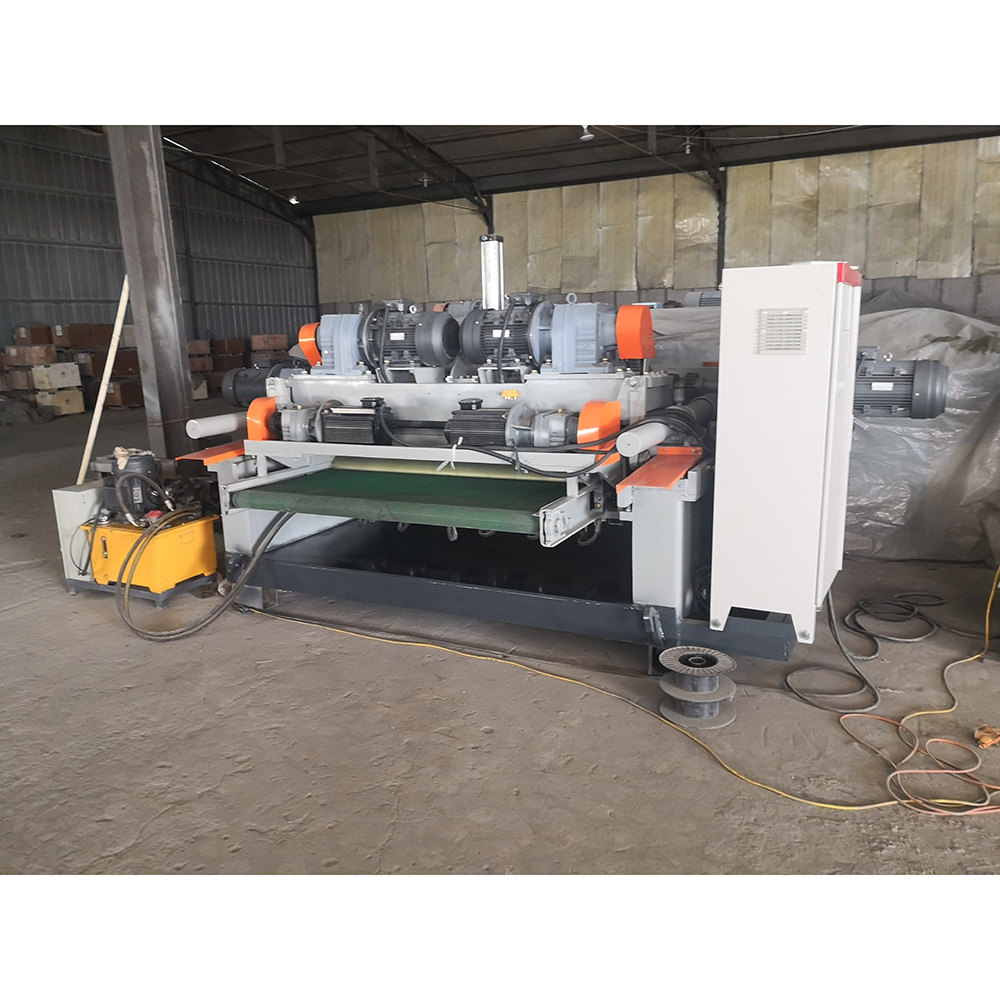

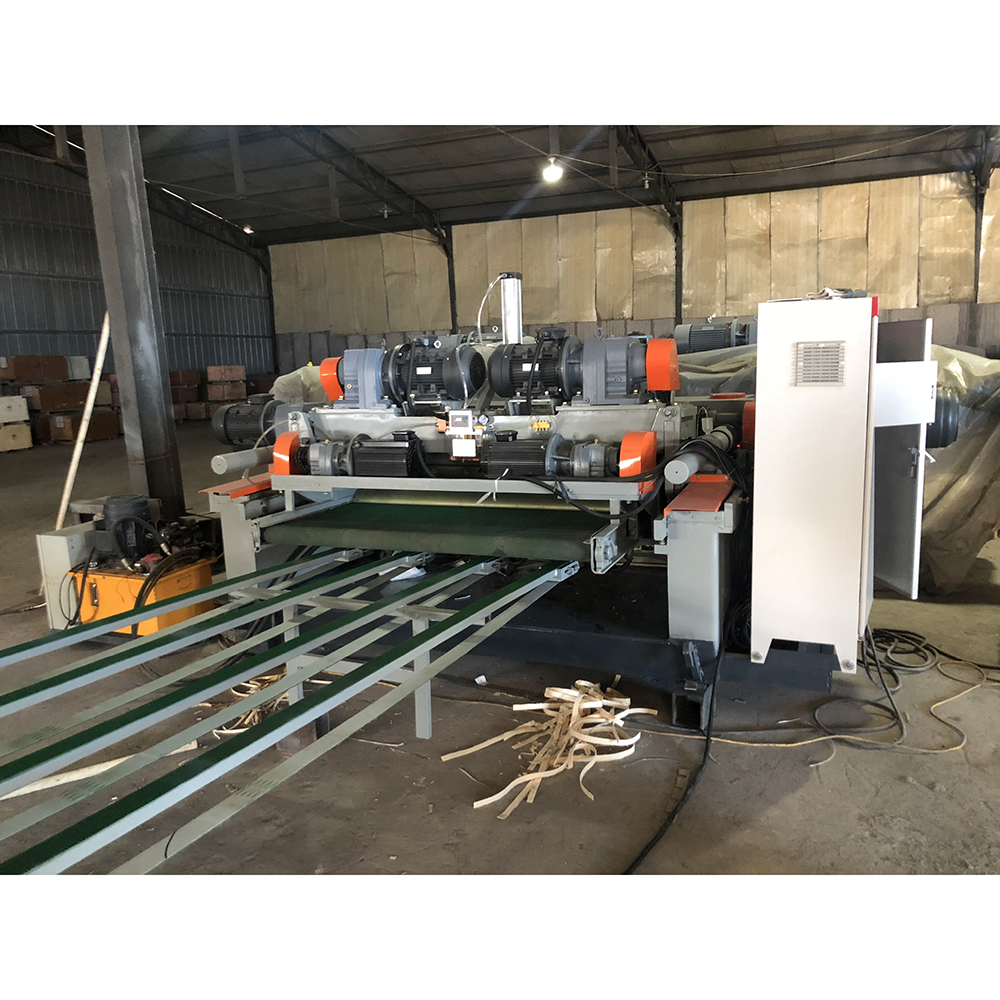

Peeling Machine XQJQ1504 China Woodworking Machine Manufacturer
High performance NC system control feeding, peeling the board smoothly.
Description
| Model | XQJQ1504 |
| Max. peeling length: | 1500mm |
| Max. peeling diameter | Φ400mm |
| Final wood core diameter | Φ28mm |
| Veneer thickness | 0.8-4mm |
| Veneer feed-out line speed | 45m/min |
| Total power | 30.5kw |
| Daily output | 30-40m³ |
| Dimensions | 4500*1600*1380mm |
| Weight | 4500kg |
Characteristics:
1.High performance NC system control feeding, peeling the board smoothly.
2.The screw and nuts of feeding system adopt magnesium aluminum alloy, copper, it is durable.
3.The panel thickness is changeable during peeling process.
4.Slide block and screw adopt integrative guide rail, precise and save energy.
5.Have both peeling and clip function, improve working efficiency.
6.Feeding system adopts servo motor.
7.Without conveyor belt to feed out veneer.
