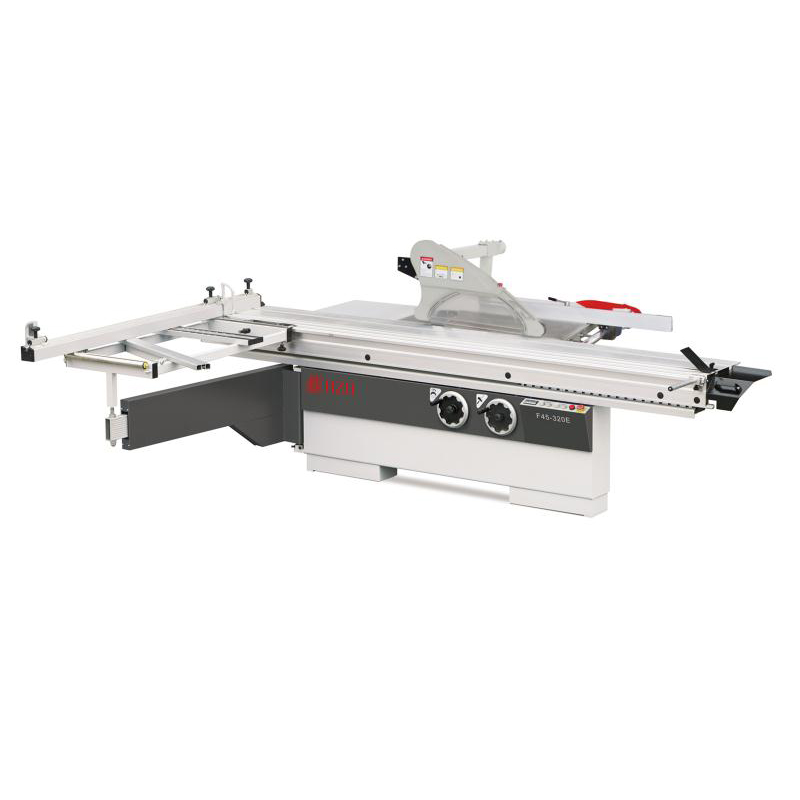

Panel Saw F45-320E China Woodworking Machine Manufacturer
1.Manual control for saw blade lifting and tilting 0-45º.
2.Digital display can be accurate to 0.1 degree.

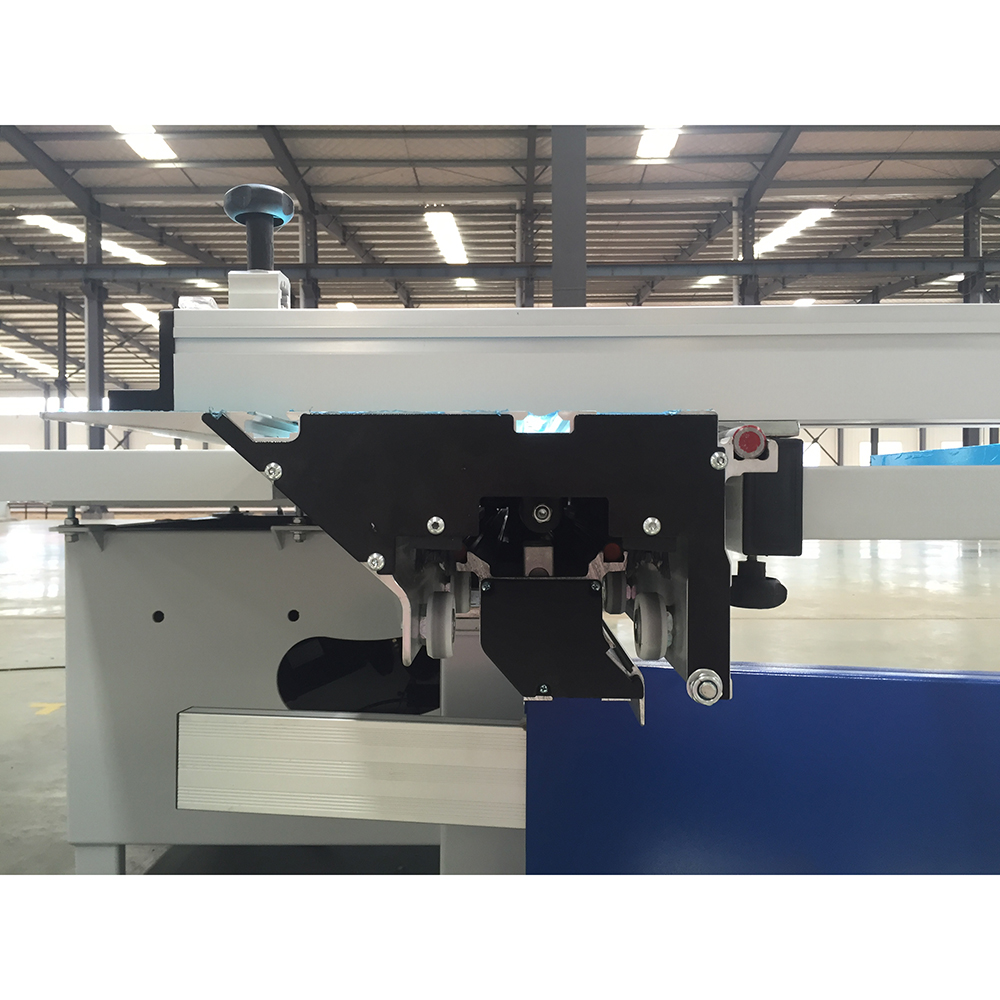

3.Round steel bar sliding table is with solid double T-slot and multi-point locking system makes it more convenient.
Description

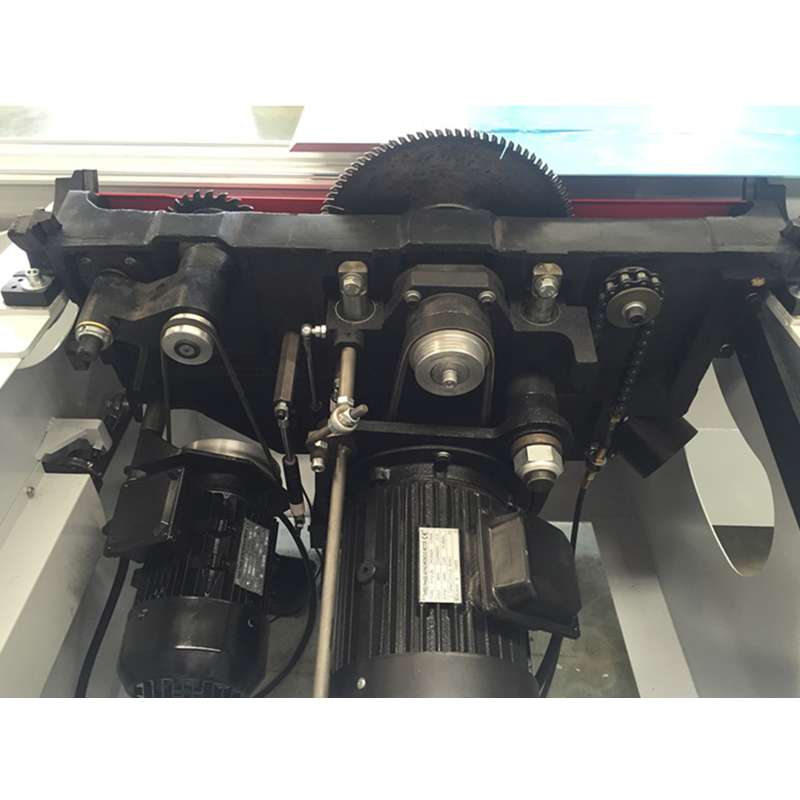

Sturdy and quiet operational internal structure: the whole finished assembly spindle is adopted dynamic balance processing.
Crosscut ruler is with V design which eliminate the gap,ensure the cutting precision, the plate is firm and the pushing plate is flexible.
| Model | F45-320E |
| Dimensions of sliding table | 3200*430mm |
| Max sawing thickness | 95mm |
| Max. length between saw and rip fence | 1250mm |
| Power of main saw spindle | 5.5kw |
| Rotary speed of main saw spindle | 4400/5600r/min |
| Diameter of main saw | Φ350mm |
| Diameter of main saw spindle | Φ30mm |
| Power of grooving saw | 0.75kw |
| Rotary speed of grooving saw | 8500r/min |
| Diameter of grooving saw | Φ120mm |
| Diameter of grooving saw spindle | Φ22mm |
| Tilting saw blade | 45° |
| Dimension | 3200*1100*840mmm |
| Weight | 800kg |
