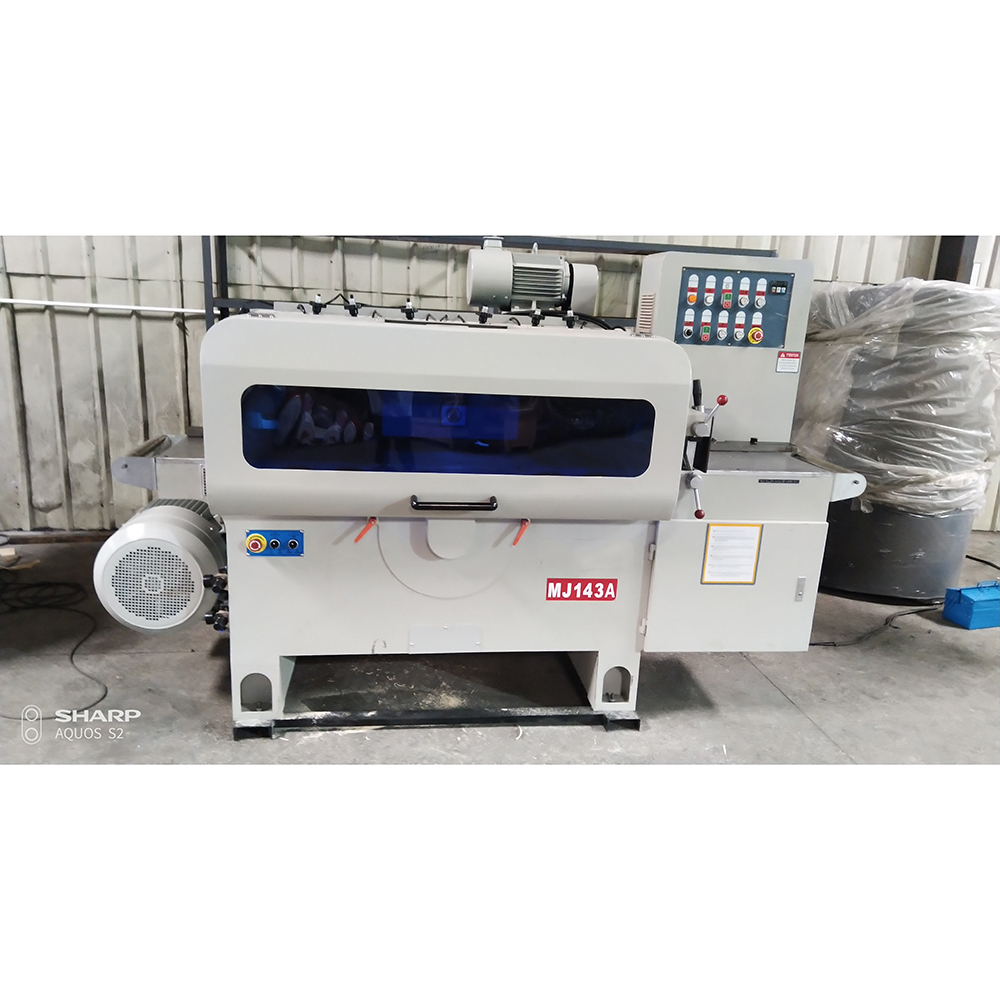

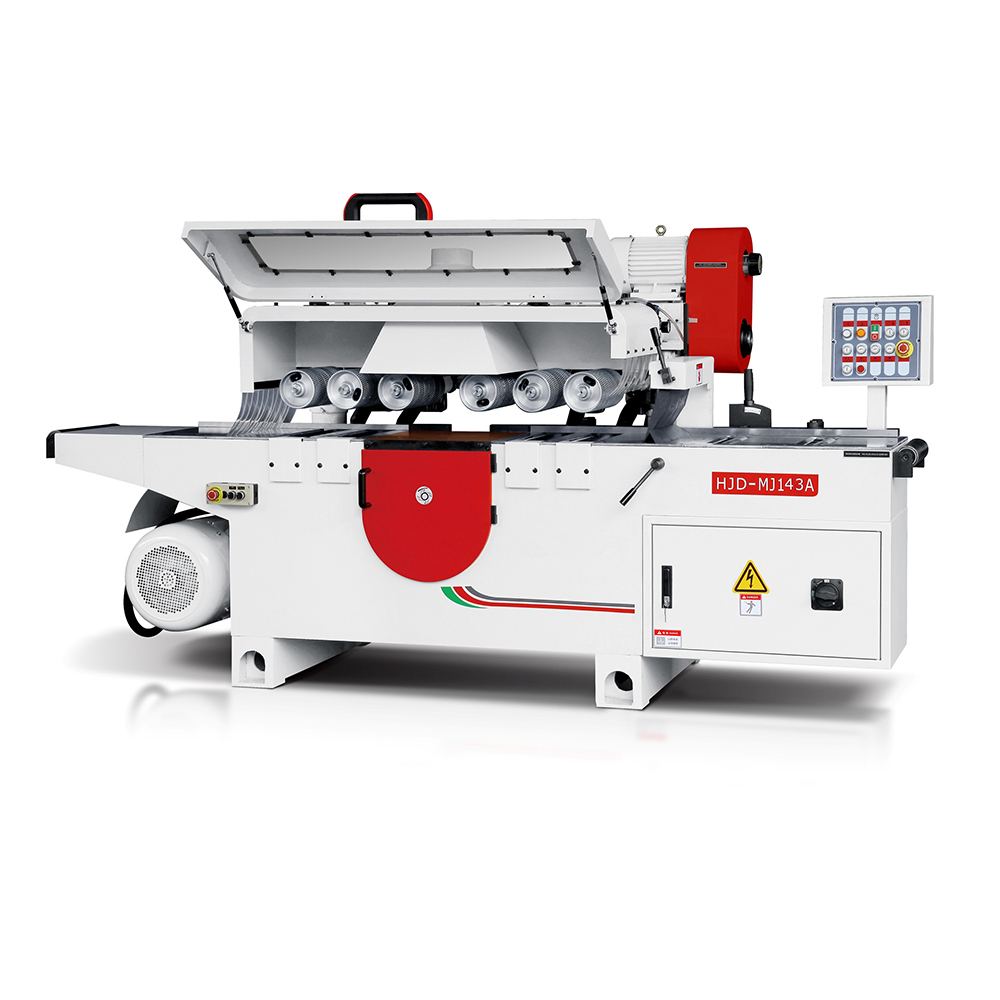

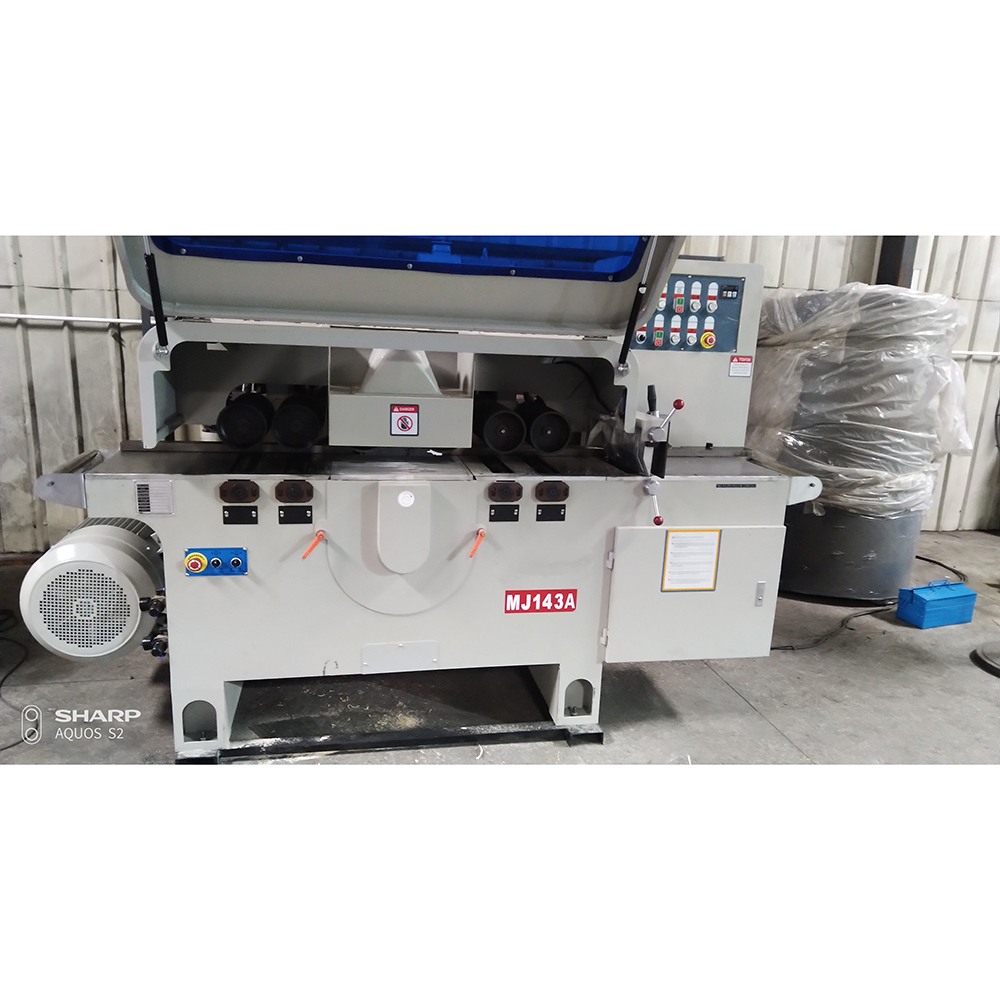

Multiple Rip Saw MJ143 China Woodworking Machine Manufacturer
Multiple rip saw has the function of rip cutting the logs or wood boards into wood chips or wood slat. It is a machine with full automatic feeding and high-precision cutting. The saw cutting size can be adjusted according to personal needs and can saw cutting into square timbers, bar wood or plates at a time according to the adjusted size.
Description
| Model | MJ143 |
| Max. working width | 320mm |
| Max. working thickness | 6-110mm |
| Max. saw blade diameter | 400mm |
| Feeding speed | 5-21m/min |
| Min working length | 400mm |
| Sawing shaft diameter | Φ50mm |
| Sawing shaft rotation | 3820r/min |
| Sawing motor power | 37kw |
| Sawing shaft lifting power | 0.37kw |
| Feeding motor power | 4kw |
| Elevating motor power | 0.75kw |
| Total power | 42.12kw |
| Suction tubes diameter | 160mm*1+140mm*1 |
| Supply air | 0.6MPa |
| Dimension | 2750*1350*1800mm |
| Weight | 1900kg |
- This machine is our own design, manufacturing and proprietary products to industrial machinery. (Already have four patents).
- It has the function of rip cutting the logs or wood boards into wood chips or wood slat. It is a machine with full automatic feeding and high-precision cutting. The saw cutting size can be adjusted according to personal needs and can saw cutting into square timbers, bar wood or plates at a time according to the adjusted size.
- It has a high degree of automation, stable performance and high efficiency features: This machine tool efficiency is 8 times higher than the ordinary band sawing machine. If used the ordinary band sawing machine, it needs 12 operators, but using this machine tool only needs 2 operators, and can reduce employment of 10 people and save manpower resources greatly.
- It has high precision, high material productivity, material saving and energy saving features.
- The left side of the machine tool is installed with a fine-tuning control switch, so the operator can fine tune the upper and bottom saw blades under the visual situation.
- It is reasonable in structure, safe, reliable, practical and environmental friendly, has beautiful shape and with high efficiency energy saving feature. It is very suitable for the wood processing of blackboard, finger joint laminated board, plates, square stock, etc. It’s the construction, furniture, wood processing industries’ most ideal equipment.
