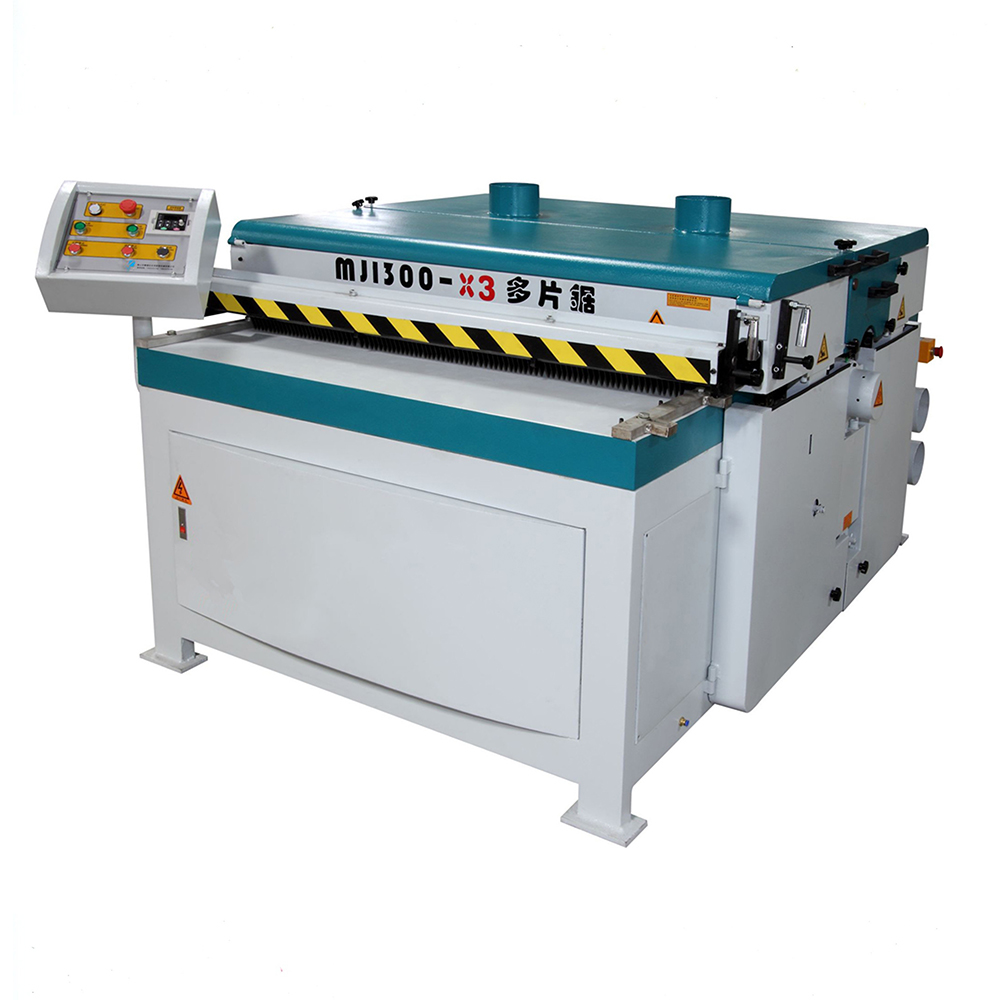

Multiple Rip Saw

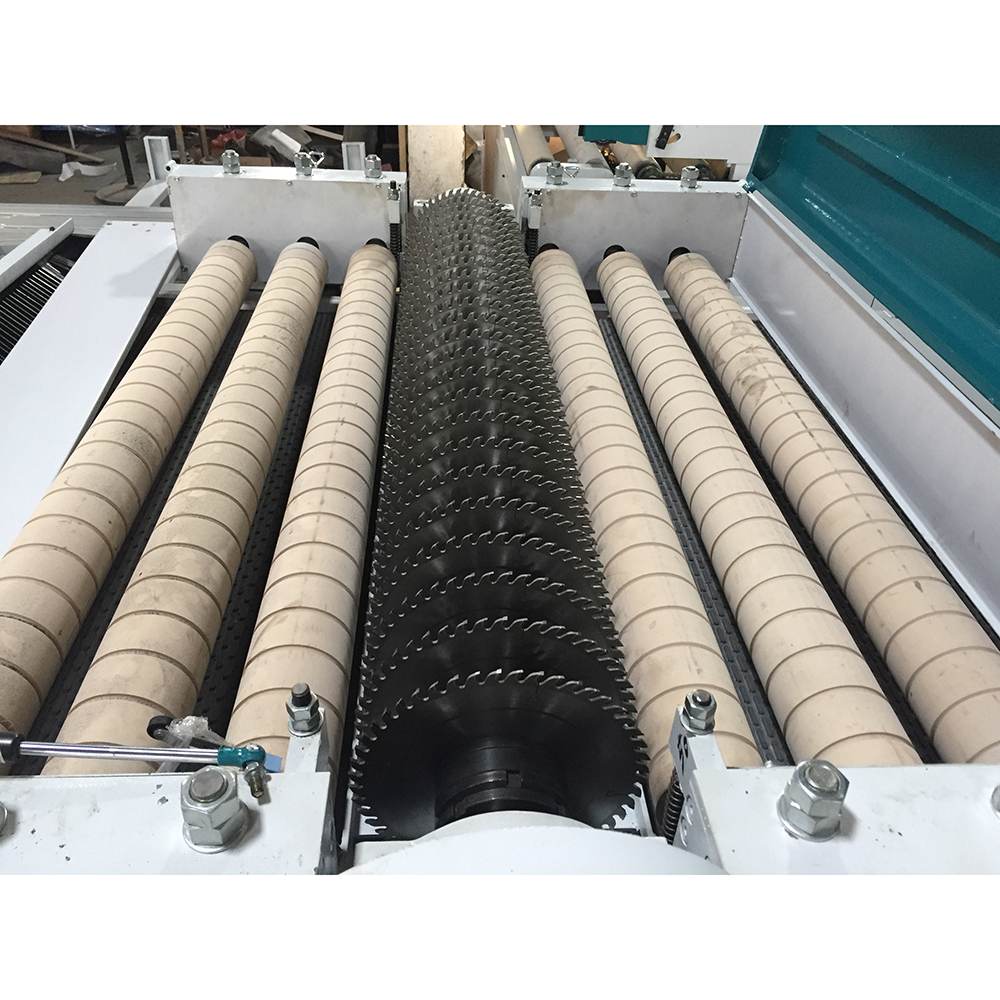

Multiple rip saw can be used to grooving on solid wood, MDF, composite board and non wood filler, or cut the board into narrow strips.
Description
| Model | MJ1300-X3 |
| Max Working width (mm) | 1260 |
| Working thickness(mm) | 5-25 |
| Min. Working Length (mm) | 400 |
| Spindle Speed (r/min) | 2600 |
| Spindle diameter mm | 74mm |
| Saw Blade Diameter (mm) | 205 |
| Max. Number of Saw Blades (pcs) | 60 |
| Power of Spindle Motor (kw) | 15 |
| Power of Feeding Motor (kw) | 1.5 |
| Total Power of Installed Motor (kw) | 16.5 |
| Feeding Speed (m/min.) | 0-12 |
| Pair Number / Number of Feeding Roller | 6units/12 pieces |
| Diameter of dust holes | φ150mm*4 |
| Voltage | 380V 50Hz 3Phase |
| Overall Dimensions (mm) | 2030*1800*1230 |
| Weight (kg) | 2200 |
The spindle of saw can lift and down, which is suitable for different kinds of wood material.

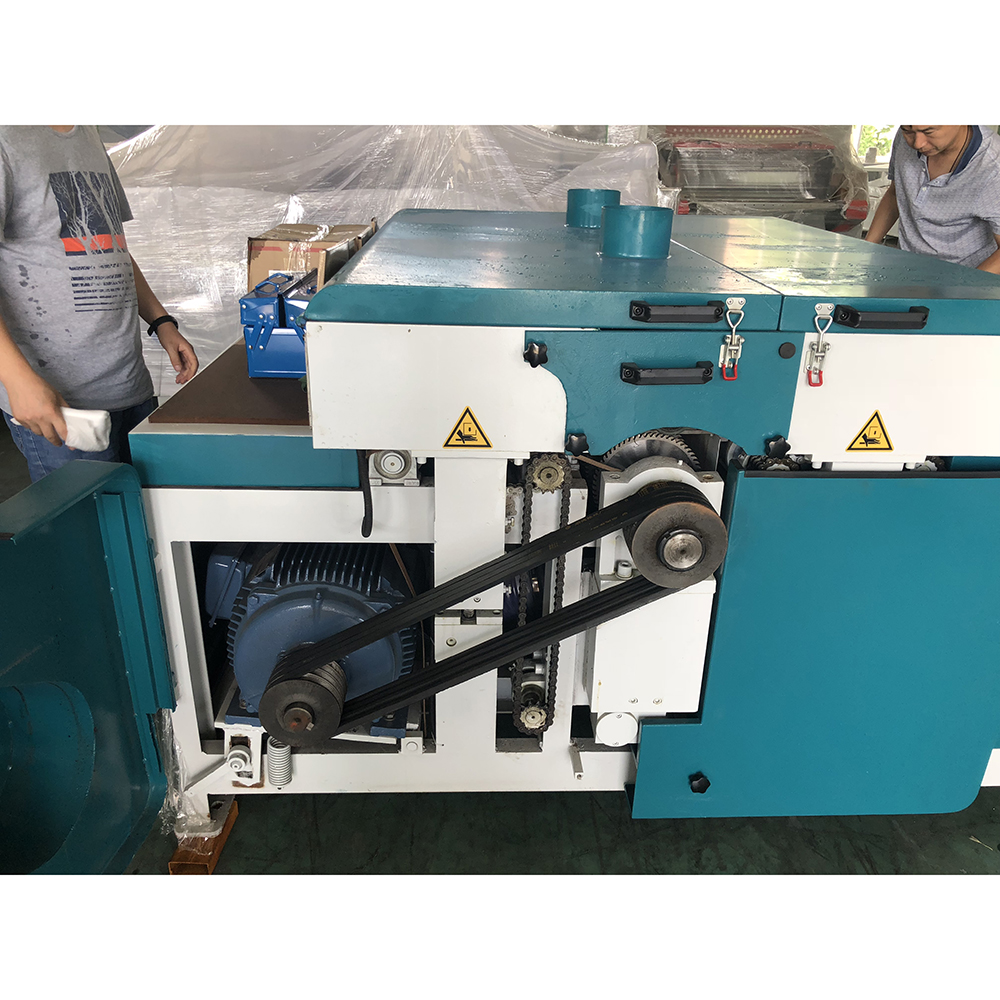

Welding machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
Longer feeding platform and reference guide can make sure of high process precision.

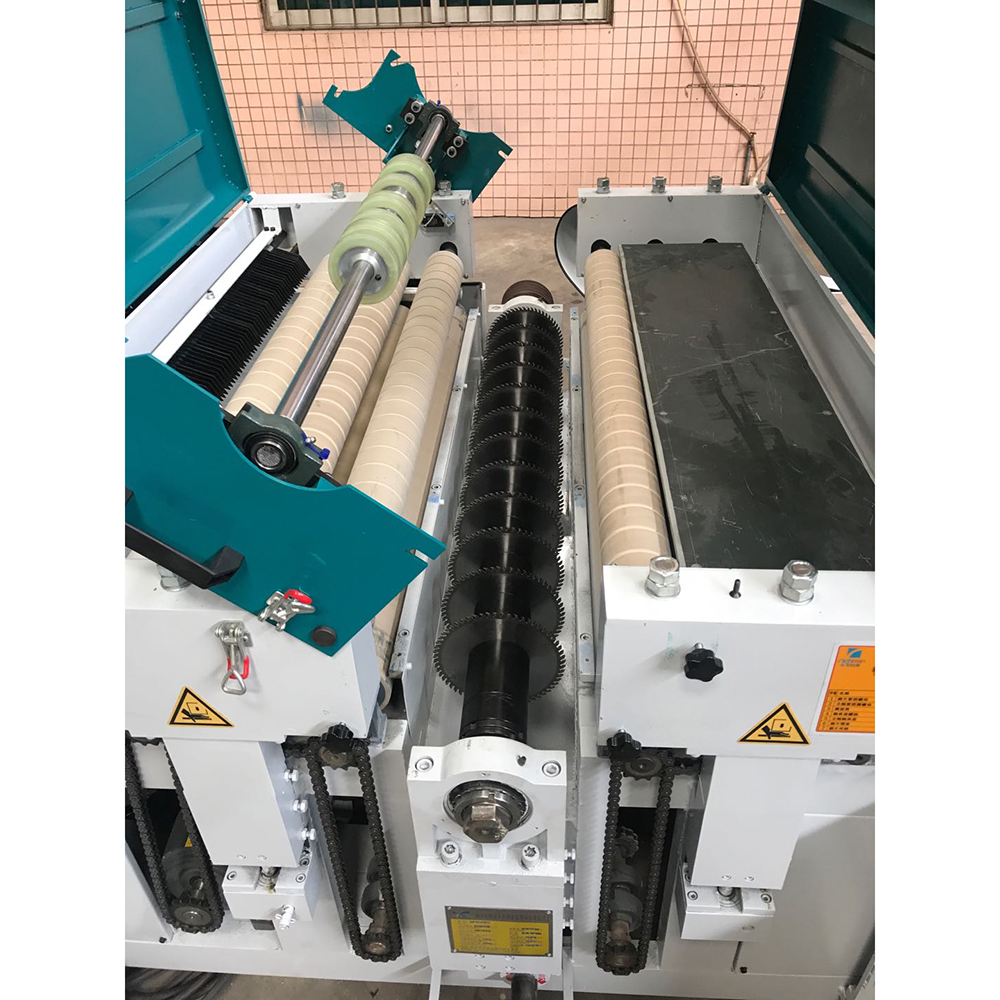

Feeding platform and outfeed platform separately has 6 units of active feeding rollers to make sure of smooth feeding power.
The upper press rollers make all the press rollers press the panel tightly and make sure of smooth feeding.
Large dust removing cover can remove the dust thoroughly and make sure of good working surroundings.
