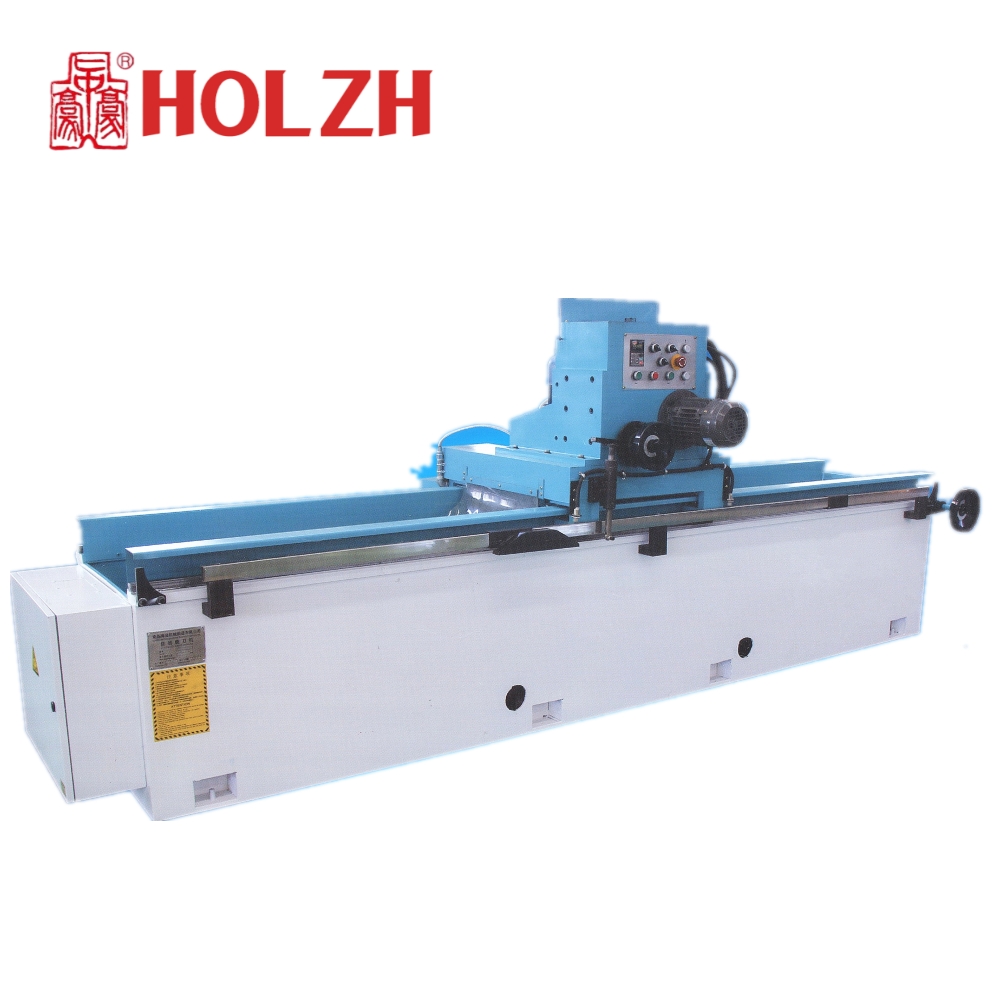

Knife Grinding Machine MF2542/MF2530
This knife grinding machine mainly grind all type of linear knives, like guillotine knives，slicer knife, peeling machine knife, Granulator knife, cutting paper knife and Shearing Blades.
Description
| Model | MF2530 | MF2542 |
| Max grinding length | 3000mm | 4200mm |
| Working table size | 3000*180mm | 4200*180mm |
| Grinding head power | 4kw | 7.5kw |
| Small grinding head | 1.5kw*2 | 1.5kw*2 |
| Sliding power | 0.75kw | 0.75kw |
| Linear speed of grinding wheel | 15m/s | 15m/s |
| Sliding speed of grinding plate | 0-25m/min | 0-25m/min |
| Tilting range of the working table | ±90° | ±90° |
| Speed of the sliding plate | Stepless speed change | Stepless speed change |
| Form for grinding wheel | Cup Style | Cup Style |
| Size of grinding wheel (mm) | Φ200x110x32 | Φ200x110x32 |
| Dimension | 5500*1400*1400mm | 6500*1400*1400mm |
| Weight | 3000kg | 3500kg |
| Voltage | 380V 50Hz | 380V 50Hz |
1 This knife grinding machine mainly grind all type of linear knives, like guillotine knives，slicer knife, peeling machine knife, Granulator knife, cutting paper knife and Shearing Blades.
2 This machine body is a design of gantry body, with the high-quality steel weld; stress relieved eliminating the internal stress. The body has high strength and good rigidity. No shrinking in center of body.
3 Job accuracy of machine is 0.01mm
4 The worktable is the electromagnetic chuck. It is very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear. The width of the magnet is 180mm
5The vertical movement of the grinding head adopts the ball screw, to ensure the accuracy.Also the type of vertical slide: Conventional
6. The rail is steel strip
