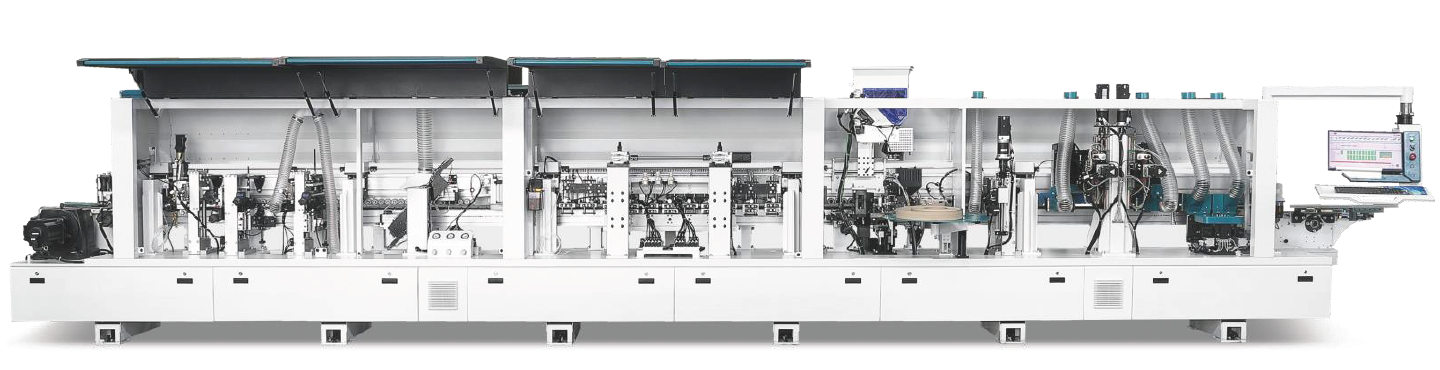

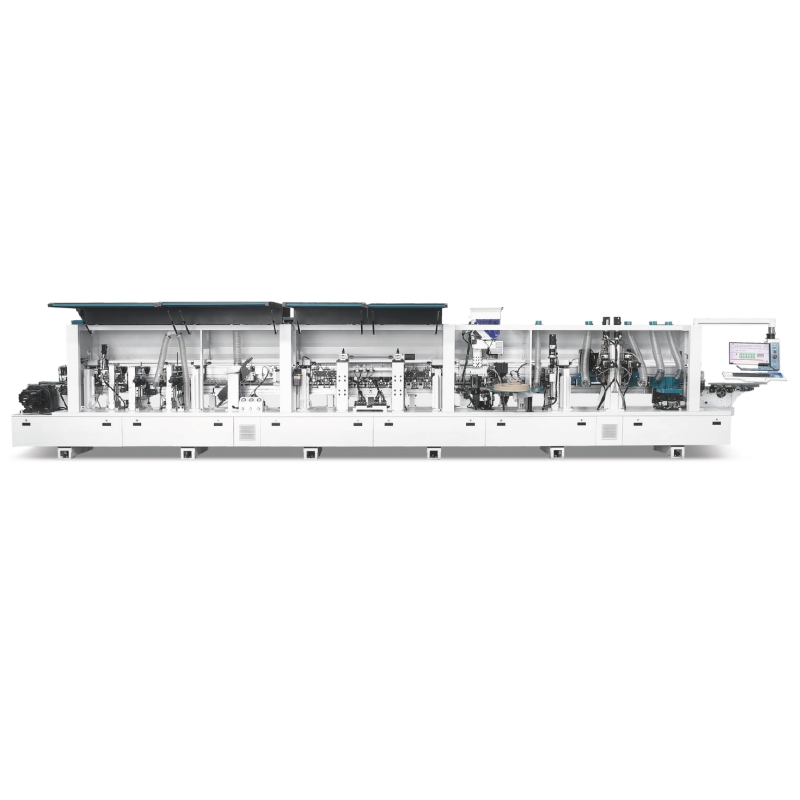

J type Edge Banding Machine HZH-J1 China Woodworking Machine Manufacturer

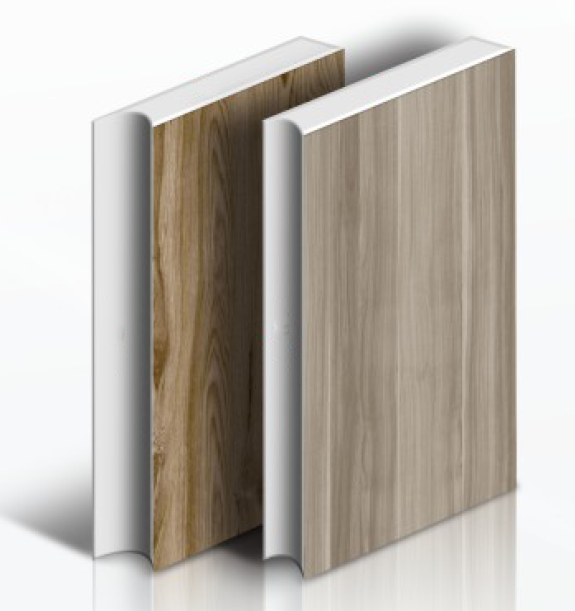

Ideal system with ease and precision for panel edge banding, MDF, particle board, OSB, solid wood, and aluminum honeycomb etc.
Description

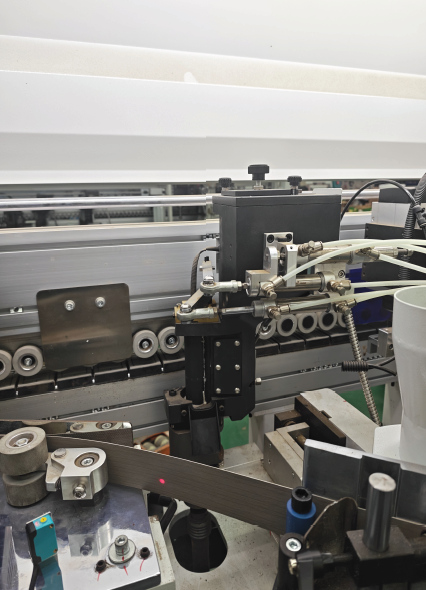

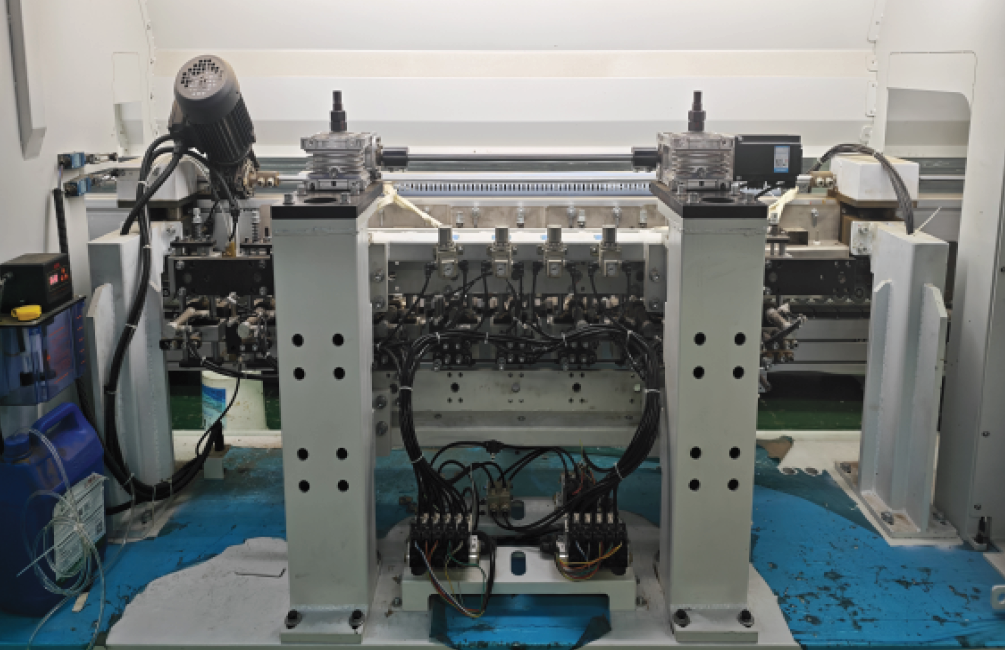

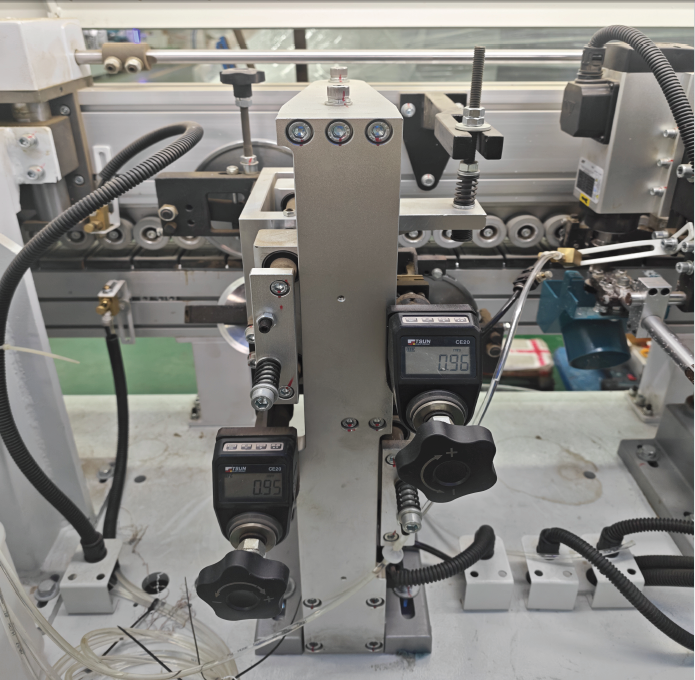

Pre-milling~J Pre-milling~ARC Pre-milling~ Gluing~J Bevel gluing~ trimming ~bevel End cutting~ trimming~ bottom scraping ~ top Scraping~Buffing1~Buffing2
| Model | HZH-J1 |
| Edge thickness*width | 0.72*58mm J type
0.72*33mm C type |
| Work piece thickness | 18-25mm |
| Panel length | >250mm |
| Panel width | >120mm |
| Feeding speed | 10m/min |
| Total power | 41.6kw |
| Working pressure | 0.6Mpa |
| Outline size | 10300x980x1700mm |
| Net Weight | 4500kg |
