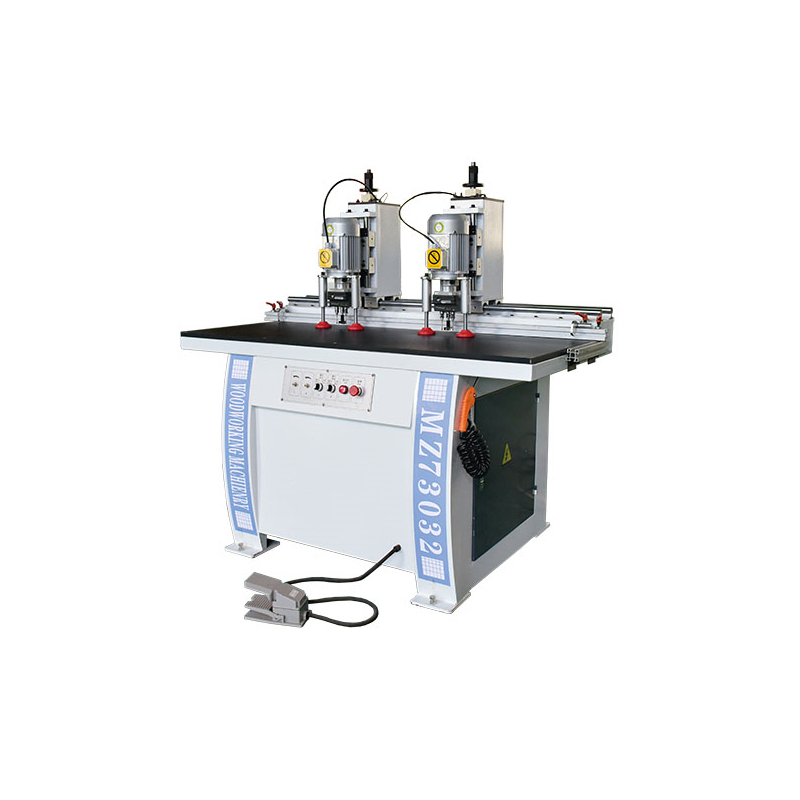

Hinge Drilling Machine MZ73031/MZ73032 China Woodworking Machine Manufacturer
The Hinge Drilling machine is a high-performance wood boring machine equipped with a pure copper core motor, adjustable speed, and precision drilling capabilities. It supports independent drill control, manual dust-free operation, and is designed for woodworking professionals.
Description
| Model | MZ73031 | MZ73032 |
| Max drilling diameter | 50mm | 50mm |
| Max drilling depth | 60mm | 60mm |
| Hole spacing | 220-815mm | 220-750mm |
| Number of drill | 3 Spindles | 3Spindles*2 heads |
| Spindle speed | 2840r/min | 2840r/min |
| Motor power | 1.5kw | 1.5kw*2 |
| Air pressure | 0.6-0.8MPA | 0.6-0.8MPA |
| Dimension | 800*750*1700mm | 1700*850*1700mm |
| Weight | 150kg | 170kg |
