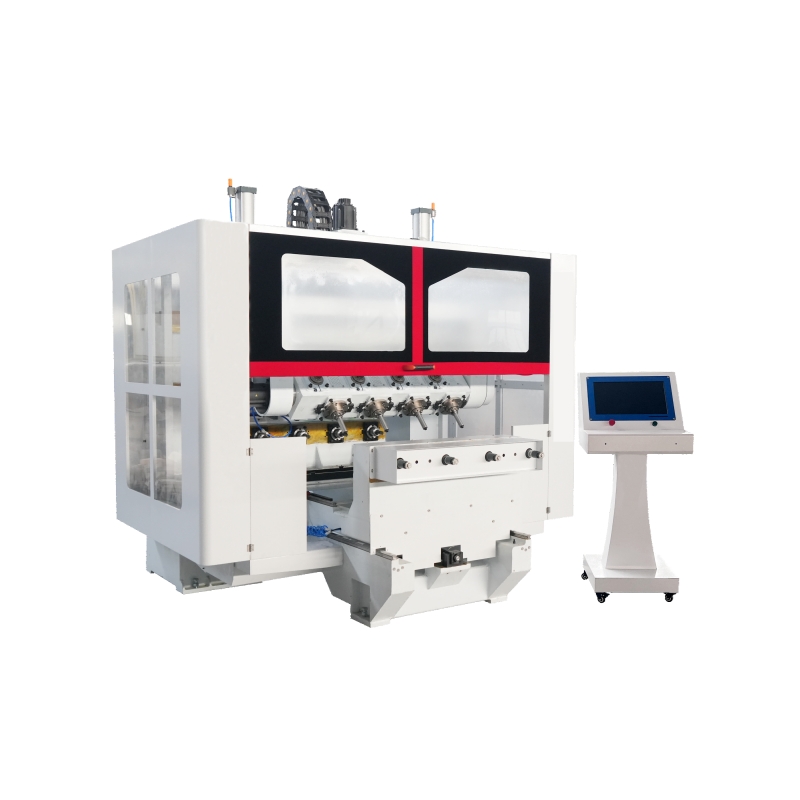

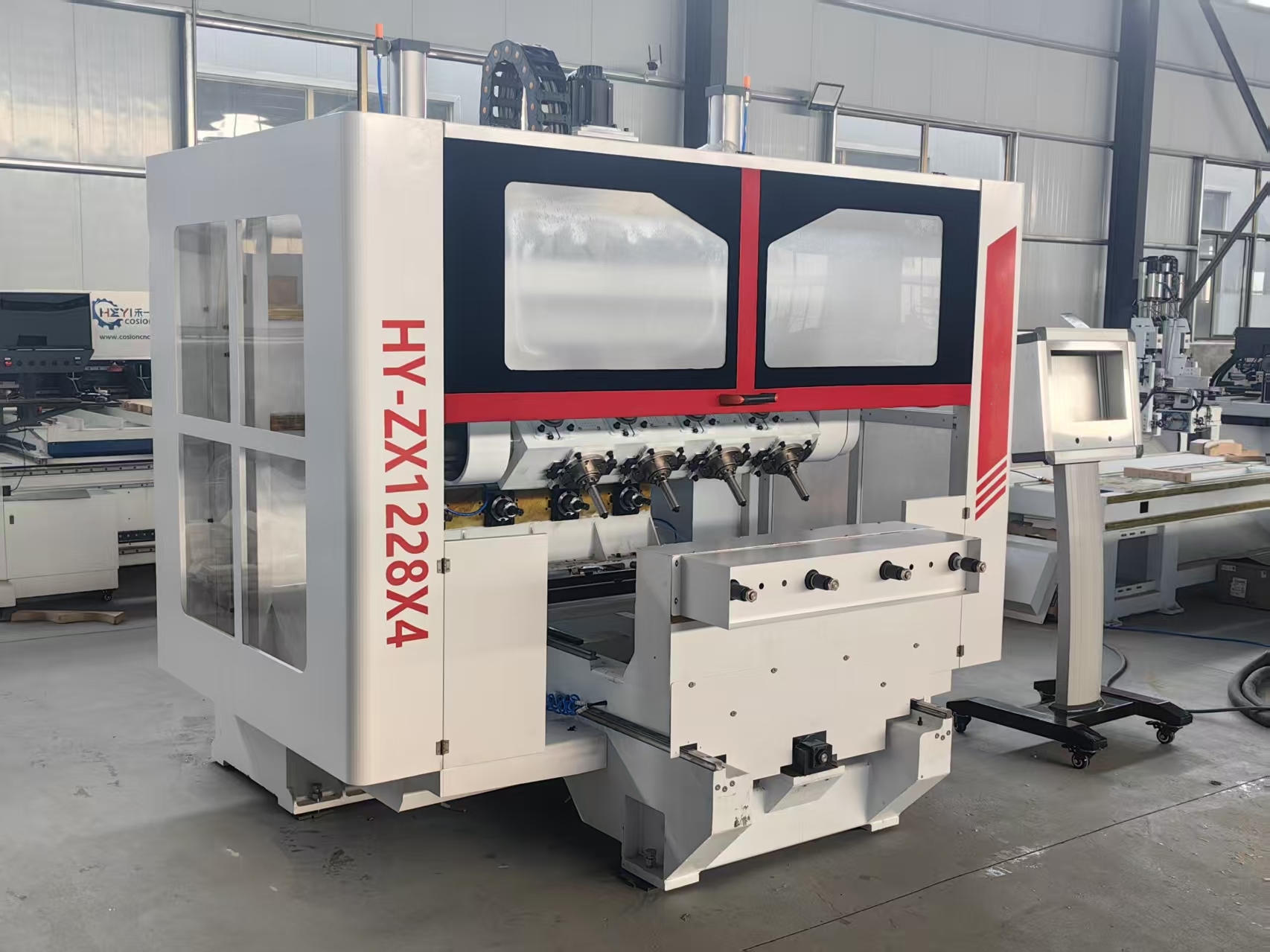

Five-Axis Drilling and Milling Machine Center HY-ZX1228X4
This advanced Five-Axis Drilling and Milling Machine Center is an efficient solution for complex part machining. By integrating milling, drilling, and engraving, it boosts production efficiency 3-5 times over traditional centers. Its five-axis linkage ensures high precision on all surfaces and flexible adaptation to curved shapes. With optimized cutting conditions that prevent tool interference, it guarantees superior quality and significant productivity gains for complex woodworking tasks.
Description
Parameter
| Model | HY-ZX1228X4 | HY-ZX1228X4 |
| Max size of work-piece | 1200mm*280mm | 1200mm*280mm |

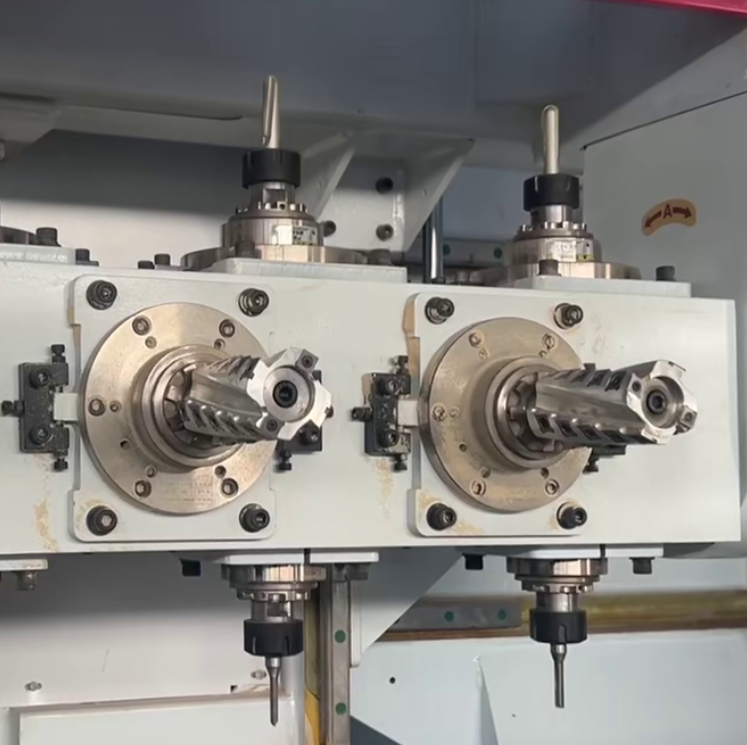

| Carving and milling spindle motor | 5.5KW主*8 | 5.5KW主*16 |
| Linear rail & Slider | Taiwan Hiwin | Taiwan Hiwin |
| Motor and driver | Servo | Servo |
| Programming software | UG/PowerMill | UG/PowerMill |
| Electrical components | Schneider | Schneider |
| Reducer | Haimenote Inverter | Haimenote Inverter |
| Air pressure | 0.6-0.8MPA | 0.6-0.8MPA |
| Weight | 5000KG | 6500KG |
| Overall size | 2900*2400*2450mm | 4300*2400*2450mm |
Characteristic:
1.High precision machining:
Through five axis positioning, every detail in the machining process can be preciselycontrolled to ensure the stability of product quality.Its high-precision machining capability ensures consistenticcuracy on all surfaces of the workpiece,making it particularly suitable for complex partsthat require high-precision machining.
2.High production efficiency:
able to complete multiple processes such as milling, engraving, drilling, and slottingin one go, with production efficiency usually higher than that of ordinary machining center 3-5 times,especiallyfor the processing of complex parts,the eficiency improvement is more significant,In addition,the five axis machiningcenter is clamped in one go completing multiple processing steps reduces the number of processes and cdlamping,further improving production efficiency
3.High flexibility:

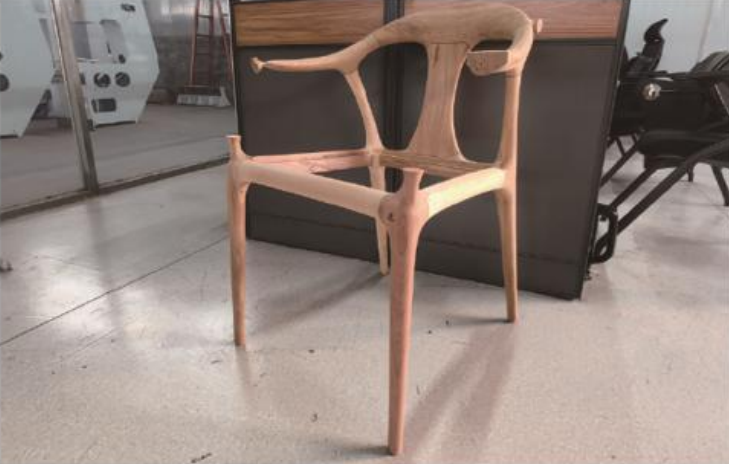

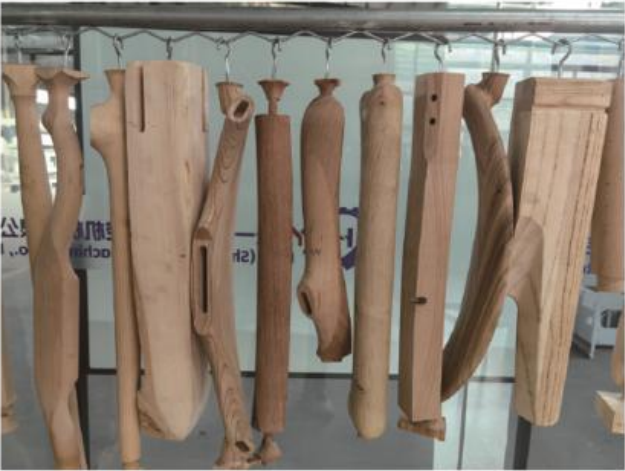

suitable for processing complex shaped parts,such as curved surfaces,curved surfaces,mortiseand tenon structures, etc. Its multi axis linkage characteristics enable machiningThe process is more flexible, andsimply changing the CNC sequence can adapt to different machining needs.
4.Improving cutting conditions:
Compared to ordinary three-axis machining centers,the five axis woodworking machiningcenter has two additional rotation axes that can keep the tool at maximum speed.Excelent cutting state,effectively avoidingtool interference,reducing clamping frequency, and improving machining quality and efficiency.
