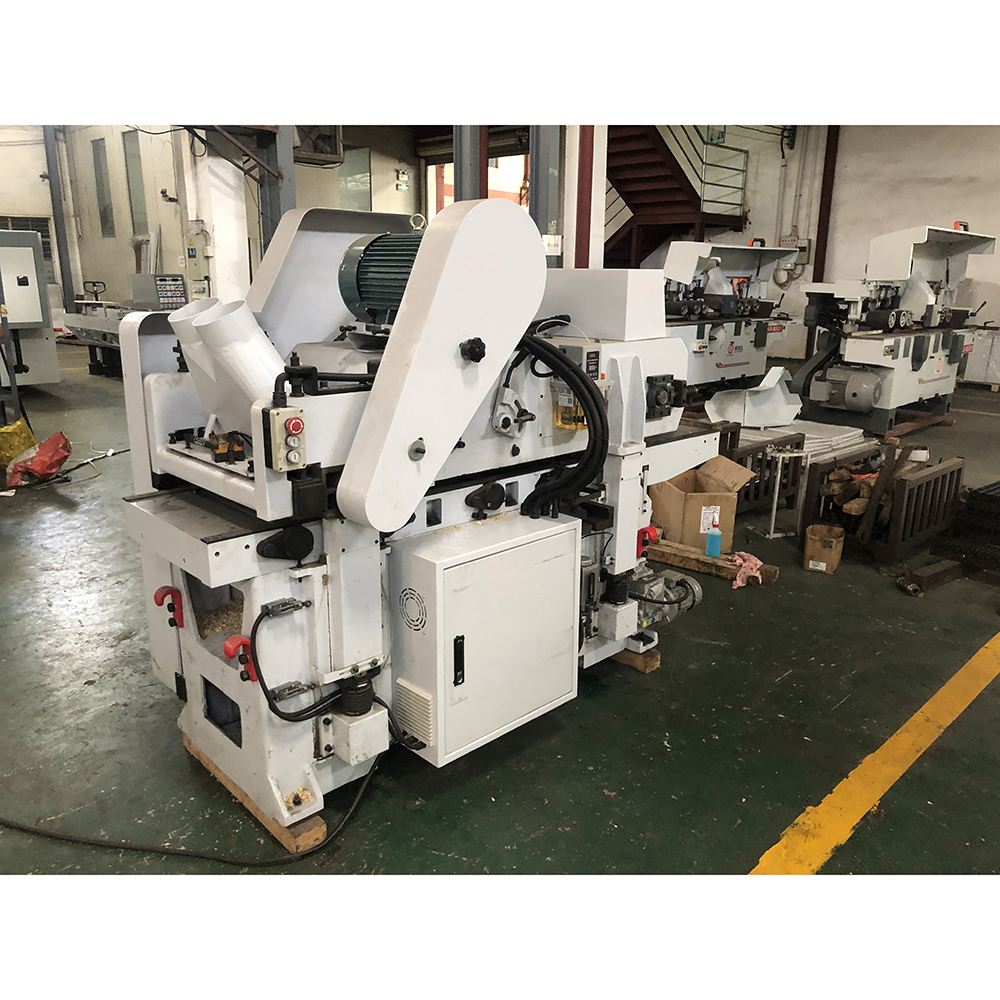

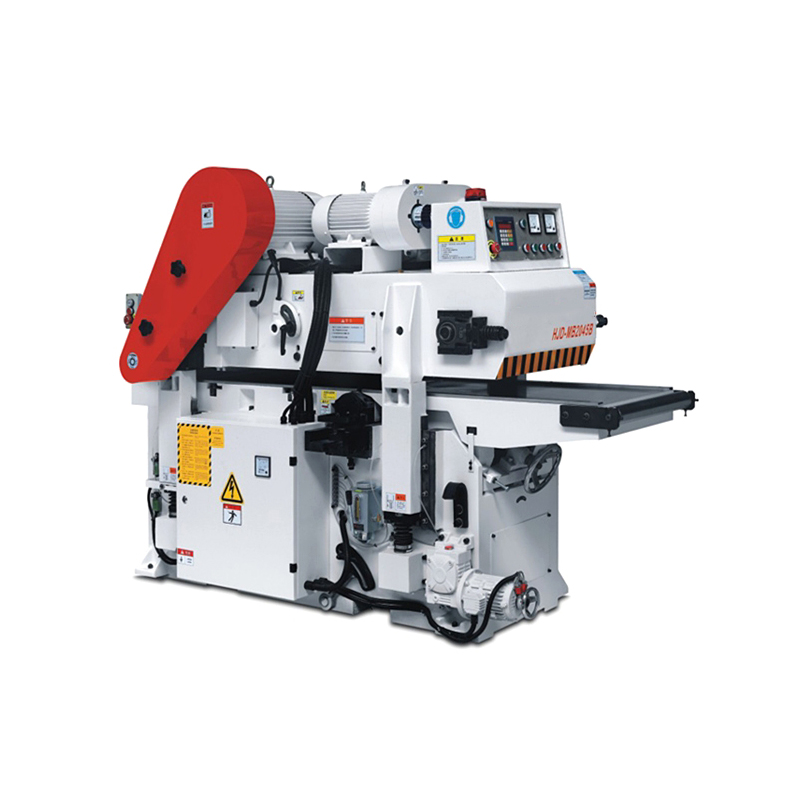

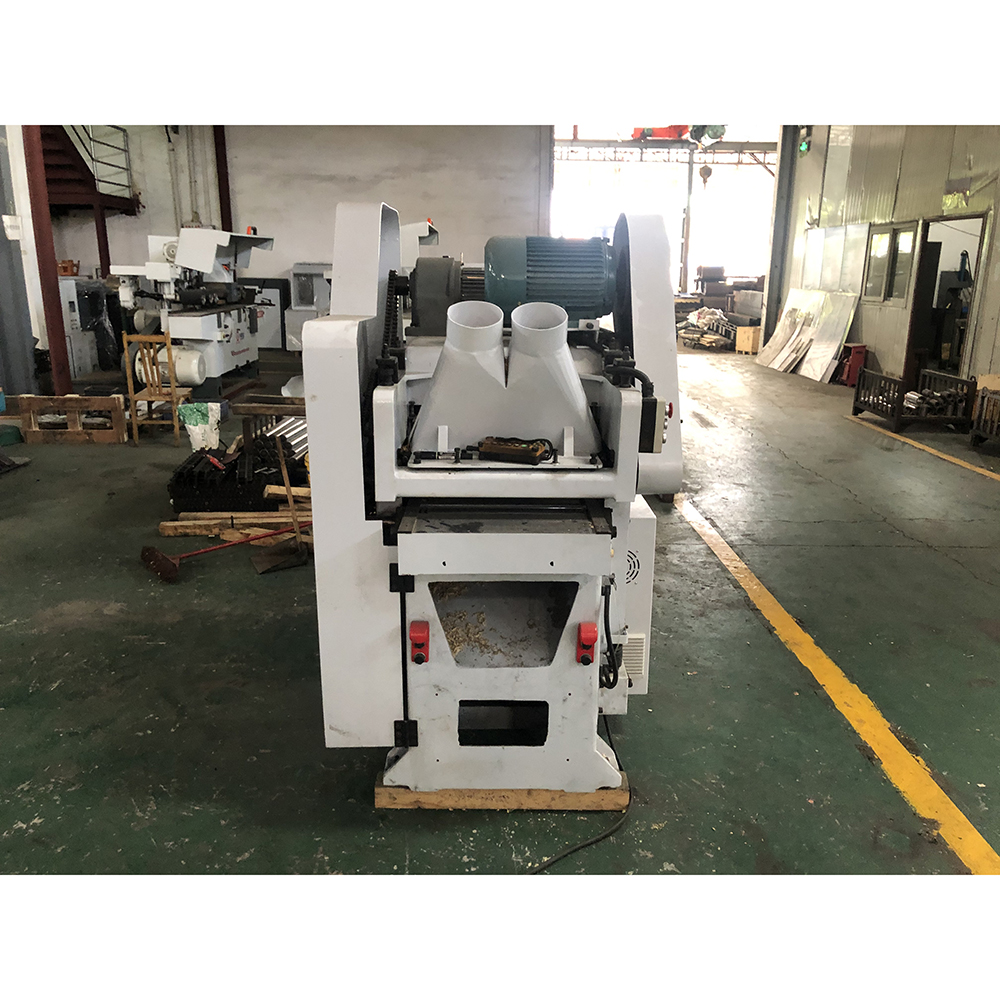

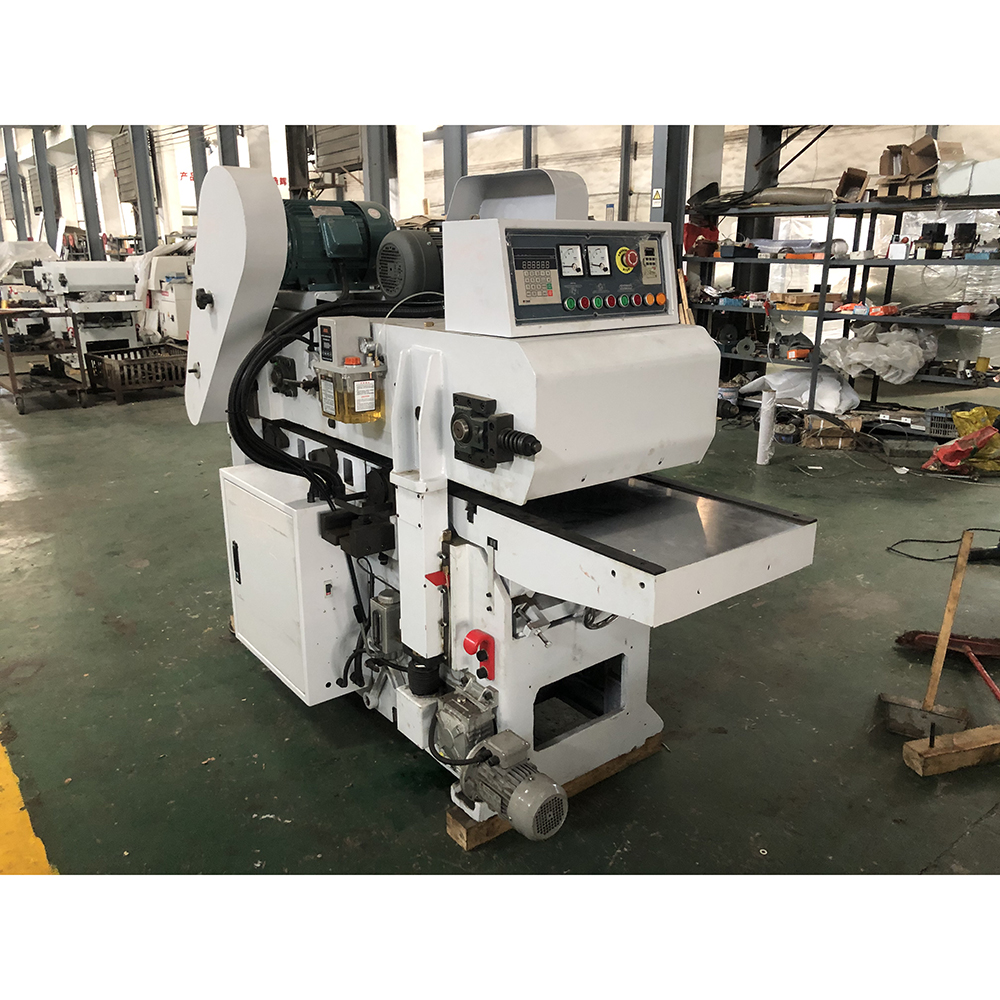

Double Side Planer
This double side planer offers a max working width of 450-610mm and a working thickness range of 10-200mm, suitable for various woodworking needs. With feeding speeds of 7-30m/min and top spindle power options of 7.5kw or 11kw, it ensures efficient performance. The machine is easy to operate and features a spiral cutter head, making it ideal for precision planing in industrial settings.
Description
| Model | MB2045A | MB2061A |
| Max. working width | 450mm | 610mm |
| Min. working length | 320mm | 320mm |
| Working thickness | 10-200mm | 10-200mm |
| Feeding speed | 7-16m/min | 7-16m/min |
| Spindle rotation speed | 4500r/min | 4500r/min |
| Top spindle power | 7.5kw | 11kw |
| Bottom spindle power | 5.5kw | 7.5kw |
| Feeding motor power | 2.2kw | 2.2kw |
| Lifting motor power | 0.37kw | 0.37kw |
| Suction tube diameter | Φ140mm*3 | |
| Dimension | 2700*1120*1680mm | 2700*1270*1680mm |
| Weight | 3300kg | 3500kg |
FAQs About Double Side Planer:
1. What is a Double Side Planer?
Answer: A Double Side Planer is a woodworking machine used to smooth and finish both sides of a workpiece simultaneously. It is designed for efficiency, as it reduces processing time compared to traditional planers. This machine is commonly used for furniture production and woodworking industries to achieve consistent thickness and surface quality.
2. What materials can be processed with a Double Side Planer?
Answer: Double Side Planers are primarily designed for processing wood materials, including hardwood, softwood, plywood, MDF, and particleboard. They can handle various thicknesses and are ideal for achieving smooth, uniform surfaces on both sides of the material.
3. How does a Double Side Planer work?
Answer: A Double Side Planer works by using two sets of rotating blades or knives to remove material from both sides of the workpiece at the same time. The material is fed into the machine, and as it passes through, the knives shave off excess wood to achieve the desired thickness and smoothness.
4. What are the key benefits of using a Double Side Planer?
Answer: The main benefits include increased productivity and efficiency, as both sides of the material are planed simultaneously. It also ensures consistent thickness and surface quality, reduces labor time, and minimizes the need for manual finishing. This makes it ideal for large-scale production and mass woodworking projects.
5. Is it difficult to maintain a Double Side Planer?
Answer: Maintenance of a Double Side Planer involves regular cleaning of the blades, lubricating moving parts, and ensuring the machine is free of debris. Blade sharpening or replacement is needed to maintain optimal performance. As long as proper maintenance routines are followed, the machine should remain in good working condition for long periods.
