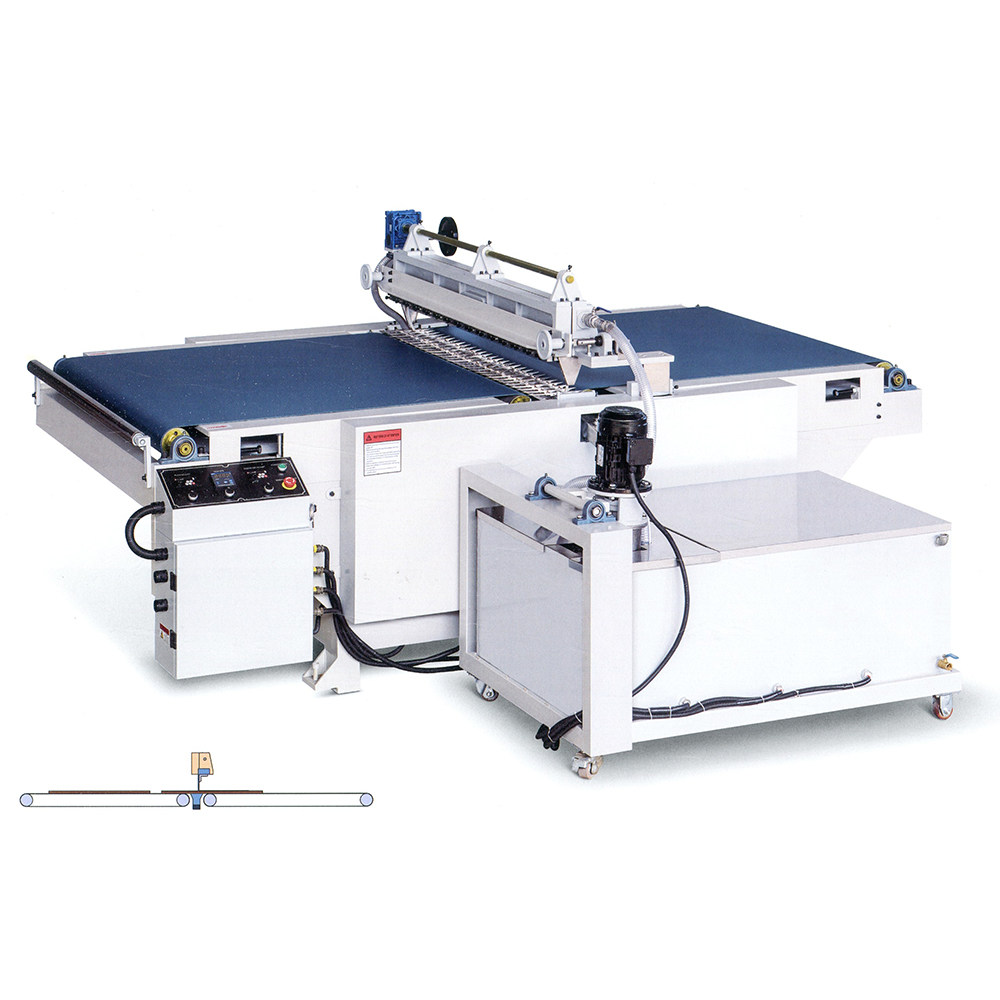

Curtain Coating Machine LZCC1300 China Woodworking Machine Manufacturer
This machine is used to coat the top of flat articles and makes the surface of paint smoothly and delicately, the coating thickness can be adjusted accurately, make sure the surface of paint uniform.
Equipped with circular device, redundant paint can recycle.
Description
Equipped with paint recycling system, and paint can be recycled and reduce the waste of paint. Conveyer belt is easy to clean with high quality polyester, resistant to various solvents such as acid and alkali. the conveying device has DC motor frequency conversion control, stepless frequency conversion speed regulation.
| Model | LZCC1300 |
| Max.Workpiece width | 1300mm |
| Feeding speed | 0-80m/min |
| Workpiece thickness | 2-60mm |
| Min. Workpiece length | 300mm |
| Feeding power | 3.7kw |
| Heating power | 5kw*2 |
| Total power | 13.7kw |
| Dimension | 6120*2100*1400mm |
| Net weight | 2300kg |
