Product Description

Core Veneer Splicing Machine feeds working piece, cut veneer, glues the edge of veneer, splices, sticks glue line and stacks veneer automatically.

Core Veneer Splicing Machine Characteristic:

1. This Veneer Splicing machine feeds working piece, cut veneer, glues the edge of veneer, splices, sticks glue line and stacks veneer automatically; it can be operated by one person

2. Sticking gluing line on the surface of veneer longitudinally to improve the toughness of whole veneer

3. With air-condition system to guarantee the glue line dry quickly and evenly on the surface of veneer

4. Machine body is channel steel structure

5. With conveyor under the machine to feed out the waste veneer

6. Automatic finished veneer feeding out system

7. PLC touch screen, the operation of machine is easy.

8. Schneider electrical component guarantee good working condition

9. PLC is Taiwan DELTA brand

10. Japanese OMRON brand photoelectric switches

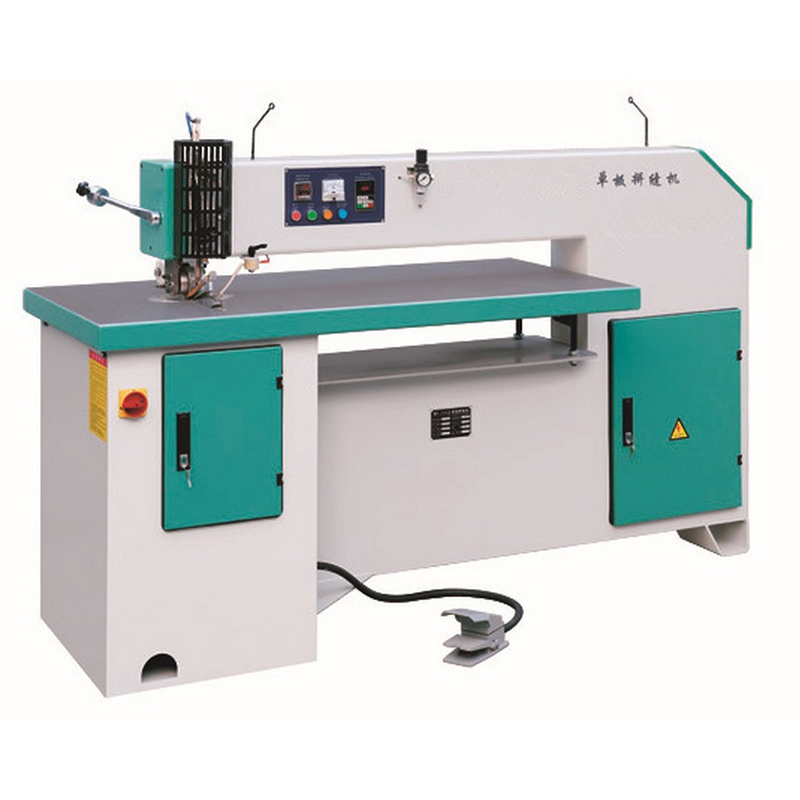

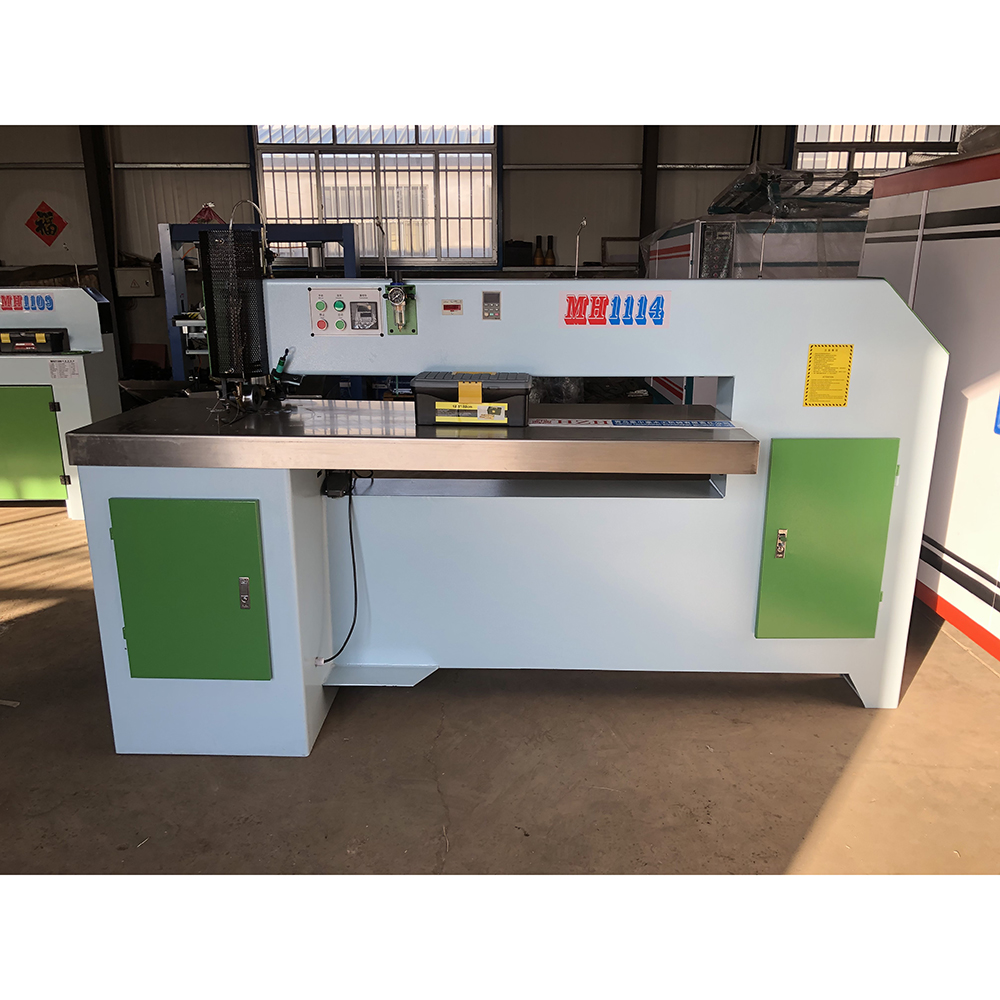

Core veneer splicing machine is a kind of woodworking machinery used to splice the core veneer. It is mainly composed of a splicing platform, a clamping device, a lifting device and a conveying device.

The splicing platform provides a flat surface for splicing the core veneer, and can be adjusted in height. The clamping device is used to fix the core veneer during splicing, and can be moved horizontally and vertically. The lifting device is used to lift the spliced core veneer after splicing, and the conveying device is used to convey the spliced core veneer to the next workstation.

In use, the operator firstly places the core veneer on the splicing platform, and then clamps it with the clamping device.

Then, the lifting device is used to lift the core veneer to the required height, and then the conveying device is used to convey it to the next workstation for further processing.
