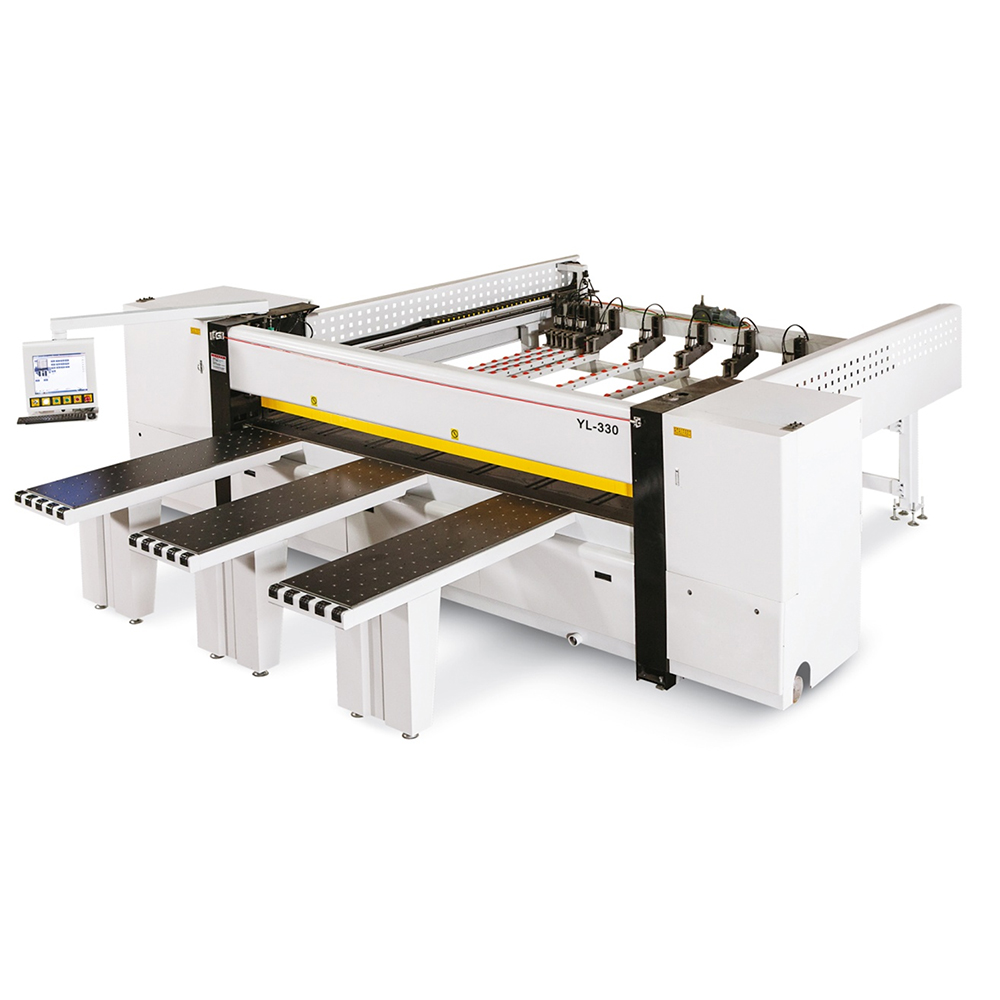

Computer Panel Saw China Woodworking Machine Manufacturer
Widely used in density board, particleboard, medium fiber board, gypsum board, artificial stone, plexus glass, large core board, light guide board, aluminum board, aluminum plastic board, circuit board, solid wood and other boards precision cutting.
Description
Mouse and keyboard operation Convenient and easy to learn High precision High stability. The operator can be employed with simple training without technicians. The machine moves quickly and efficiently. Controlled by PLC Windows operating system.
| Model | YZJ330 | YZJ380 |
| Cutting length | 3200mm | 3800mm |
| Working area | 3200*3200mm | 3800*3200mm |
| Maximum height of saw blade | 120mm Intelligent lifting | 120mm Intelligent lifting |
| Cutting thickness | 0-90mm | 0-90mm |
| Feeding speed | 0-80m/min | 0-80m/min |
| Cutting speed | 0-100m/min | 0-100m/min |
| Feeding manipulator power | 1.3KW servo motor | 1.3KW servo motor |
| Trolley traction motor power | 1.3KW servo motor | 1.3KW servo motor |
| Main saw power | 15KW aluminum alloy motor | 15KW aluminum alloy motor |
| scoring saw power (main and scoring saw separate structure) | 2.2KW | 2.2KW |
| Fan power | 2.2KW | 2.2KW |
| total power | 22KW | 22KW |
| Main saw diameter | 380mm/400mm | 380mm/400mm |
| Inner hole of main saw blade | 60mm | 60mm |
| Scoring saw diameter | 180mm | 180mm |
| Inner hole of scoring saw blade | 45mm | 45mm |
| Machine space | 5500*6500*1750mm | 6000*6500*1750mm |
