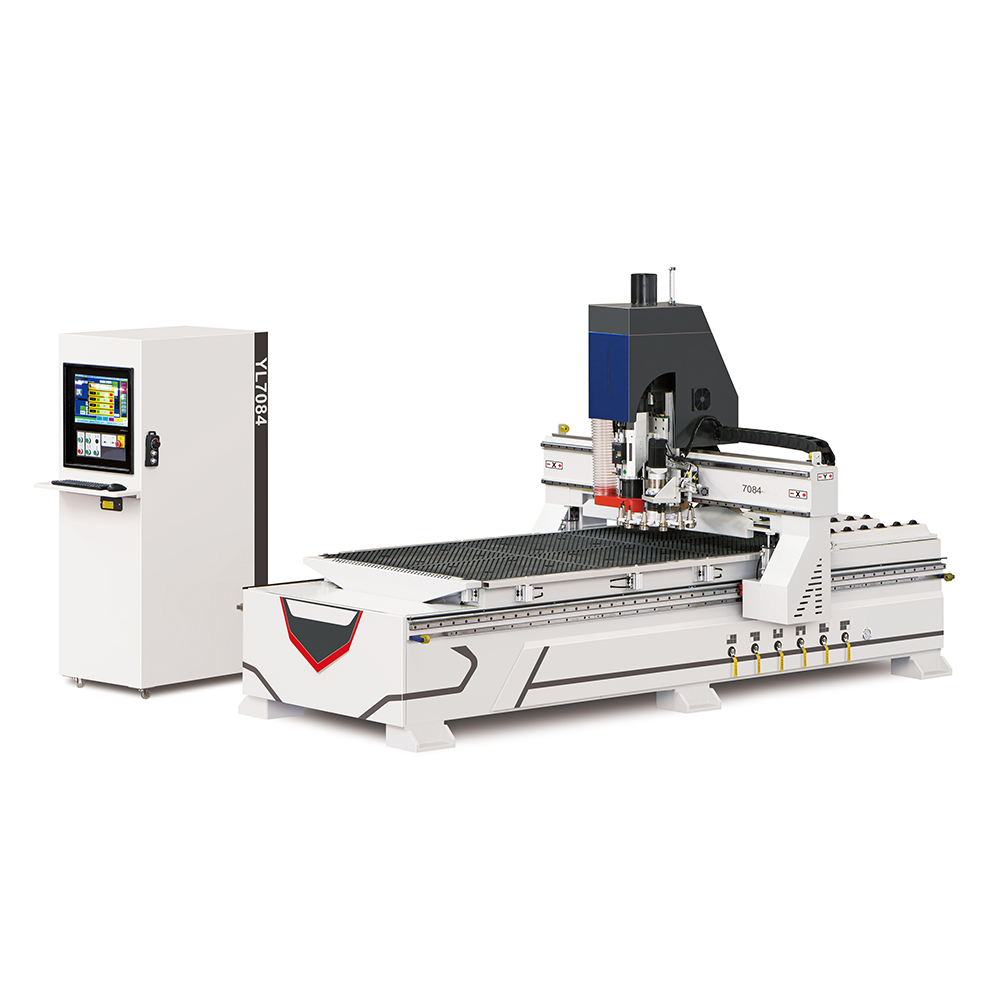

CNC Router YL7084SR China Woodworking Machine Manufacturer

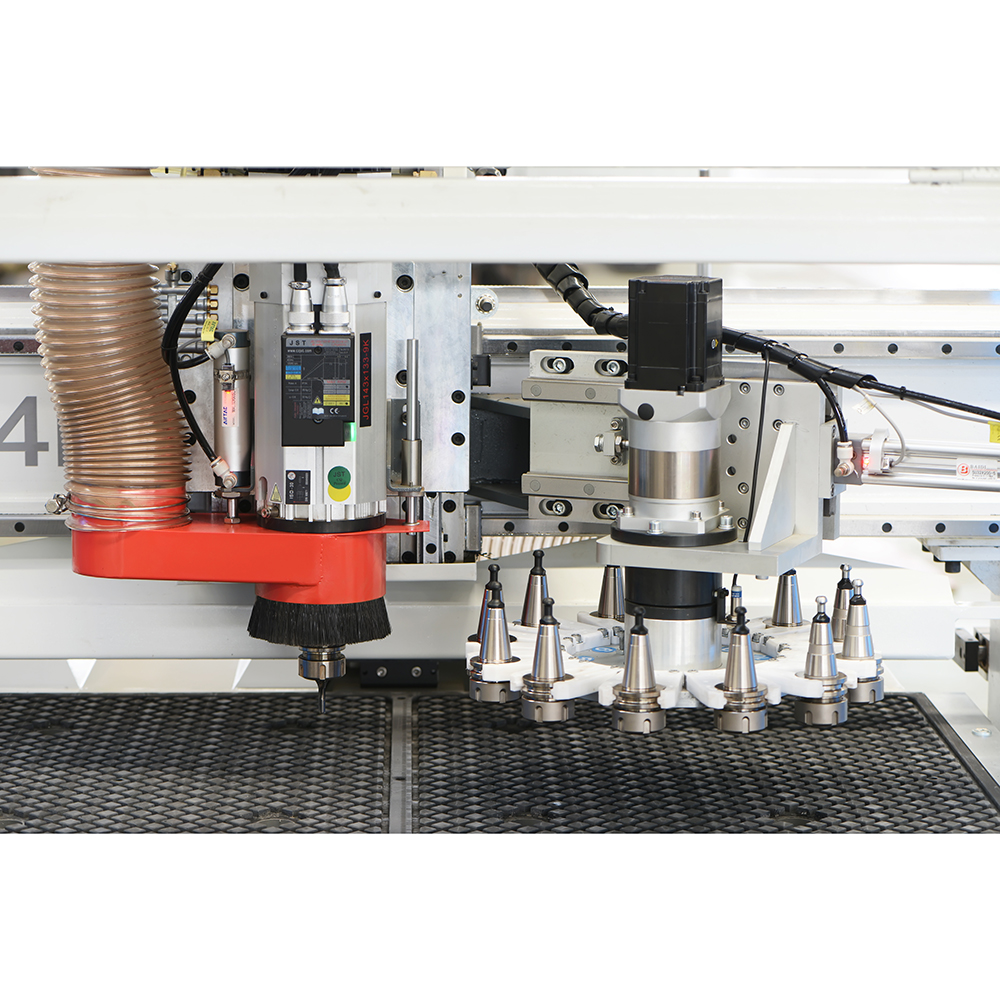

Use four spindle cylinder switching, cutting, drilling, guide edge and milling in one go, quick action, the knife changing process without interruption, to achieve automation.
Excellent components, the main control components are imported components with high stability performance.Equipped with world-leading operating control system and imported servo drive.
Description
The machine adopts vacuum adsorption table, which can strongly absorb materials of different areas, and can realize special-shaped cutting and small cutting perfectly.
All steel structure, industrial heavy bed design, high temperature tempering, natural aging, life – long deformation.
| Model | YL7084SR |
| Working Area（X、Y、Z axis） | 1300*2500*200mm |
| Machine Body | The bed lathe is made of thick square weld steel, which
ensures a more stable working table. |
| Worktable | Vacuum worktable |
| Spindle motor | 9kw water-cooling Spindle |
| Driving motor | 1.3kw*4, Yaskawa Servo Motor |
| Vacuum pump motor | 5.5kw Air cooling |
| Blade store | 12 blade tools |
| Tool Diameter | φ3.175-φ12.7mm |
| Max. Speed | 75m/min |
| Max. Cutting Speed | 25m/min |
| Control System | RichAuto DSP |
| Support software | VCarve, Artcam, Alphacam, Mastercam, Type3, UG, Caxa, JD
Paint etc. |
| Guide way | Taiwan linear rail for X、Y、Z axis |
| Transmission | Helical gear rack for X Y-axis, Screw for Z-axis |
| Working precision | ±0.05mm |
| Feature | Vacuum worktable can do quick work pieces feed in and feed
out. |
| Dimension | 3850*2600*2200mm |
| Weight | 1900kg |
