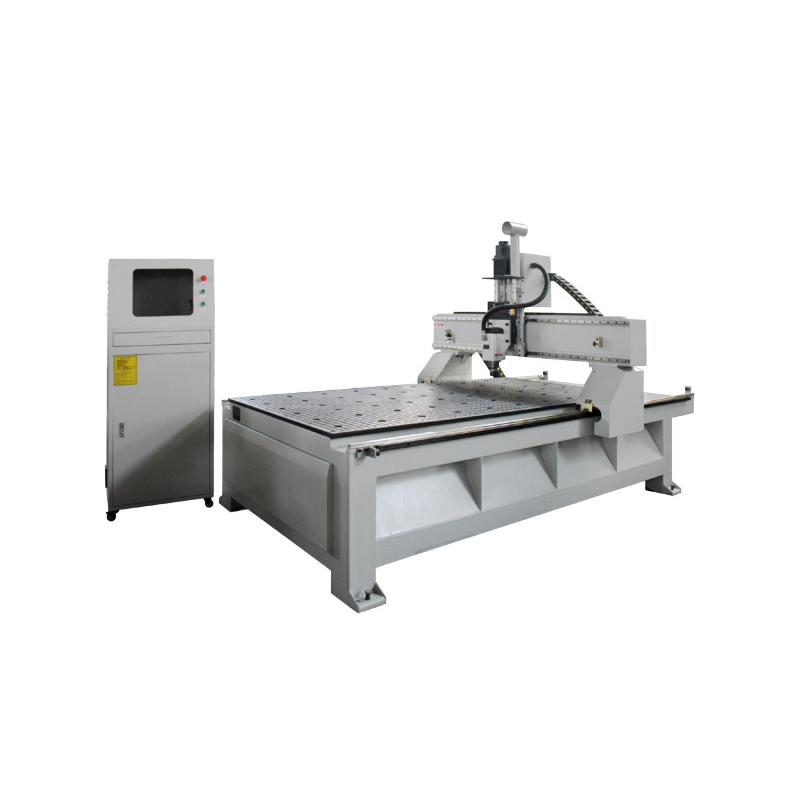

CNC Router HX1325KS China Woodworking Machine Manufacturer
With Ship-shaped machine body, improving the stability of the machine.
Description
With leakage structure design, clear the waste material timely, improve the ball screw & linear guide using –life under extremely harsh environment.
With thick square steel tube structure design, the machine is best choice for high speed & precision cutting, routing, engraving
Suitable for all kinds of materials processing, like solid wood, MDF, panel wood furniture, door, cabinet door WPC.
| Working Area（X、Y、Z axis） | 1300mm*2500mm*200mm |
| Machine Body | The bed lathe is made of thick square weld steel |
| Worktable | Vacuum worktable |
| Spindle motor | 4.5kw Water/Wind-cooling Spindle |
| Driving motor | Step Motor |
| Vacuum pump motor | 5.5kw Water cooled |
| Max. Speed | 1m/min—30m/min |
| Max. Cutting Speed | 15m/min |
| Tool | Ф3.175mm—Ф12.7mm； |
| Control System | DSP Control System or NC studio Control System |
| Software | Type3/ Artcam/ Ucancam/ Caxa/ Mastercam/ UG /JD |
| Guide way | Taiwan linear rail for X、Y、Z axis |
| Transmission | Helical gear rack for X Y-axis, Screw for Z-axis |
| Working precision | ±0.05mm |
| Feature | Vacuum worktable can do quick workpieces feed in and feed out. |
| Dimension | 3000*1900*1800mm |
