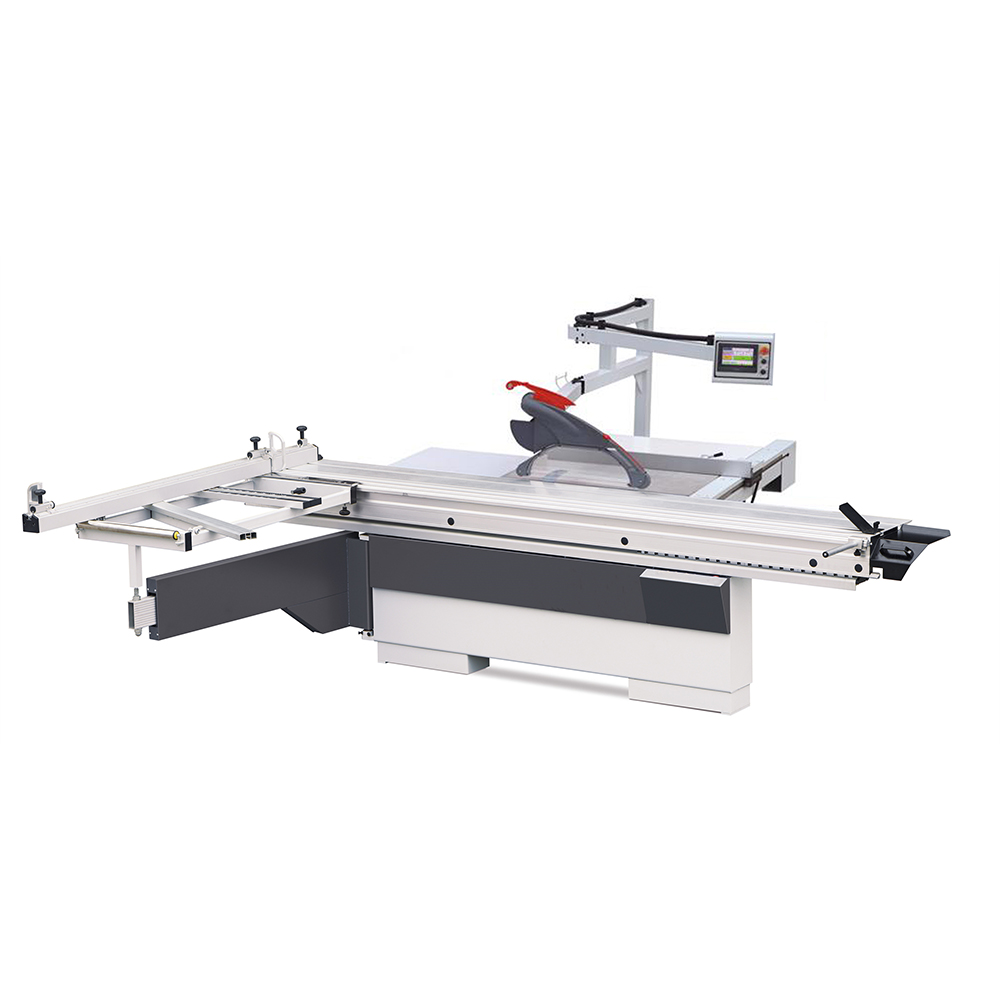

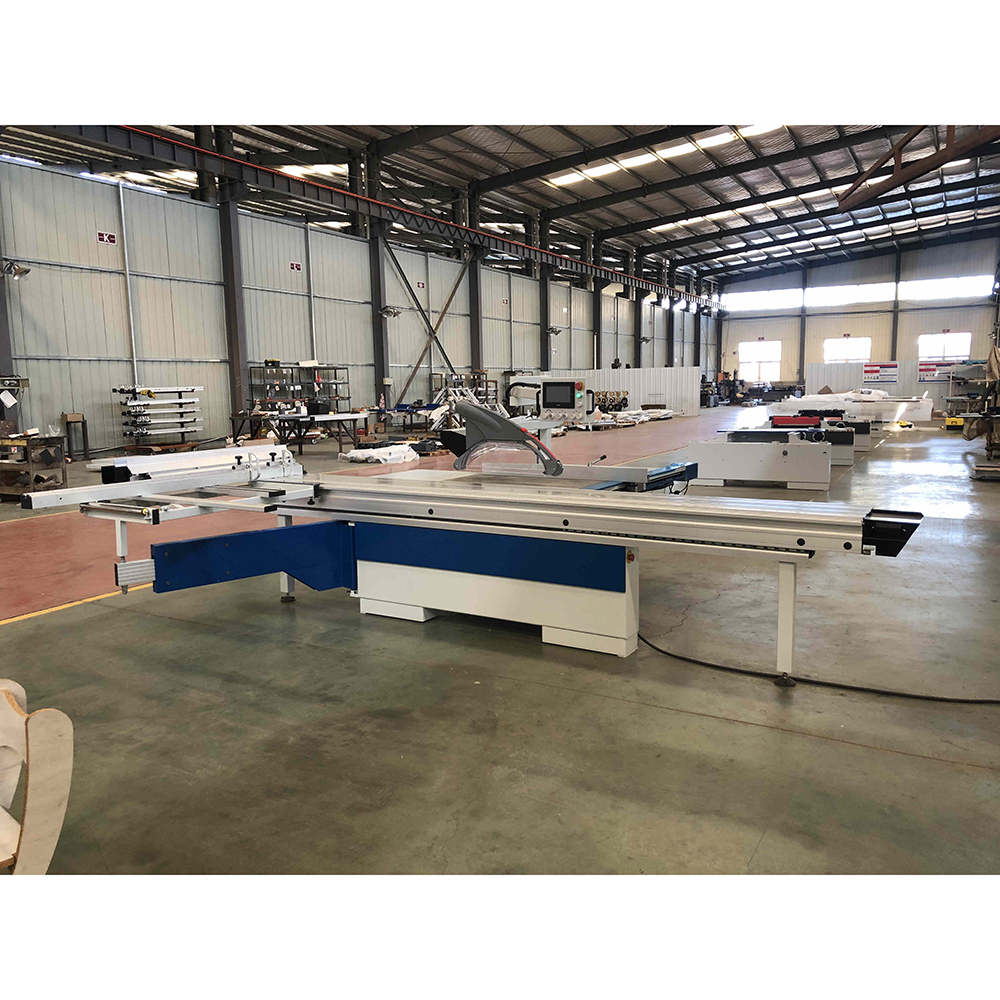

CNC Panel Saw F45-320EA China Woodworking Machine Manufacturer
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness.
Description

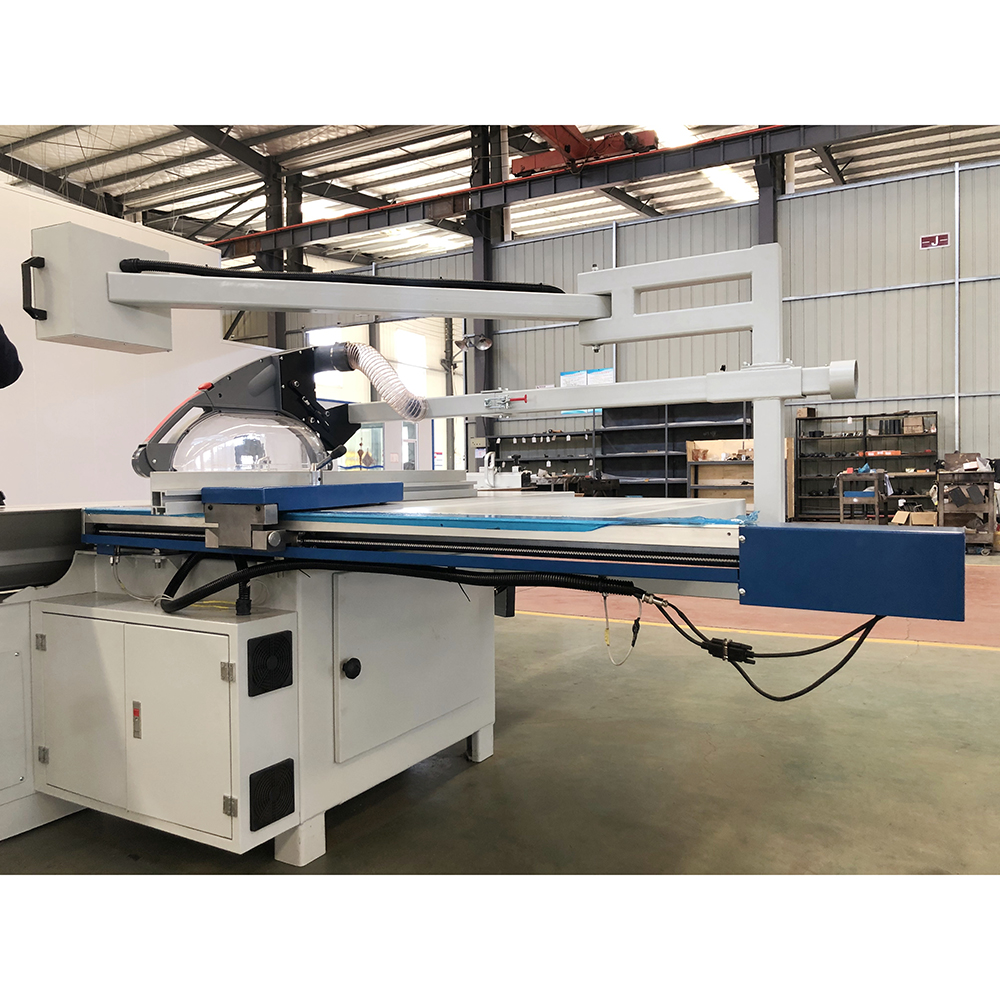

Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient.It is convincing to use the big dust hood with fluid mechanics optimization structure.
| Model | F45-320EA |
| Dimensions of sliding table | 3200*430mm |
| Max sawing thickness | 90mm |
| Power of main saw spindle | 5.5kw |
| Rotary speed of main saw spindle | 4400/5600r/min |
| Diameter of main saw | 350mm |
| Diameter of main saw spindle | 30mm |
| Power of grooving saw | 0.75kw |
| Rotary speed of grooving saw | 8500r/min |
| Diameter of grooving saw | 120mm |
| Diameter of grooving saw spindle | 22mm |
| Tilting saw blade | 45° |
| Dimension | 3200*1100*840mmm |
| Weight | 820kg |
